The answer isn't a single number, as the lifting capacity of a mini loader varies significantly based on its type, size, design, and specific features. Understanding the key specifications, particularly Rated Operating Capacity (ROC) and Tipping Load, is crucial for selecting the right machine for your project, ensuring both efficiency and safety.
This comprehensive guide will delve into the lifting capabilities of various mini loaders, explain the metrics used to define their strength, highlight factors influencing their performance, and even touch upon specific models like the ZG500 wheel loader to give you a clear picture of what these compact powerhouses can achieve.
Defining Lift Capacity: Key Metrics to Understand
When evaluating a mini loader's lifting power, you'll encounter a few important terms:
Rated Operating Capacity (ROC): This is the most common and critical specification for loaders. It represents the maximum weight the machine can safely lift and carry.
For Skid Steer Loaders (and mini skid steers): ROC is typically calculated as 50% of the Tipping Load (the weight at which the loader would begin to tip forward if the load were placed at the bucket's furthest point). This 50% rule is a safety measure to prevent instability.
For Compact Track Loaders (CTLs): ROC is usually calculated at 35% of the tipping load (SAE J818 standard) due to their enhanced stability from tracks. Some manufacturers might also provide a 50% ROC for CTLs for comparison, but the 35% figure is generally the one to focus on for safety.
For Articulated Wheel Loaders (including mini wheel loaders): ROC is often expressed as 50% of the full-turn static tipping load, meaning the machine is articulated (turned) to its maximum angle, which is the least stable position.
Tipping Load (or Tipping Capacity): This is the actual weight at which the loader will begin to tip over under specific conditions (e.g., on level ground, with an empty bucket, and the load at maximum reach). While higher tipping loads indicate greater potential, the ROC is the safe working limit you should always adhere to.
Lift Height: This specification indicates how high the bucket hinge pin can reach when the arms are fully extended. It's crucial for loading material into high-sided dump trucks, hoppers, or other elevated containers.
Breakout Force: While not a "lift" capacity, breakout force measures the digging power of the bucket at the hinge pin. A higher breakout force means the loader can break through tougher materials or lift a full bucket more effectively.
Mini Loader Lift Capacities by Type
Mini loaders encompass several categories, each with varying typical lift capacities:
1. Mini Skid Steer Loaders (Stand-On/Walk-Behind Loaders)
These are the most compact of the "mini" loaders, often stand-on units, designed for agility in very tight spaces.
Typical ROC Range: From 400 lbs to 1,600 lbs (approx. 180 kg to 725 kg).
Smaller models like the Ditch Witch SK600 might offer around 600 lbs (272 kg) ROC.
Mid-range models such as the Bobcat MT100 or Vermeer CTX100 commonly provide 1,000 lbs (454 kg) ROC. The Bobcat MT120 pushes this further with 1,200 lbs (544 kg) ROC.
Larger mini skid steers, like the Vermeer CTX160, can reach up to 1,600 lbs (725 kg) ROC.
Best For: Landscaping, fence installation, light demolition, small tree planting, moving mulch, gravel, or soil in residential areas or confined job sites. Their narrow width (often 36-42 inches) allows them to fit through gates and doorways.
2. Small Frame Skid Steer Loaders (Sit-In)
These are larger than mini skid steers but still considered "mini" in the broader context of heavy equipment. They are sit-in machines, either wheeled or tracked (CTLs).
Typical ROC Range: From 1,200 lbs to 2,200 lbs (approx. 544 kg to 998 kg).
An entry-level small frame wheeled skid steer might start around 1,200-1,500 lbs (544-680 kg) ROC.
Small frame compact track loaders often have ROCs starting from around 1,500 lbs (680 kg), like the Bobcat T450 with 1,490 lbs ROC, or the ASV RT-50 with 1,400 lbs ROC.
Best For: Residential construction, larger landscaping projects, light agricultural tasks, utility work, and general material handling where more power than a mini skid steer is needed but space is still a consideration.

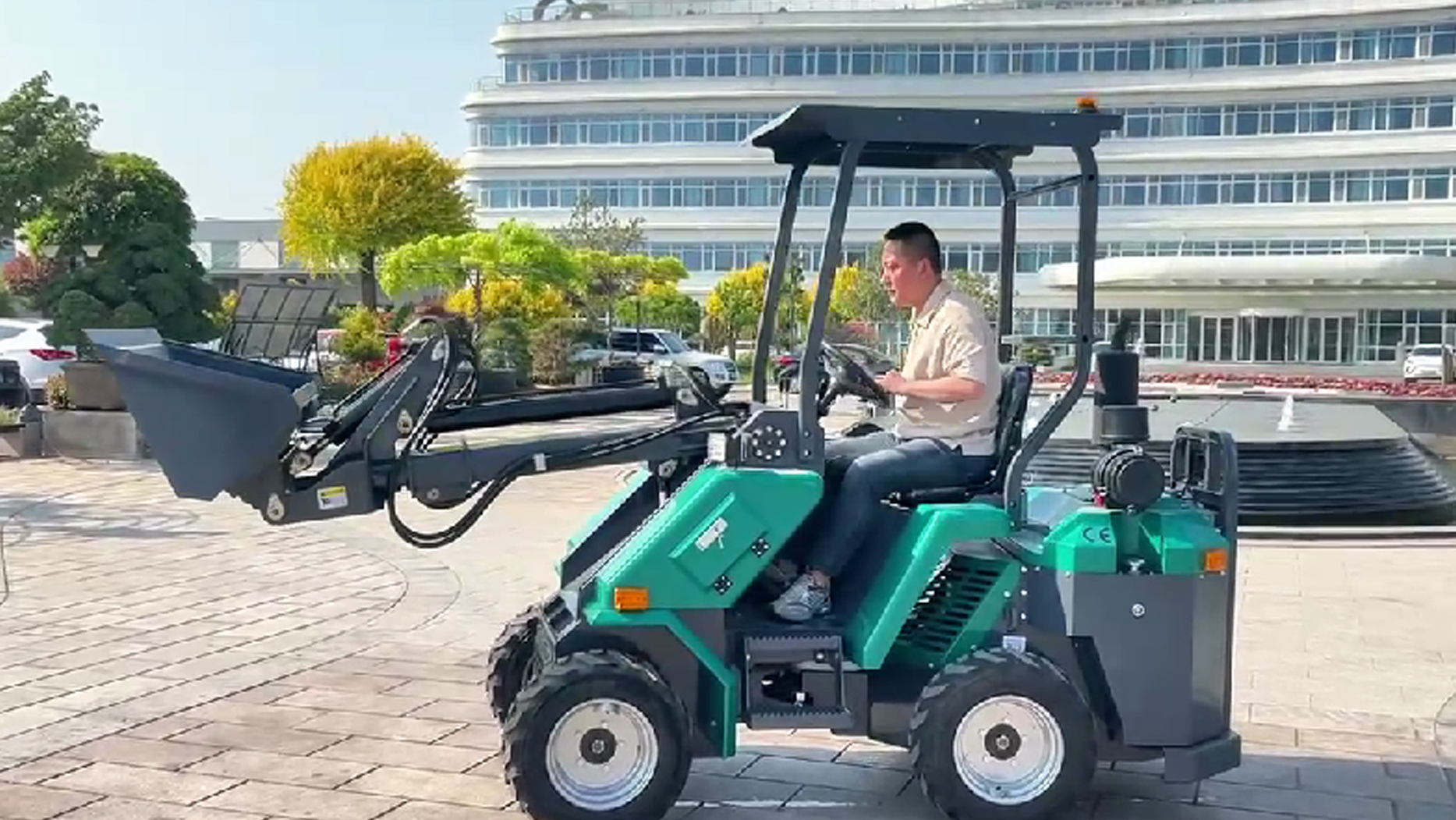

3. Mini Wheel Loaders / Articulated Wheel Loaders
These are smaller versions of full-size wheel loaders, often articulated in the middle for improved maneuverability and reduced turf disturbance.
Typical ROC Range: From 1,000 lbs to 5,000 lbs (approx. 450 kg to 2,270 kg) or more, depending on the model and specific design (e.g., standard lift vs. X-Tra lift).
Smaller models, like the Giant G1500, can have a tipping load of around 2,293 lbs (1,040 kg), translating to a ROC of roughly 1,146 lbs (520 kg).
The Bobcat L28 articulated loader has a rated operating capacity of 1,534 lbs (695 kg) in a straight position.
Larger mini wheel loaders, like the Giant G5000 X-Tra, can have significantly higher tipping loads, offering ROCs upwards of 4,500 lbs (2,040 kg) or more, especially with specific boom configurations designed for higher lift capacity.
For a specific example like the ZG500 wheel loader, its lift capacity would depend on its specific design and manufacturer's specifications. Typically, a wheel loader in the "mini" class might have a rated load capacity ranging from 0.5 to 2.5 tons (1,100 to 5,500 lbs). A model like the ZG500 wheel loader would likely fall within the mid-to-higher end of this mini wheel loader range, potentially offering a rated load of around 1.5 to 2.5 tons (3,300 to 5,500 lbs) or even more for heavier-duty compact models, making it suitable for significant material handling. It's crucial to consult the ZG500's specific technical data sheet for its exact Rated Operating Capacity and Tipping Load
Best For: Moving large volumes of loose material (sand, gravel, soil), snow removal, agricultural feed handling, and general construction site cleanup where high dump height and continuous loading are required, especially in areas where articulation is beneficial for turning and minimizing ground damage.
Factors Influencing a Mini Loader's Actual Lift Performance
Beyond the published ROC, several real-world factors can affect how much a mini loader can safely and effectively lift:
Attachment Weight: The ROC includes the weight of the standard bucket. If you attach a heavier implement (e.g., a grapple, hydraulic hammer, or specific fork attachment), the actual usable lift capacity for your material will decrease. Always subtract the attachment's weight from the machine's ROC to determine net lift capability.
Load Center: The further the load is from the machine's front axle (or pivot point), the less it can lift. Heavy, concentrated loads placed close to the machine's front are more stable than lighter, extended loads.
Terrain and Grade: Operating on uneven, soft, or sloping ground significantly reduces stability and, consequently, safe lifting capacity. Always operate on level, firm ground when lifting heavy loads.
Machine Condition: Worn tires, tracks, undercarriage components, or hydraulic systems can all negatively impact a mini loader's stability and lifting performance. Regular maintenance is crucial.
Operator Skill: Experienced operators understand the limits of their machine and can safely maximize its capabilities. Inexperienced operators should always err on the side of caution.
Counterweights: Some mini loaders can be fitted with optional rear counterweights to increase their tipping load and, thus, their ROC. This is a common upgrade for tasks requiring maximum lift.
Lift Path: Loaders typically come with either radial lift or vertical lift paths.
Radial Lift: The loader arms move in an arc, offering maximum reach at mid-height. They are often preferred for digging and excavating applications.
Vertical Lift: The loader arms move more vertically, keeping the load closer to the machine throughout the lift cycle. This design typically offers higher lifting capacity at full height and better reach into dump trucks. If your primary task is lifting and loading, a vertical lift mini loader is often the better choice for maximizing lift capacity at height.
Why Does Lift Capacity Matter?
Safety: Overloading a mini loader is extremely dangerous, leading to tipping, loss of control, structural damage, and serious injury. Always know your machine's ROC and never exceed it.
Efficiency: Matching the loader's capacity to the material you need to move ensures you can complete tasks quickly and efficiently without making multiple trips or straining the machine.
Productivity: The right lift capacity means you can handle the job without resorting to manual labor or renting a larger, more expensive machine than necessary.
Longevity: Operating a mini loader within its rated capacity reduces wear and tear on the hydraulic system, engine, and structural components, extending the machine's overall lifespan.
Finding the Right Mini Loader for Your Lifting Needs
To determine "How much can a mini loader lift?" for your specific requirements, consider these steps:
Identify Your Heaviest Material: What is the maximum weight of material you anticipate needing to lift regularly (e.g., a pallet of pavers, a specific type of soil, a large rock)?
Consider the Application: Are you primarily digging, carrying, or loading? This influences whether breakout force or lift height is more critical.
Evaluate Your Site: Are you working in confined spaces, on uneven terrain, or indoors/outdoors?
Consult Specifications: Always check the manufacturer's ROC (Rated Operating Capacity) for any mini loader you are considering. For models like the ZG500 wheel loader, ensure you obtain its official specifications to verify its exact lifting capabilities.
Account for Attachments: Remember to factor in the weight of any attachments you plan to use.
By understanding these nuances, you can confidently select a mini loader that possesses the precise lifting power required to tackle your toughest tasks, ensuring both safety and optimal productivity on every job site.
