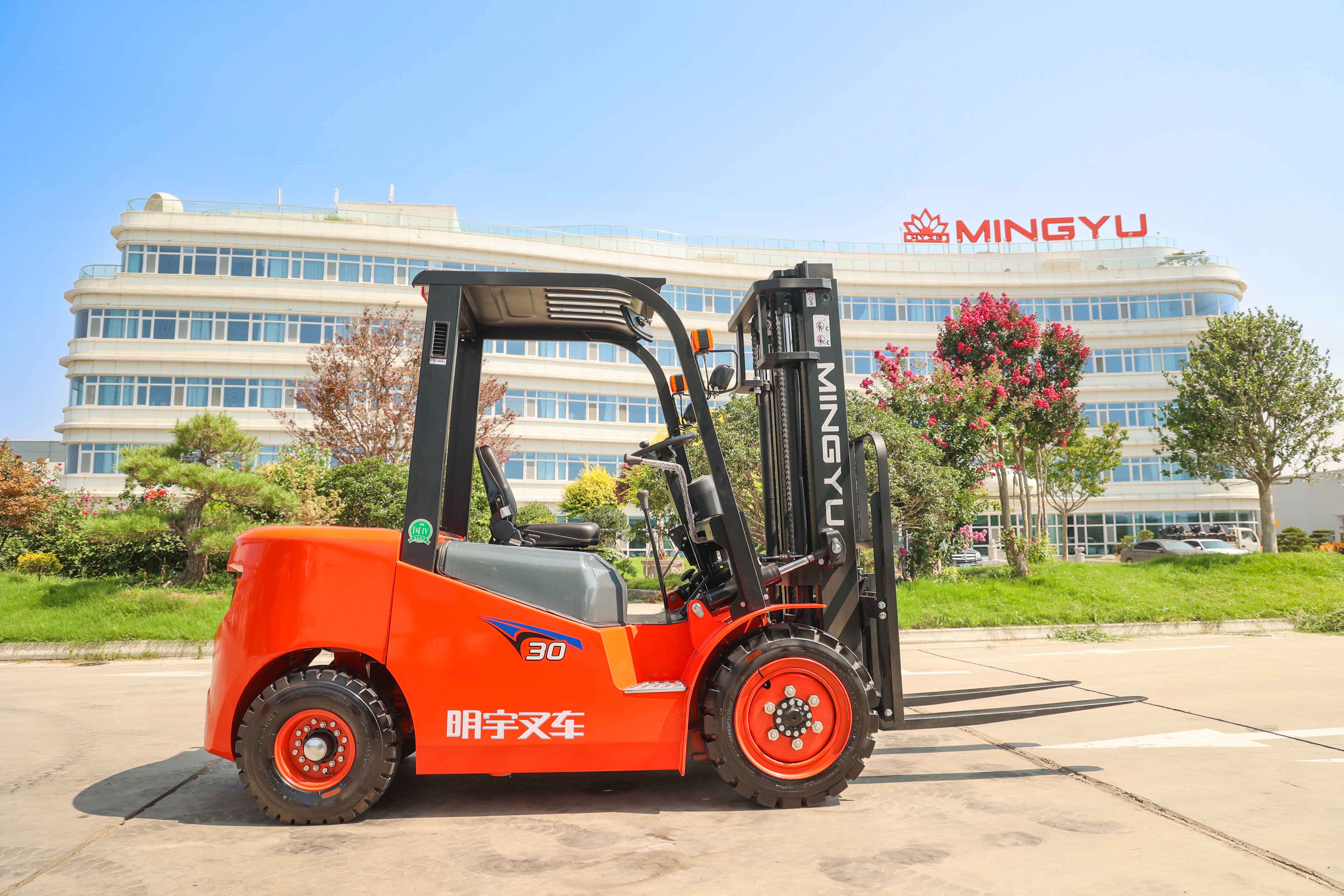

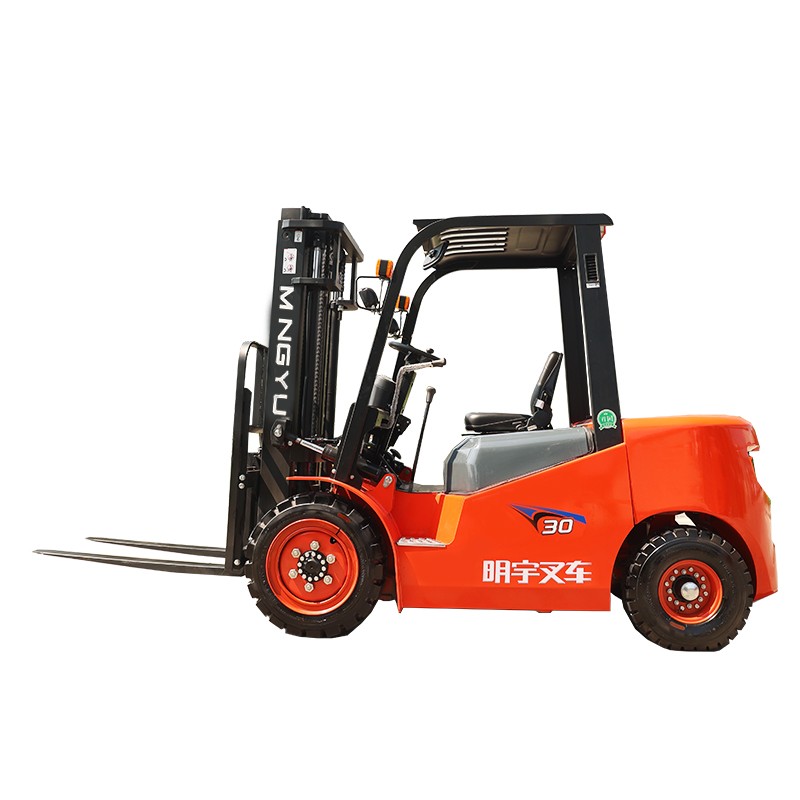

CPC30-k diesel forklift
OVERVIEW
The k2 series is a series of forklifts of Mingyu based on the advanced technology through comprehensive upgrading of the exterior design, green and energy efficiency, safety and reliability, comfort and convenience. The forklifts have greatly improved performance, capable of meeting your all-round needs.
Key highlights
~ Adopt technologys that superior to Toyota,The LED lighting system is provided in the entire forklift, which can save energy and power and greatly improve the performance and service life of lights.
~ The semi-enclosed instrument console make the entire forklift look compact and stylish.
~ Enlarged boarding step space allows more convenience for boarding.
~The wide-open hood, increasing maintenance space by 10%.
~The optimized heat dissipation system,improved counterweight heatdissipation channel and reduced windresistance of the radiator enable thecooling efficiency to rise by 10%
~Large-screen LED instrument newlydeveloped. which can completely displayinformation such as the running statusof the vehicle, fault detection andmaintenance reminder in front of thedriver more intuitively and can improvethe convenience of maintenance
Parameter
Mitsbishi / Isuzu/Cummins
Model
CPC(D)30K
Power Type
diesel
rated load lifting capacity
3000kg
Load centre distance
500mm
driving style
Sit down
length
with fork
3925mm
without fork
2850mm
wideth
1225mm
height
Do not raise the mast height
2140mm
Overhead guard height
2110mm
Max height at working
4262mm
Distance from seat surface to top guard frame
970mm
wheel base
1810mm
front overhang
441mm
rear overhang
549mm
front wheel track
1000mm
rear wheel track
980mm
minimum ground clearance
165mm
Standard lifting height
3000mm
free lifting height
65mm
Fork adjustment range
260-1100mm
minimum turning radius
2520mm
Minimum right-angle channel width(1100*1100 pallets)
4277mm
Gantry angle (front/rear)
6/12°
Maximum lifting speed without load
480mm/s
Maximum lifting speed with full load
440mm/s
Maximum operating speed without load
20Km/h
Maximum operating speed with full load
20Km/h
Max gradeability with full loading
20%
Weight unladen
4190Kg
Number of wheels = driving wheels/steering wheels
2/2
Tyre type (front/rear)
Pneumatic tyre/pneumatic tyre
tyre size(front)
28x9-15
tyre size(rear)
6.50-10
Brake/driving brake
Foot Brake
parking brake
Hand Brake
Engine
rated power
39/40kw
Oil pump motor power
2650r/min
fork length
1220mm
●Environmental Friendly
- The emission meets EC and EPA new regulation.
- High efficiency hydraulic system to lower the fuel consumption.
- Using environmental friendly material.
- Damping device on the mast to reduce impact and vibration.
- Sound insulating and absorbing device are used to reduce the noise.
● Ergonomics design
- Using power braking system to reduce footplate strength.
- Control lever right located to effectively reduce drivers arm tiredness.
- Dual combined switch lever as a car to enable easy operating.
- Wide mast with good visibility.
- Wide space for boarding and driving , increasing leg space.
- Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off.
According to demands, can be matched with different accessories

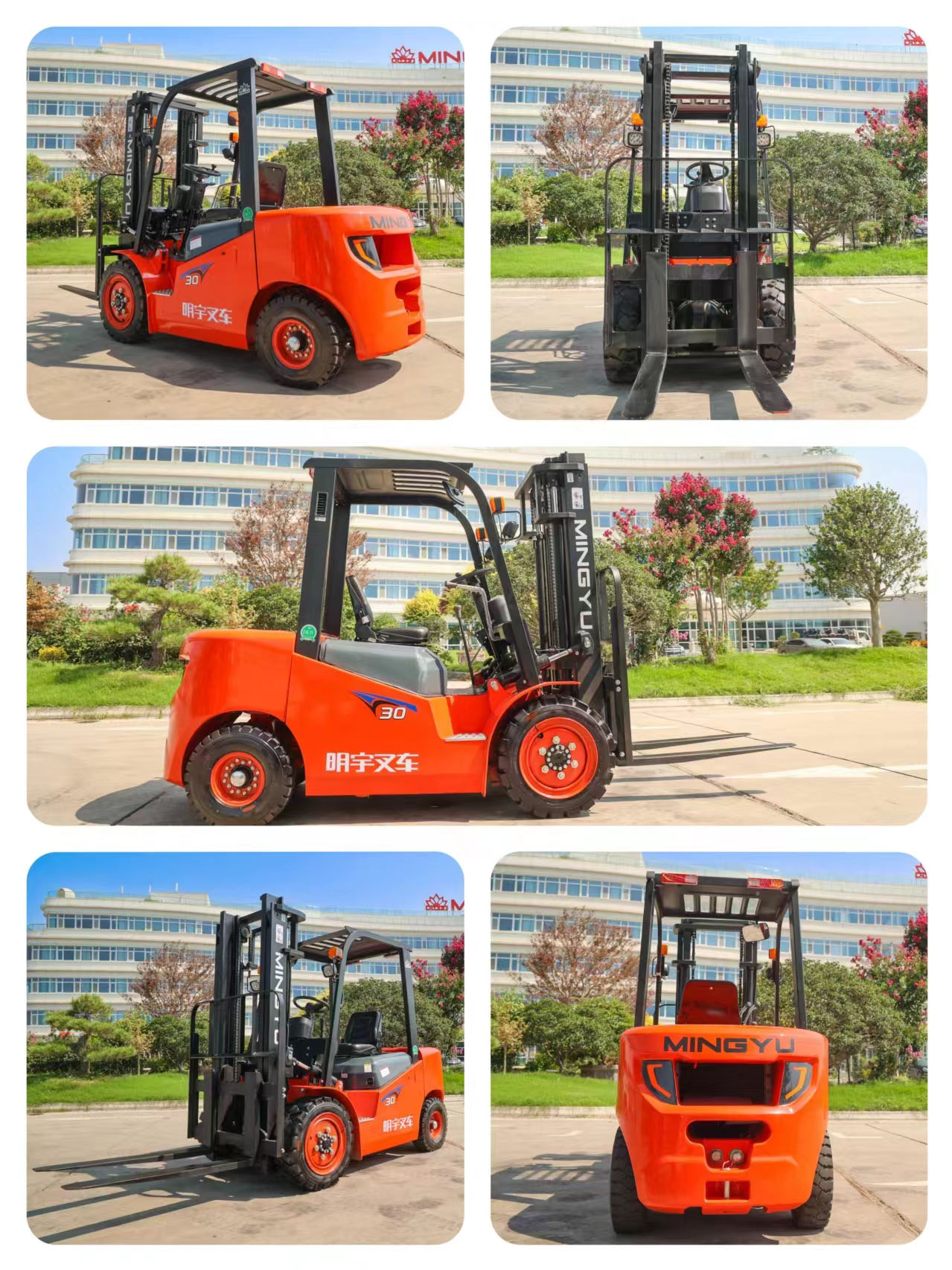

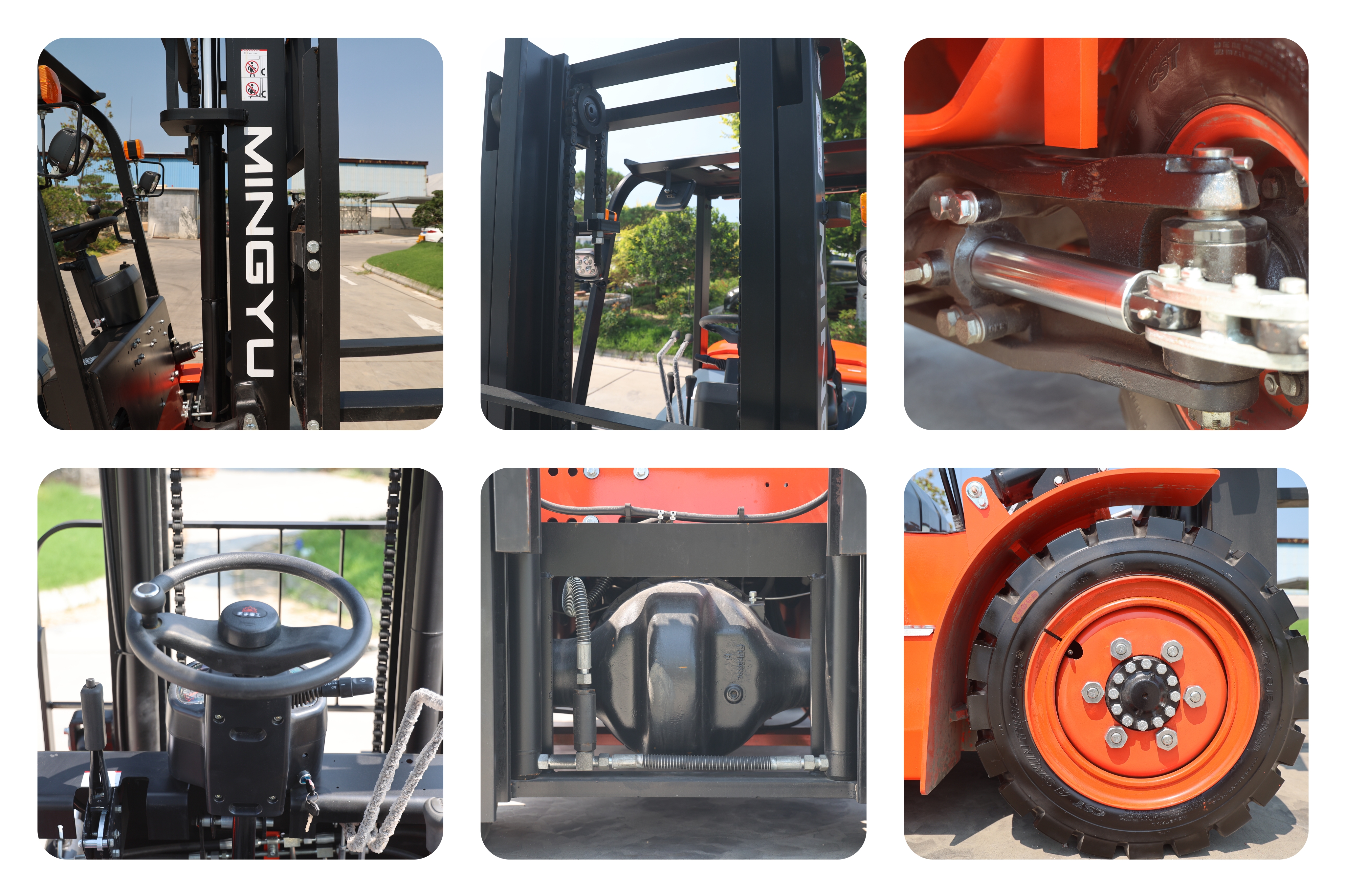

Detail

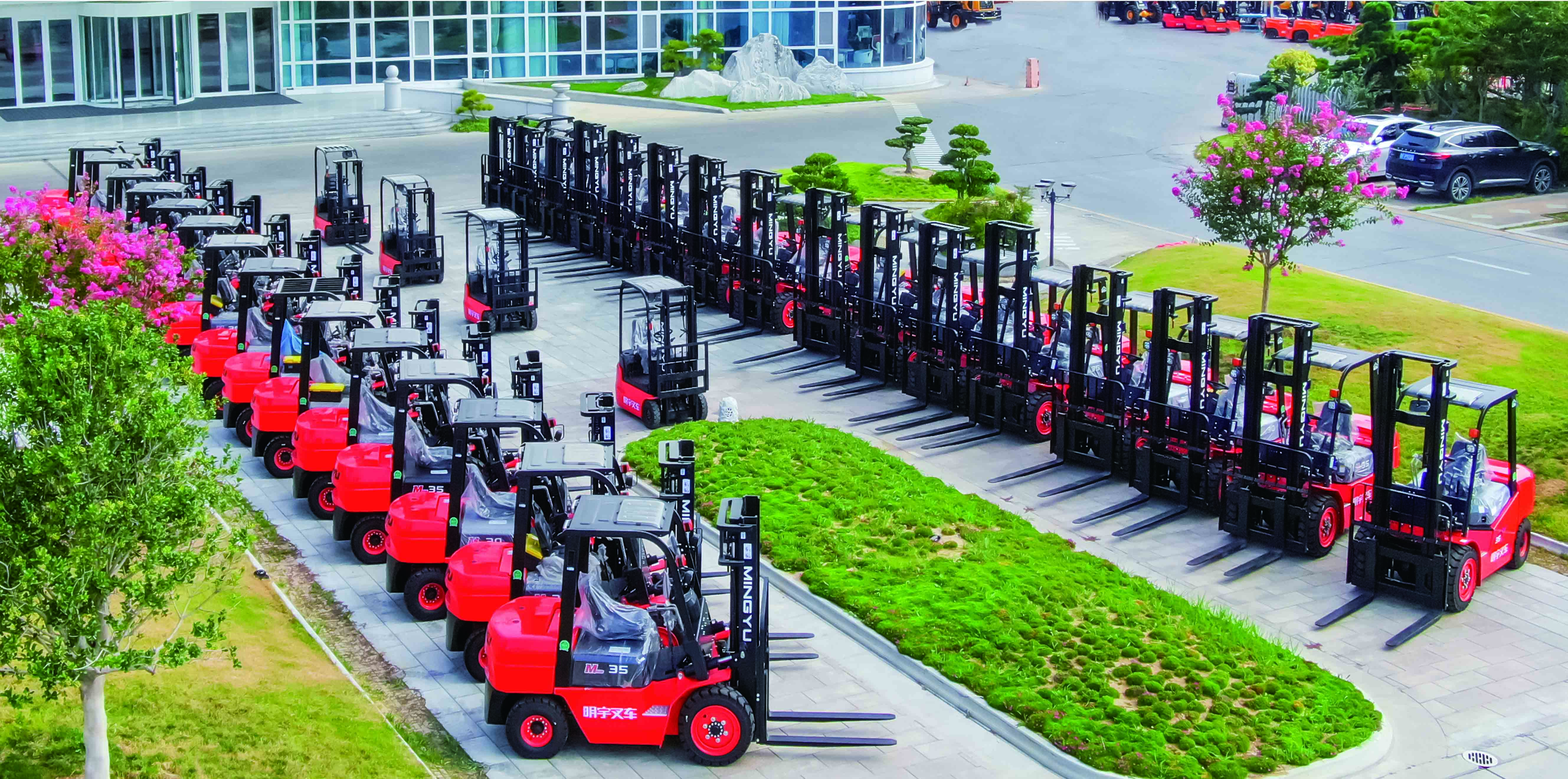

About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
