B30D electric forklift

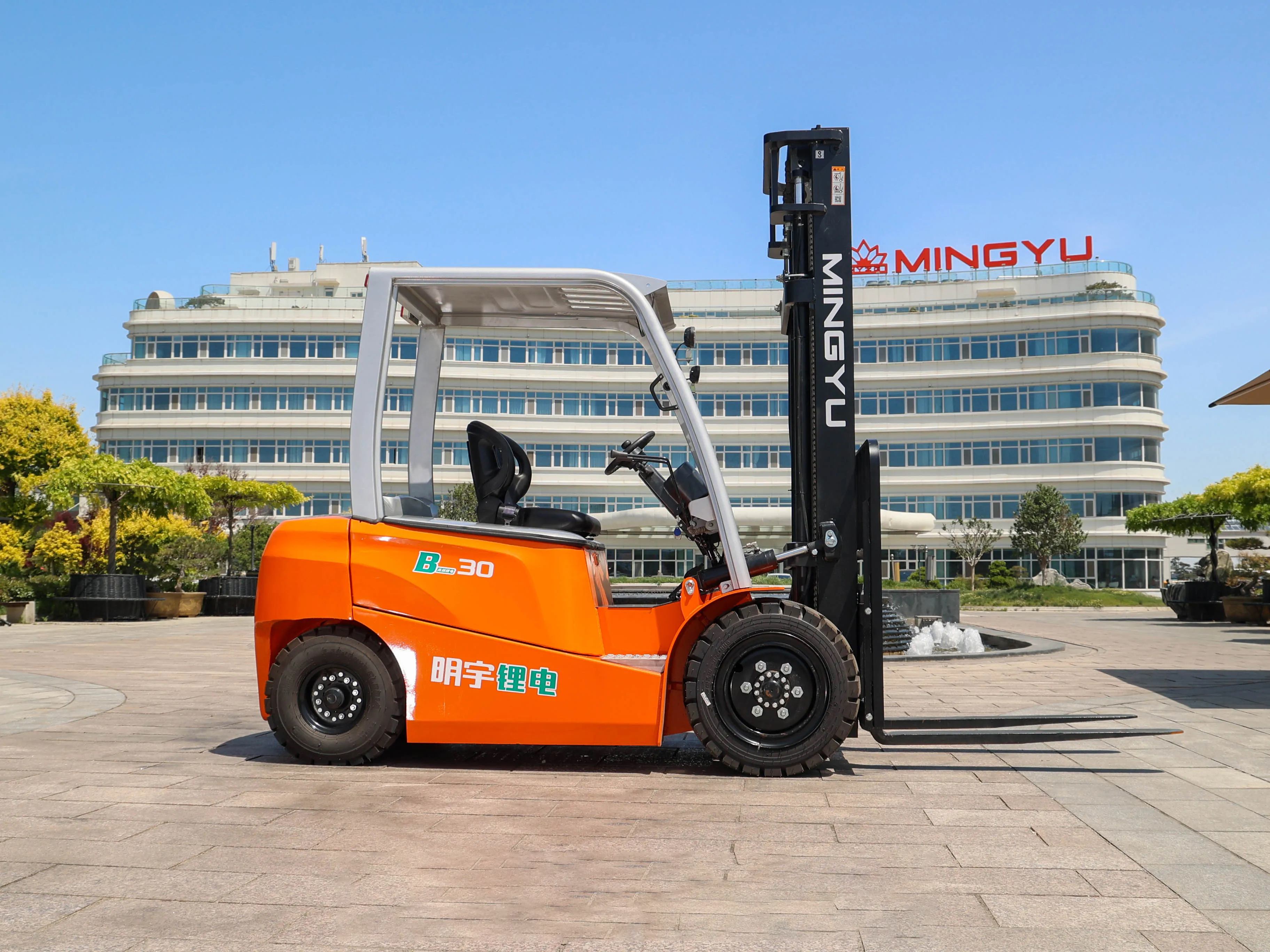

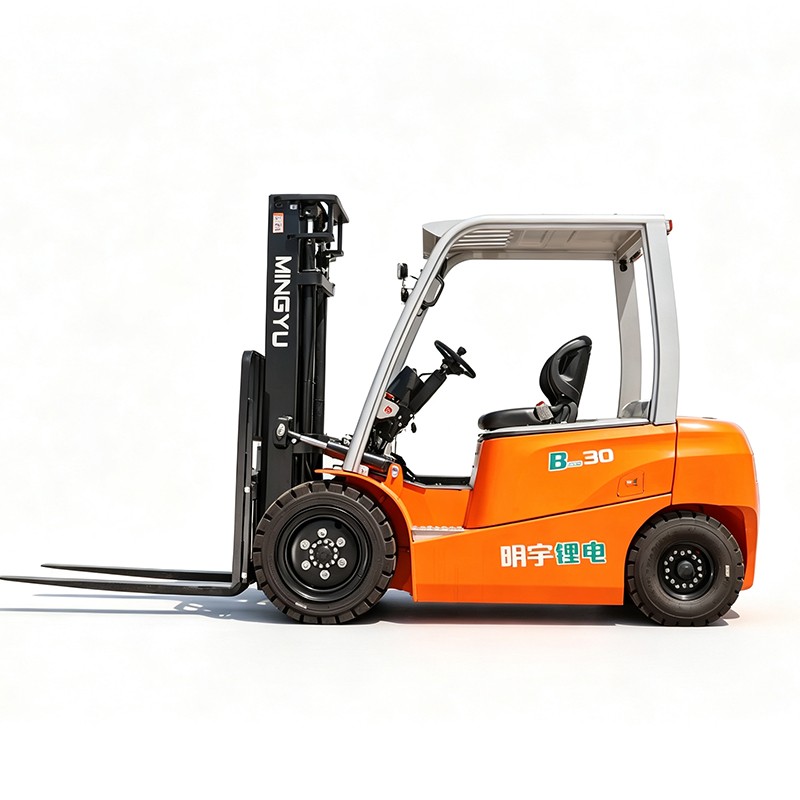

MYZG B30D (CPD30D) 3-Ton Sit-Down Electric Forklift Truck (80V / 200Ah)
High-Performance Indoor & Outdoor Material Handling: 3000kg Lifting Capacity, Powerful 18kW Drive Motor, 23kW Hydraulic Motor, and Heavy-Duty Dual AC Drive System.
Executive Overview: Heavy-Duty, Zero-Emission 3-Ton Electric Forklift Innovation
The MYZG B30D (CPD30D) 3-Ton Electric Forklift engineered by Mingyu Heavy Industry (MYZG) delivers internal combustion performance with all the economic and environmental benefits of clean electric battery power. Built for high-intensity logistics, manufacturing, warehousing, and yard loading operations, the B30D provides high productivity, low energy consumption, and maximum operator ergonomics.
Driven by a high-capacity 80V / 200Ah battery system, the B30D pairs a high-torque 18 kW drive motor with a robust 23 kW oil pump motor. Offering a rated lifting capacity of 3000 kg at a 500 mm load center, a top operating speed of 15 km/h, a rapid 380 mm/s lifting speed, and 15% full-load gradeability, this electric forklift outperforms standard electric trucks while maintaining zero tailpipe emissions.
MYZG B30D (CPD30D) Factory Technical Specifications
Review the comprehensive engineering specifications and operational data for the MYZG B30D (CPD30D) 3-Ton Electric Forklift:
| Technical Parameter | Factory Specification Detail |
|---|---|
| Model Identification | B30D (CPD30D) |
| Power Type / Power Source | Accumulator / Battery Powered (Electric) |
| Battery Voltage & Capacity | 80V / 200Ah |
| Rated Load Lifting Capacity | 3000 kg (3.0 Tons) |
| Load Centre Distance | 500 mm |
| Driving Style | Sit-down Type |
| Drive Motor Power | 18 kW |
| Oil Pump Motor Power | 23 kW |
| Overall Length (With Fork / Without Fork) | 3757 mm / 2682 mm |
| Overall Width | 1232 mm |
| Mast Height (Lowered / Max Working) | 2062 mm / 4183 mm |
| Overhead Guard Height | 2105 mm |
| Distance Seat Surface to Overhead Guard | 980 mm |
| Standard Lifting Height & Free Lift Height | 3000 mm / 45 mm |
| Fork Adjustment Range | 260 – 1100 mm |
| Wheelbase | 1780 mm |
| Front / Rear Overhang | 455 mm / 464 mm |
| Front / Rear Wheel Track | 1005 mm / 988 mm |
| Minimum Ground Clearance | 127 mm |
| Minimum Turning Radius | 2450 mm |
| Min. Right-Angle Aisle Width (1100×1100 Pallet) | 4205 mm |
| Gantry / Mast Tilt Angle (Front / Rear) | 6° / 12° |
| Max. Lifting Speed (Without Load / Full Load) | 380 mm/s / 300 mm/s |
| Max. Travel Speed (Without Load / Full Load) | 15 km/h / 14 km/h |
| Max. Gradeability (With Full Load) | 15% |
| Unladen Total Weight | 4450 kg |
| Wheels Count (Driving / Steering) | 2 / 2 |
| Tyre Type (Front / Rear) | Pneumatic Tyre / Pneumatic Tyre |
| Tyre Size (Front / Rear) | 28*9-15 / 6.50-10 |
| Brake Systems (Driving / Parking) | Foot Brake / Hand Brake |
Engineering Breakdown & Key Product Advantages
1. High-Power 18kW Drive Motor & 23kW Oil Pump Motor System
The MYZG B30D is built around a heavy-duty dual-motor electrical architecture featuring an 18 kW high-torque drive motor and a powerful 23 kW oil pump motor. Powered by an 80V / 200Ah battery system, this setup yields immediate acceleration and rapid hydraulic response, allowing the forklift to reach travel speeds up to 15 km/h and lift full 3-ton loads at 300 mm/s (380 mm/s unladen).
2. 3000kg Heavy Lifting Capacity & 15% Full-Load Gradeability
Designed to match the stamina of diesel counterparts, the B30D boasts a rated load capacity of 3000 kg at a 500 mm load center. With an impressive 15% full-load gradeability, this forklift effortlessly navigates warehouse ramps, loading docks, and sloped factory access driveways without loss of power or torque.
3. Tight 2450mm Turning Radius & Wide Fork Adjustment Range
Maneuverability in narrow warehouse aisles is a critical feature. The B30D boasts a minimum turning radius of 2450 mm and requires a right-angle stacking aisle width of only 4205 mm for standard 1100×1100 mm pallets. Featuring a 260 mm to 1100 mm fork adjustment range and a mast tilt angle of 6° front / 12° rear, operators can load and unload palletized cargo with high precision.
Target Application Environments
The clean, zero-emission electric powertrain and rugged pneumatic-tire chassis enable the B30D to bridge indoor warehousing and outdoor logistics:
Indoor Warehousing & Cold Storage
Stacking pallets in food, pharmaceutical, and high-density logistics centers requiring zero emissions and low noise.
Manufacturing & Heavy Assembly
Transporting raw materials, heavy machinery components, and finished goods across factory floor areas.
Outdoor Freight Yards & Dock Loading
Pneumatic tires and 15% gradeability allow fast container truck loading/unloading on outdoor tarmac and gravel yards.
According to demands, can be matched with different accessories
Frequently Asked Questions (FAQ)
Q: What is the load capacity and battery voltage of the MYZG B30D forklift?
A: The MYZG B30D (CPD30D) offers a 3000 kg (3.0 ton) rated load capacity at a 500 mm load center, powered by an 80V / 200Ah battery system.
Q: What motor power system does the B30D electric forklift use?
A: The B30D is equipped with an 18 kW drive motor for smooth travel up to 15 km/h and a high-capacity 23 kW oil pump motor for quick 380 mm/s lifting speed.
Q: Can the B30D electric forklift operate outdoors and on sloped ramps?
A: Yes, thanks to heavy-duty pneumatic tires (28*9-15 front / 6.50-10 rear), 127 mm ground clearance, and 15% full-load gradeability, the B30D handles outdoor yards and warehouse ramps with ease.
Request a Direct Factory Wholesale Quote on the MYZG B30D Electric Forklift!
Contact MYZG Machinery today for direct factory pricing, lithium battery upgrade options, custom mast height options (up to 6m), side-shifters, and international container shipping quotes!
