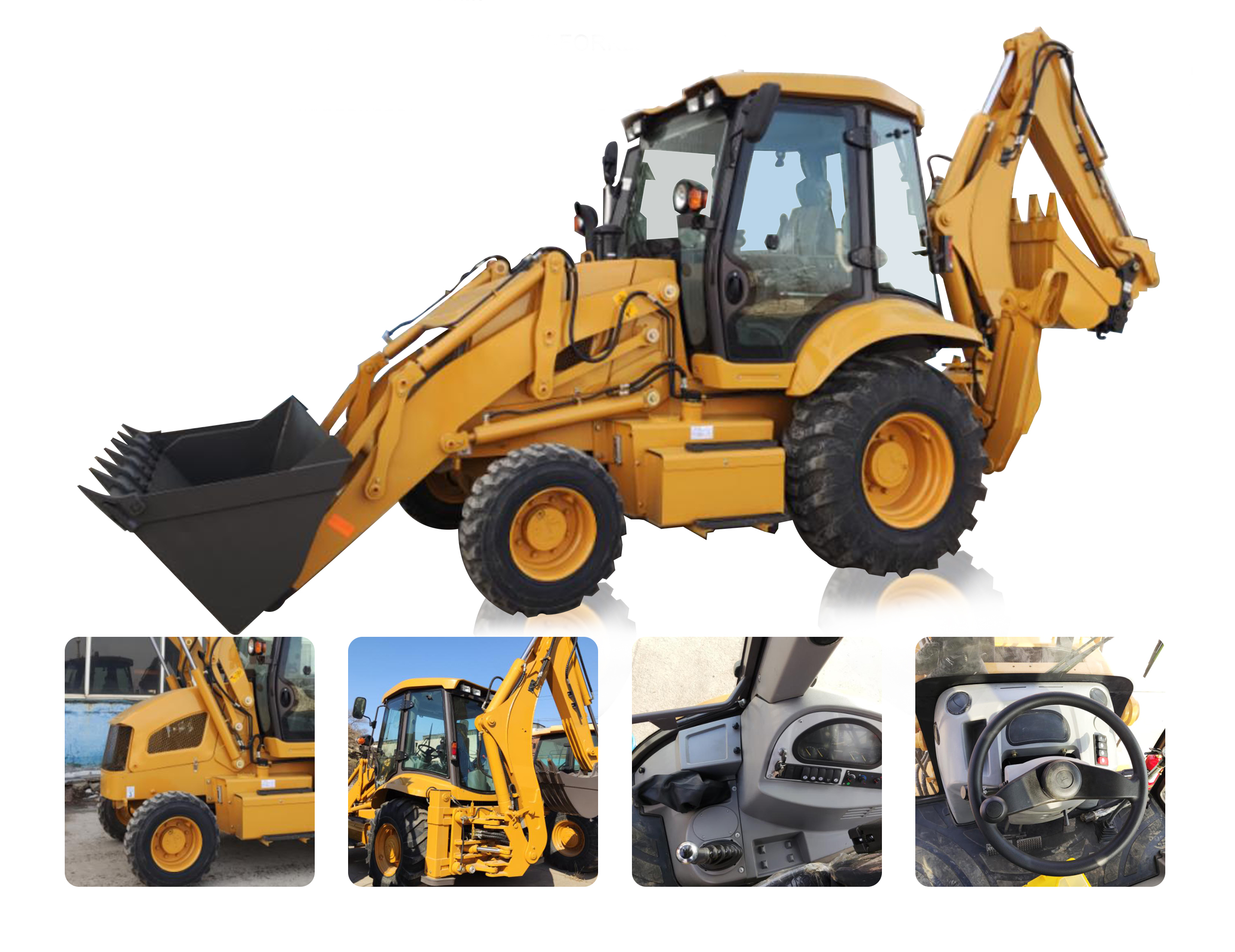

Backhoe Loader 388 -T

Backhoe Loader 388 -T
  • Backhoe Loader 388 -T

Short Description:

Overall Operating Weight:8200KG Bucket Capacity:1.0m3 Bucket Dumping Height:2742mm L*W*Hmm:6100×2365×3752...


  • Overall Operating Weight:7200KG:
  • L*W*Hmm:6230×2365×3752mm:
  • Bucket Capacity:0.3-1.0m3:

Product Details

Product Tags


Product Feature

Backhoe loader 388-T adopts anti-rolling cab, which can be matched with Yuchai, cummins, Weichai, new diesel engine, imported Italian Carlo bridge box, imported valve, overall frame, the whole machine has good stability, suitable for earth and stone, small and medium-sized projects.Imported Italian Corolla gearbox,inlet valve

Our range of 388-II Sitemaster machines boast a number of brand new features and improvements designed to help you be the master of all jobs, on any worksite.


Parameter

Overall Operating Weight 7820KG
dimensions 6230×2365×3752mm
Wheel base 2280mm
Bucket Dumping Height 2650mm
Bucket Dumping Distance 1025mm
Max. Digging Depth 4082mm
Loading Lifting Capacity 2500KG
Min. Ground Clearance 300mm
Axle Italy Carraro
Backhoe Capacity 0.3 m3
Bucket Capacity 1.0m3
Tyre 14-17.5/19.5L-24
Engine Cummins 74kw
Displacement 4.5L
Digging Depth 52mm

PRODUCT FEATURE


(1)SITEMASTER OF COMFORT



A comfortable operator is a productive operator, which is why we’ve used ergonomic design to add high comfort levels for a better working environment.

Our 388-II cab is large and easy to access, with plenty of room in every operating position.
A powerful face fan helps in hot environments, while air conditioning is standard on the 388-II PRO, for the ultimate in operator comfort.
Our 388-II PRO has a Smooth Ride System to enhance comfort and improve load retention.
Dedicated in-cab storage is both safe and convenient.
The EasyShift transmission on our 388-II PRO features an electric, column mounted switch, for effortless gear changing.


(2)SITEMASTER OF CONTROL

With powerful hydraulics, excellent visibility and perfectly matched componentry, the new 388-II machines provide unrivalled productivity, speed and control.
The four ram, self-levelling, heavy-duty loader geometry provides greater visibility with superb dump height and long reach for excellent load retention and fast truck loading.
A high-performance braking system offers fatigue-free operation and excellent control.
The 388-II excavator arm is designed to give ultimate control and productivity.
Our 388-II Pro has servo controls as standard, with finger-tip control for reduced operator fatigue.
A new, easy to read front display on the 388-II PRO displays the speedometer and gearselection.


(3)QUALITY, RELIABILITY AND DURABILITY

To achieve the very highest levels of build quality, reliability and finish, we manufacture the 388backhoe using DEA, strain gauging, advanced in-house manufacturing processes, robot machining, precision paint technology and innovative assembly techniques.

Our durable loader arm design, meanwhile, has high breakout forces and lift capacity.
The 388 backhoe loader’s raised front and rear lights reduce the risk of damage and improve visibility.




Detail


About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Yunnei, Huadong, Huafeng, Cummins, Changchai, Xinchai, etc.
MYZG have perfect after-sales service,and provide  warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
