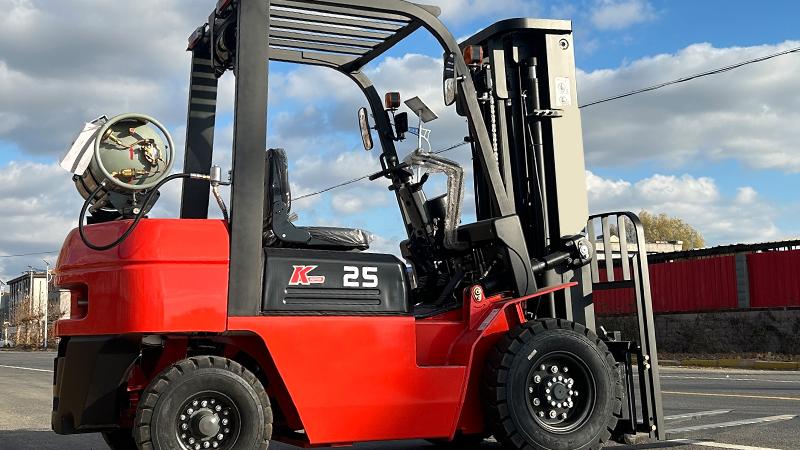

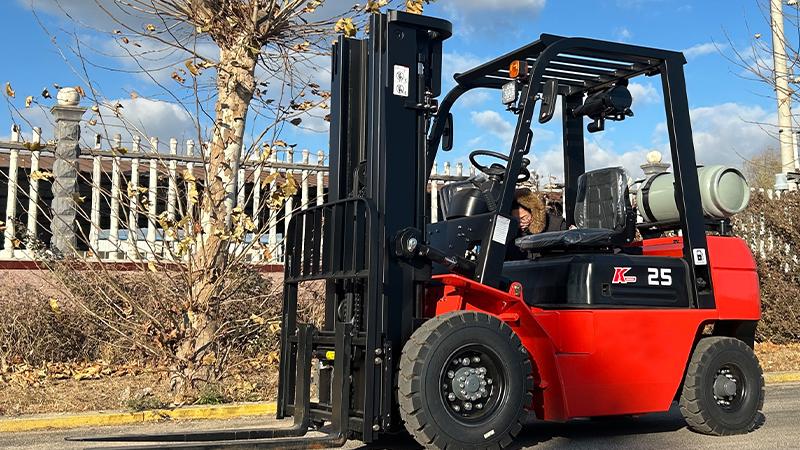

CPY25 2500kg Gasoline/LPG Powered Heavy-Duty Forklift

The CPY25 forklift is engineered to deliver exceptional performance in demanding industrial settings. With a substantial load capacity of 2500kg and a lifting height of 3000mm, this forklift is ideal for warehouses, manufacturing facilities, and logistics centers. Its dual gasoline/LPG power system offers flexibility in fuel choice, allowing operators to switch between fuels based on availability and cost-efficiency. The forklift’s 20% climbing capacity ensures it can handle inclined surfaces and ramps with ease, making it suitable for both indoor and outdoor applications. Built with durability in mind, the CPY25 features a robust chassis and high-quality components that ensure long-term reliability. The ergonomic design includes an adjustable seat and intuitive controls, reducing operator fatigue and enhancing productivity. Additionally, the forklift’s 2240mm turning radius provides excellent maneuverability in tight spaces, optimizing workflow efficiency.

Under the hood, the CPY25 is powered by a GQ4Y engine, which boasts a rated power of 46kW at 2800 rpm and a torque of 168Nm at 1800 rpm. This four-cylinder engine with a displacement of 2.237 liters ensures smooth and consistent performance, even under heavy loads. The forklift’s hydraulic system enables a maximum lifting speed tailored for full-load operations, while the descending speed is optimized at 600mm/s for loaded and 300mm/s for unloaded conditions. The inclusion of a 65-liter fuel tank allows for extended operation without frequent refueling, minimizing downtime. The forklift’s tires—7.00-12-12PR at the front and 6.00-9-10PR at the rear—are designed to provide superior traction and stability on various surfaces. With a wheelbase of 1600mm and a wheel track of 970mm front and rear, the CPY25 ensures balanced weight distribution and smooth handling.

Safety is a key focus in the design of the CPY25. The forklift features an overhead guard height of 2180mm, providing protection for the operator from falling objects. The front overhang distance of 460mm and a minimum ground clearance of 110mm contribute to the forklift’s stability and ability to navigate uneven terrain. The forklift’s braking system and drawbar pull capabilities are engineered to handle full-load conditions safely. The inclusion of a 12V/80Ah battery ensures reliable starting and power for auxiliary systems. The forklift’s dimensions—2580mm in length (without forks) and 1160mm in width—make it compact enough for narrow aisles while maintaining its heavy-duty capabilities. The maximum lifting height of the fork, including the stopper shelf, reaches 4030mm, offering versatility for stacking and retrieving goods at significant heights.
