Will an Electric Pallet Truck Fit Your Pallets? A Fork-Entry and Aisle-Width Check
Practical buyer answer: Will an Electric Pallet Truck Fit Your Pallets? A Fork-Entry and Aisle-Width Check ZGFORKLIFT / MYZG electric pallet truck. Shandong Zhuogong Machinery equipment Co.,Ltd
Practical buyer answer
A pallet truck can look suitable by capacity and still fail at the first pickup if its forks do not enter the pallet cleanly. The outside pallet dimensions are only a starting point. Check which side is used for entry, whether the pallet is two-way or four-way, the clear spacing between blocks or stringers, the pocket height, and the condition of the bottom boards. A damaged pallet can reduce clearance enough to make an otherwise correct truck bind.
electric pallet truck ZGFORKLIFT / MYZG

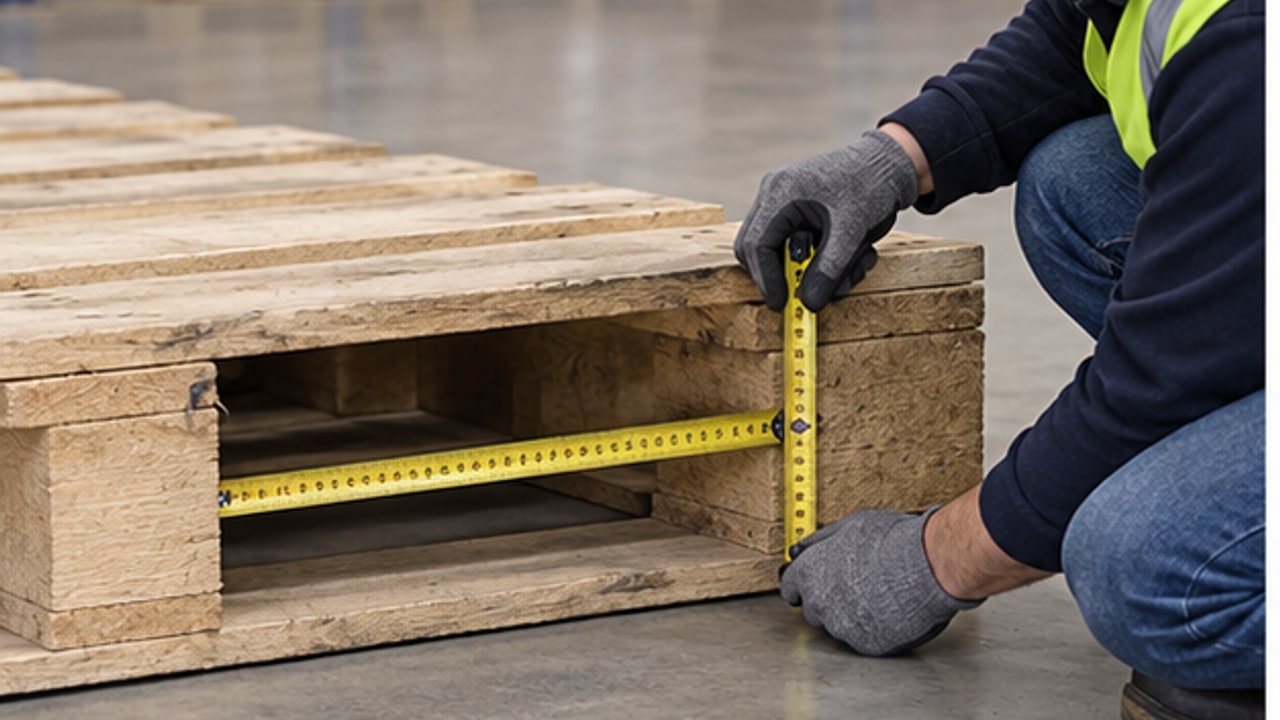

Measure the pallet openings at several points rather than trusting a nominal drawing. Record the inside width of each pocket, the clear distance between the two openings, and the vertical clearance above the floor. Include pallets from different suppliers and the least favorable example in normal circulation. For a pallet with runners, note their direction and thickness; for a block pallet, confirm that the drive and load wheels have a clear path and will not strike blocks during entry or turning.

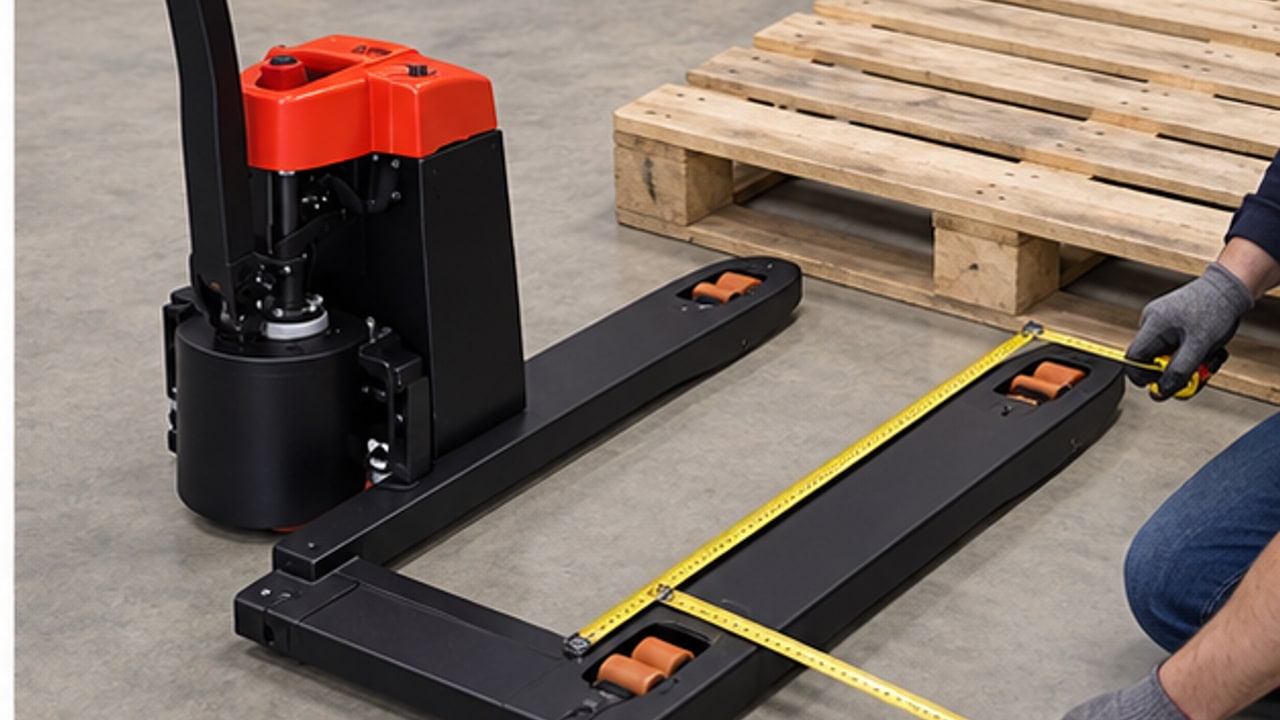

Then compare those measurements with the selected truck's lowered fork height, fork width, fork length, spacing, outside width and roller arrangement. A specification may quote each fork's width separately from the distance between forks or the overall outside width, so do not compare unlike dimensions. The fork tips and entry rollers also matter: the forks can have enough nominal clearance at the shank yet meet a low board or a warped pocket at the front of the pallet.
electric pallet truck ZGFORKLIFT / MYZG

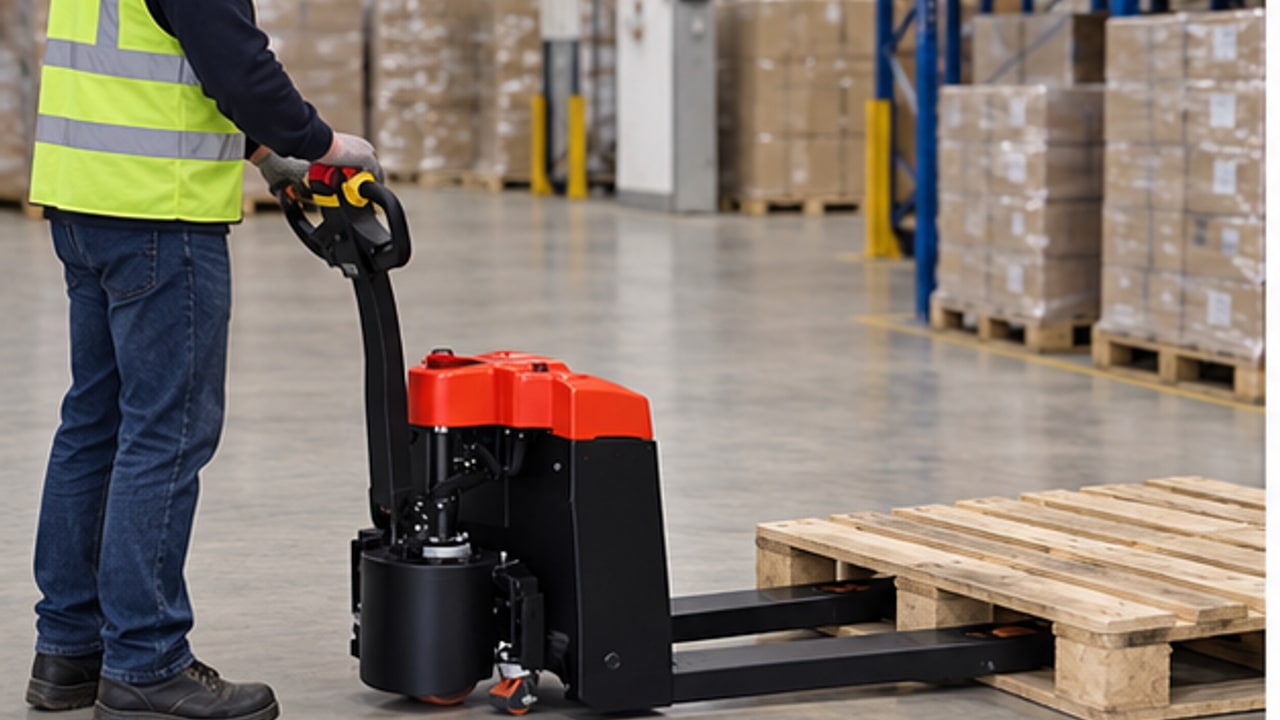

A practical site check starts with an empty truck and an undamaged representative pallet on a level, clear floor. Approach squarely at low speed, keep forks fully lowered, and confirm that both forks enter without lifting, forcing, scraping or shifting the pallet. Stop if a board catches, a wheel climbs an edge, or the truck contacts the load. Repeat from each routinely used entry direction only if the pallet is designed for it; never use momentum to overcome a poor fit.
Fit is not decided by pallet dimensions alone. Check the complete route from pickup to drop-off: door clear width, turning corners, aisle width, dock plates, floor joints, ramps and the space needed to align with a trailer or production lane. Measure the tightest point with the truck and load envelope in mind. On a busy cross-aisle, account for pedestrian separation and sight lines as well as physical clearance; a pallet that enters the forks may still be unsuitable for the route.
electric pallet truck ZGFORKLIFT / MYZG
Practical buyer answer

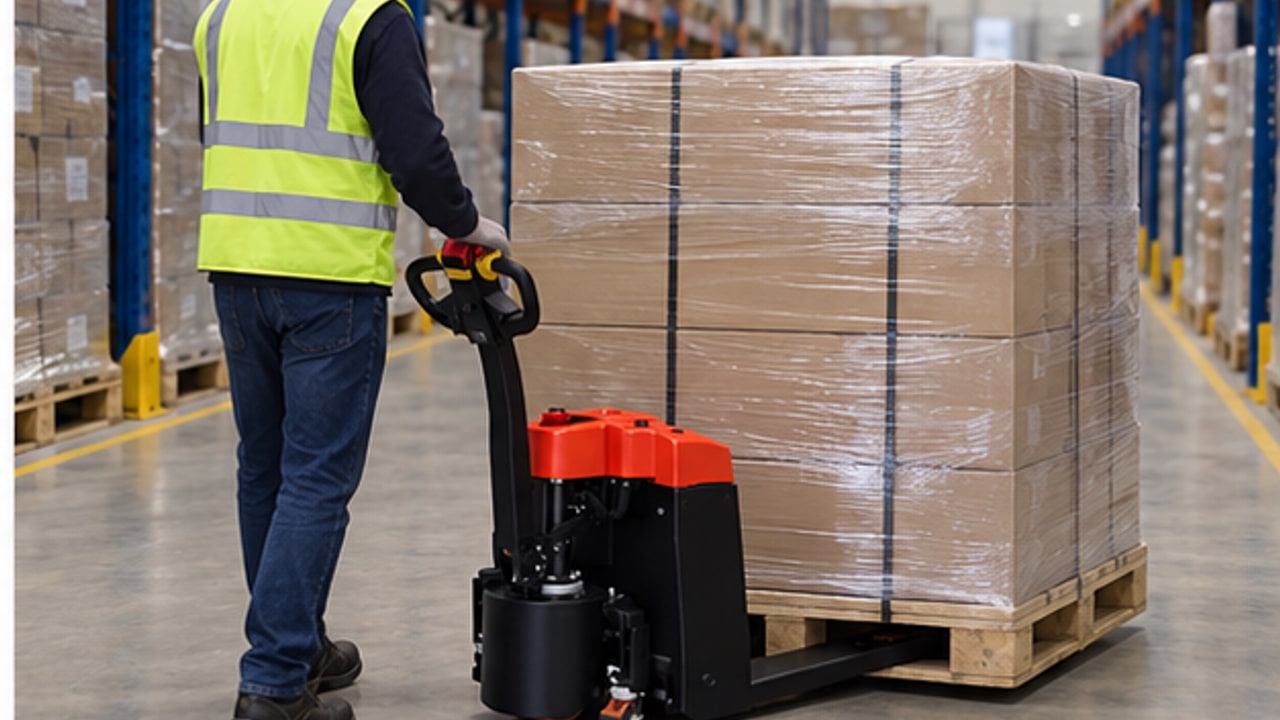

Load placement affects both support and steering. Confirm that the load is centered, stable, within the rated capacity and supported by the pallet's structural members. Avoid a load that overhangs into the operator path or blocks visibility. If a tall, unstable or unusually shaped load is common, review whether a powered pallet truck is the right tool and establish a safer handling method rather than compensating with improvised fork spacing or an unapproved attachment.
Also distinguish a low-lift pallet truck from a pallet stacker. A pallet truck transports compatible pallets near floor level; it is not intended to place them in storage racks. If the work includes raised storage, choose equipment with a mast and verify its capacity at the required lift height. The ZGFORKLIFT / MYZG stand-on CBD20/25/30 is one reference for repeated horizontal transport, while a walk-behind option may suit shorter moves and tighter working areas. Confirm the exact version and dimensions on the quotation.
electric pallet truck ZGFORKLIFT / MYZG
For a purchase review, prepare a simple compatibility sheet: pallet length and width; entry side; pocket width and height; fork length and outside width required; maximum gross load; load center; aisle and doorway measurements; floor condition; trips per shift; and charging schedule. Photos of pallet undersides and the tightest route points are useful, but measurements should remain the controlling evidence. Ask the supplier to confirm the selected fork arrangement in writing before production or shipment.
The electric pallet truck product pages can help compare walk-behind and stand-on formats, but model data must be checked against the actual pallet fleet and job. Shandong Zhuogong Machinery equipment Co.,Ltd can review those measurements with buyers before quotation. For a fitment review, send pallet photos, measured pocket clearances, load weight, route drawing and target work cycle to WhatsApp +86 131 7691 0558 or MYZG@my-forklift.com. A careful check before ordering is less costly than discovering incompatibility at the first loading shift.
