Introduction
Wheel loaders are powerful machines used in various industries such as construction, mining, and material handling. These machines are designed to move materials like dirt, sand, gravel, and snow, and they perform a variety of essential tasks such as loading, lifting, and transporting. Whether used for clearing debris at a construction site or moving heavy loads at a mine, a wheel loader’s efficiency heavily relies on its various components working together seamlessly. Understanding the major parts of a wheel loader is essential for anyone involved in its operation, maintenance, or selection. In this article, we’ll delve into the key components that make up a wheel loader and discuss their functions, importance, and how they contribute to the overall performance of the machine.
Engine and Powertrain
The engine is the heart of any wheel loader. It provides the power necessary to drive the machine’s various systems, including the hydraulic system, transmission, and wheel drivetrain. Typically, diesel engines are used because of their power output and fuel efficiency, though some modern wheel loaders use hybrid or electric engines to reduce emissions and fuel consumption.
Key Components of the Powertrain
Transmission: The transmission transfers power from the engine to the wheels. There are usually two types: manual or automatic transmissions. An automatic transmission is more common in modern machines for smoother operation.
Differential: The differential allows the wheels on each side of the wheel loader to rotate at different speeds, which is especially important when turning to maintain smooth motion and reduce tire wear.
Driveshafts: These components transfer the torque from the engine to the wheels, ensuring that the loader moves forward or backward as needed.
The powertrain ensures that the wheel loader has enough torque to move heavy materials, and an efficient engine makes the loader more fuel-efficient, reducing operational costs.
Hydraulic System
The hydraulic system is one of the most important components of a wheel loader. It provides the power needed for lifting, tilting, and other bucket operations. The system uses hydraulic fluid to transfer force to cylinders and motors, allowing for precise control of the loader’s functions.
Key Hydraulic Components
Hydraulic Pump: This component creates the necessary pressure to move hydraulic fluid through the system.
Hydraulic Cylinders: These cylinders are responsible for lifting and tilting the loader arms and the bucket. They are powered by the hydraulic fluid and are crucial for lifting heavy loads.
Hydraulic Valves and Hoses: These components control the flow of hydraulic fluid and direct it to the appropriate parts of the system, ensuring smooth operation.
Without a well-functioning hydraulic system, the wheel loader would not be able to perform its primary job of lifting and carrying materials. Proper maintenance of the hydraulic system is essential for ensuring smooth and efficient operations.

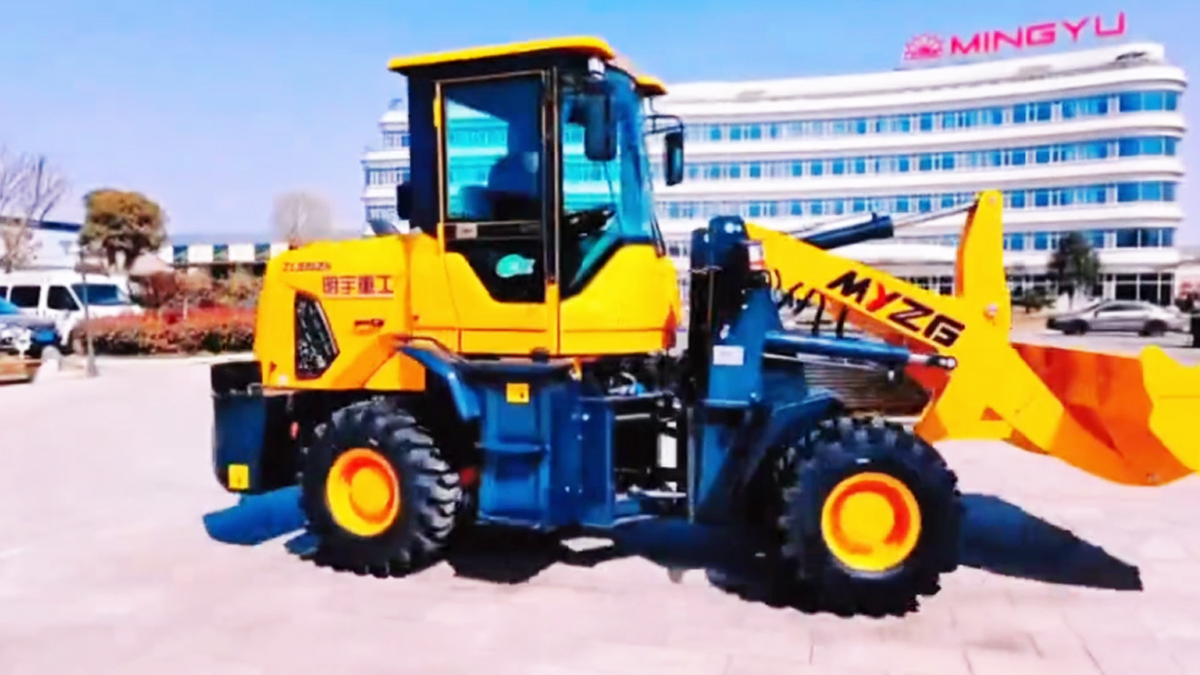

Loader Arms and Bucket
The loader arms and bucket are perhaps the most iconic parts of a wheel loader. These components are responsible for lifting, carrying, and dumping materials. The loader arms are typically made of strong steel to handle the stresses involved in heavy lifting.
Types of Loader Arms
Z-bar: The most common type of loader arm, providing great breakout force (the force needed to lift materials from the ground).
Mono Boom: A single-arm design that provides a more compact and stable lifting mechanism.
Function of the Bucket
The bucket is used to scoop materials, carry them, and then dump them in a designated location.
Different types of buckets are available based on the material being handled, such as standard, light material, or high-capacity buckets.
The design of the loader arms and bucket determines how much material the wheel loader can move in one pass and how efficiently it can complete its tasks.
Chassis and Frame
The chassis and frame serve as the foundation of the wheel loader, providing structural support and durability. These components are designed to withstand the heavy loads and stresses placed on the machine during operation.
Key Components of the Chassis and Frame
Mainframe: The central structure that holds all the other components of the loader together.
Undercarriage: The system that includes the axles, wheel assemblies, and suspension, supporting the loader’s movement.
Axles: The axles support the weight of the machine and ensure proper load distribution to the wheels.
The frame must be built to handle substantial weight while providing stability and strength during demanding tasks. Proper maintenance and inspection are necessary to ensure the frame does not suffer from cracks or damage.

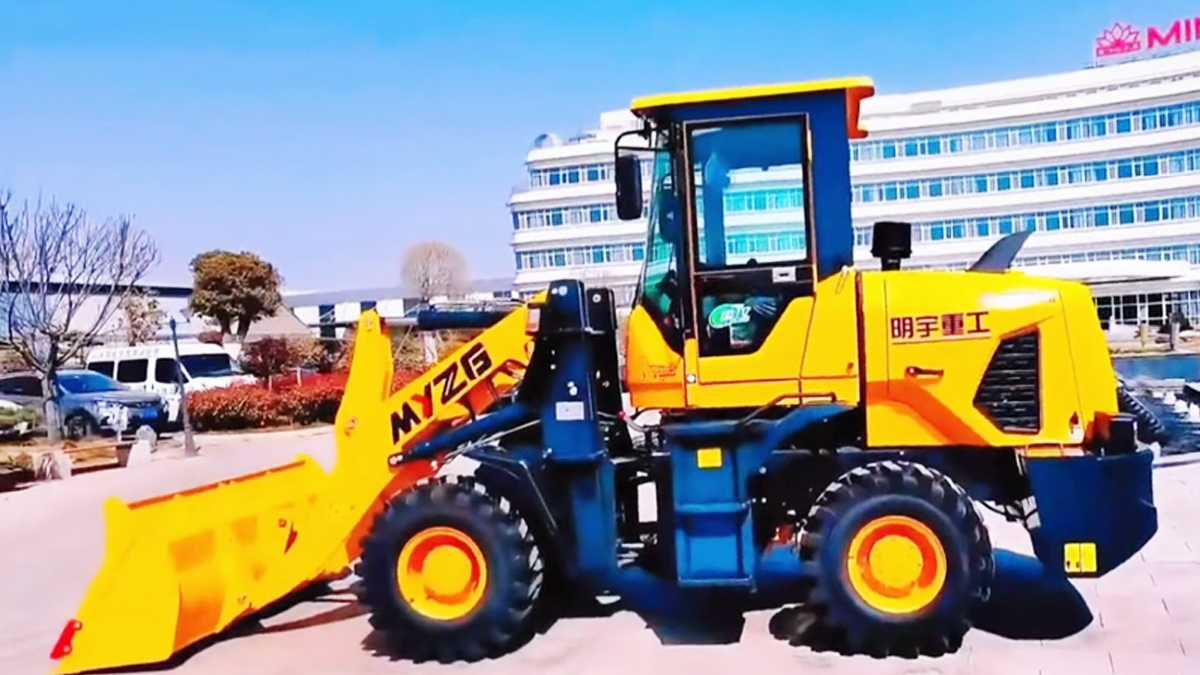

Steering System
The steering system in a wheel loader allows for precise control and maneuverability. Different types of steering systems are used in various models, each offering its own advantages.
Types of Steering Systems
Articulated Steering: The most common system, which allows the loader to pivot at the middle, providing better maneuverability and a smaller turning radius.
Four-Wheel Steering: Some models use four-wheel steering for even greater maneuverability, especially in tight spaces.
Components of the Steering System
Steering Cylinders: These are responsible for steering the loader, pushing and pulling the wheels as needed.
Linkages and Hydraulic Steering Pump: These components connect the steering wheel to the steering cylinders and ensure smooth operation.
The steering system plays a vital role in allowing the wheel loader to navigate through confined spaces, such as narrow aisles in warehouses or crowded construction sites.
Tires and Wheels
Tires are a crucial part of the wheel loader’s performance, as they provide the necessary traction and stability. Depending on the type of terrain the wheel loader operates on, different tire options can be chosen.
Types of Tires for Wheel Loaders
Radial Tires: These tires offer better traction and longer lifespan, making them ideal for rough, rocky terrains.
Bias-Ply Tires: These provide more flexibility and durability, suitable for smoother surfaces.
Solid Rubber Tires: Typically used in urban environments where tire punctures are more likely.
The size and tread pattern of the tires can significantly impact the loader’s ability to maneuver and lift heavy loads. Regular inspection and proper maintenance of the tires are essential to ensure optimal performance.
Operator’s Cabin

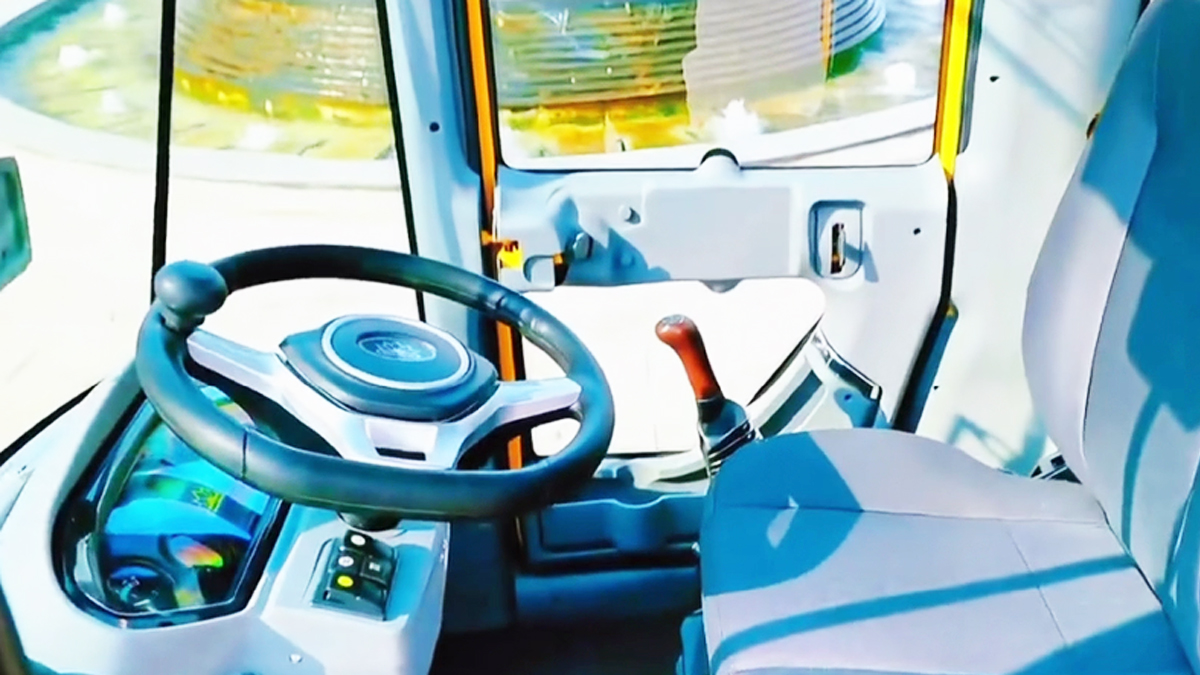

The operator’s cabin is the control center of the wheel loader, designed for comfort, safety, and ease of operation. It houses all the controls that allow the operator to control the various functions of the loader.
Key Features of the Operator’s Cabin
Controls: Joysticks, buttons, and levers are used to control the loader’s movement, lifting, and dumping functions.
Visibility: A well-designed cabin offers clear visibility to improve safety and precision during operation.
Comfort Features: Adjustable seats, air conditioning, and ergonomic designs ensure the operator can work long hours without discomfort.
Modern wheel loaders are also equipped with digital displays and cameras to help operators monitor machine performance and avoid accidents.
Electrical and Control Systems
The electrical system controls all of the machine’s electronics, including lights, alarms, and the engine management system. In modern wheel loaders, advanced control systems are used to optimize performance, monitor fuel consumption, and provide diagnostics.
Key Components of the Electrical System
Battery: Powers the electrical system and starts the engine.
Alternator: Keeps the battery charged while the engine is running.
Control Units and Sensors: These include electronic control units (ECUs) that manage engine performance, hydraulics, and diagnostics.
The electrical and control systems are increasingly important as more wheel loaders incorporate automated features and telematics.
Cooling and Exhaust System
Proper temperature regulation is essential for maintaining the performance of the wheel loader’s engine and hydraulic system. The cooling and exhaust systems work together to keep the machine at optimal operating temperatures and reduce harmful emissions.
Components of the Cooling System
Radiator: Cools the engine by dissipating heat.
Cooling Fans and Coolant: These help in heat exchange and keep the engine at a steady temperature.
Components of the Exhaust System
Muffler and Catalytic Converter: Reduces engine noise and helps control harmful emissions.
Emission Control: Many modern machines are equipped with systems that comply with environmental regulations to reduce pollutants.
Maintenance and Serviceability
Regular maintenance is essential for ensuring the wheel loader remains operational and efficient throughout its lifespan. Proper serviceability ensures easy access to components for routine inspections, oil changes, and repairs.
Common Serviceable Parts
Filters: Air, fuel, and hydraulic filters need to be checked and replaced regularly.
Lubrication: Lubricate moving parts such as joints and bearings to prevent wear and tear.
Oil Changes: Regular oil changes ensure the engine and hydraulic systems continue to run smoothly.
Adopting a preventive maintenance schedule can significantly reduce downtime and repair costs, ensuring the loader is always ready for work.
Conclusion
Wheel loaders are complex machines made up of various interconnected components. Each part plays a vital role in ensuring the loader operates efficiently and safely. From the engine and powertrain to the hydraulic system, tires, and operator’s cabin, every component has a specific function that contributes to the loader’s performance. Regular maintenance, proper care, and understanding these major parts are key to maximizing the lifespan and productivity of a wheel loader. Whether you're operating, maintaining, or purchasing a wheel loader, understanding its key components is essential for getting the best out of this powerful and versatile machine.
