When a walk-behind electric pallet stacker raises empty forks normally but slows with a pallet, treat the change under load as useful evidence. Do not assume the rated capacity is the cause. First confirm the pallet weight, load center, fork spacing, lift height and whether the pallet is damaged or dragging against a rack, floor joint or another load. Keep the test load within the machine's rating and perform checks on a level, controlled area.
electric pallet stacker ZGFORKLIFT / MYZG
A practical first check is battery condition under demand, not only the resting display. A weak battery, incomplete charge, corroded connector or loose cable can allow the control display to look normal while voltage drops when the lift motor draws current. A qualified technician can compare the battery reading before and during a brief lift using the maker's safe test procedure. Stop if a connector becomes hot, insulation is damaged, or there is sparking; isolate the machine and have the fault corrected.
If battery voltage remains stable, inspect the hydraulic side without opening a pressurized circuit. Check the approved oil level with the mast lowered as specified in the manual, look for visible leaks, and note unusual pump noise or foaming. Low oil, an unsuitable fluid, a restricted filter or internal wear may reduce lifting speed, but diagnosis should follow the model's service instructions. Never search for a leak with a hand and never loosen a hose while the forks are raised.
electric pallet stacker ZGFORKLIFT / MYZG
Record whether the slow lift occurs from floor level or only near a particular height, whether lowering is normal, and whether the issue changes with a fully charged battery. These details help distinguish electrical supply, hydraulic flow, friction or load-related resistance. Compare like with like: same pallet, same mass, same lift height, same battery state and the same temperature. Avoid repeated full-load cycles while an unexplained symptom is present.
A useful buyer specification therefore includes the normal load range, pallet type, lift height, duty cycles per hour, aisle width and charging opportunity. Match the stacker and mast to those conditions, then confirm battery capacity, charger compatibility, service access and parts support. The ZGFORKLIFT / MYZG CDDA walk-behind stacker page provides a model reference, but final suitability depends on the selected configuration and verified load chart.
electric pallet stacker ZGFORKLIFT / MYZG
Practical buyer answer
Start with the actual job cycle rather than a headline capacity. Record the load, load center, pickup height, travel route, final placement, surface, gradients, clearances and the number of cycles in a representative hour. This turns a general equipment question into a configuration that can be checked before an order is placed.

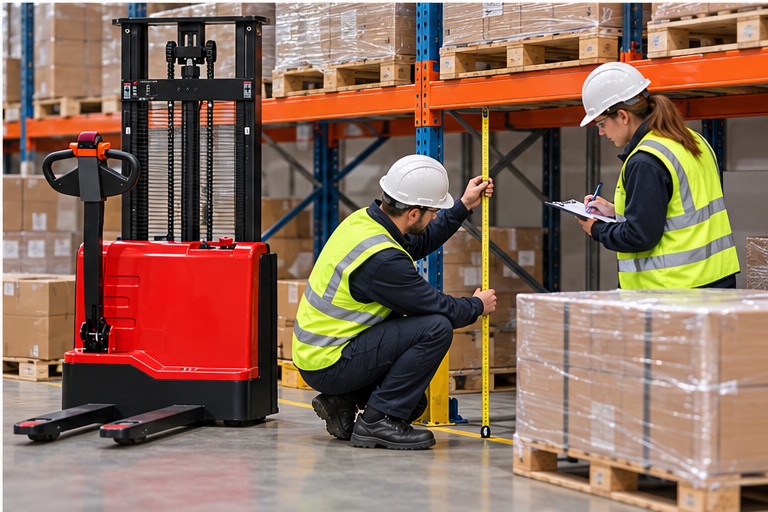

Measure the narrowest entrance, lowest overhead obstruction, turning area and stopping distance with the normal load carried. Include doors, columns, drains, ramps, parked vehicles, pedestrians and temporary barriers. A marked site drawing and current photographs help a supplier identify conflicts that are easy to miss in a specification table.
electric pallet stacker ZGFORKLIFT / MYZG
Usable performance must be confirmed in the final configuration. Attachment weight, load center, lift height, fork length, tire choice and operating surface can reduce the capacity available at the task. Ask for written confirmation of the exact machine, mast, attachment and operating condition.
