There is no reliable one-number answer to “How many hours will an electric pallet truck run?” A shift can include loaded travel, empty return, frequent starts, waiting at doors, queueing, picking pauses and breaks. Battery chemistry, usable capacity, truck condition, load, floor, gradients, temperature and operator habits all affect energy use. Treat a published runtime as meaningful only when its test conditions match your operation. Before comparing quotations, describe the cycle you need to finish and ask the supplier to confirm the battery and charger configuration for that duty.
electric pallet truck configuration and listed specification
Begin with a representative route map. Mark the pickup and drop-off points, one-way distance, turns, doorway thresholds, floor joints, ramps if any, and where the operator waits. Record the heaviest normal pallet and the typical load, not just the maximum in a rare exception. Count complete moves per hour and per shift, including empty repositioning. A simple tally sheet for several busy and ordinary periods is more useful than a guess based on the building's total floor area. Keep pedestrian separation and safe operating rules unchanged during any trial.
Separate productive travel time from elapsed shift time. For each sample cycle, note seconds spent approaching, lifting, travelling loaded, placing, returning empty and waiting. Add the number of cycles and approximate distance. Then record battery state-of-charge at the start and at planned checkpoints using the truck's approved display or procedure. Do not open the battery, probe live circuits or infer remaining energy from a single voltage reading. The aim is a repeatable operational observation, not an improvised electrical test or a claim that every future shift will use the same energy.
Build a worksheet with columns for date, ambient conditions, operator, pallet mass band, route, cycle count, travel time, waiting time, starting and ending battery indication, and any unusual event. Repeat the sample on more than one representative day. Note whether a shift included cold start, long idle periods, frequent acceleration, floor debris or congestion. Compare like with like: a light route with smooth concrete cannot prove performance on a heavier, longer or colder route. If the truck's display has a documented logging method, use it as directed and retain the records with the model and battery identification.

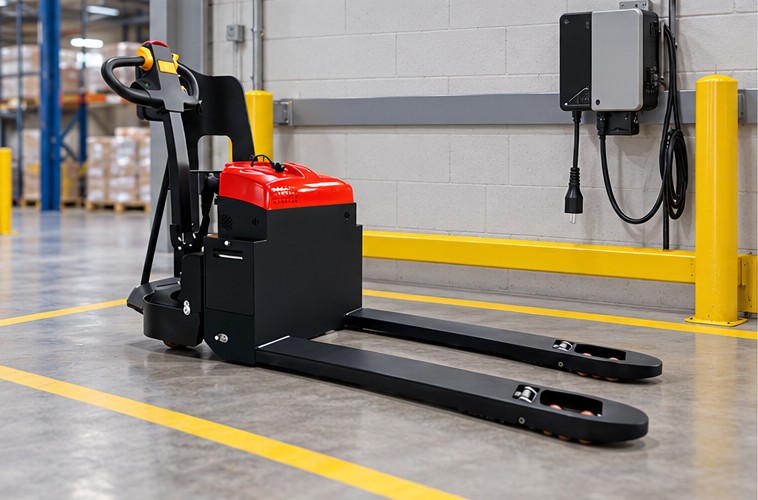

Use the observed pattern to define the required operating window. State when the truck must be available, when it can safely be parked, and whether a planned opportunity charge is permitted by the exact battery and charger instructions. A shift with an accessible break-time charge differs from a continuous cross-dock cycle. Include the time needed to connect, charge and return the truck to work; do not assume a short pause restores a specific percentage. Obtain written confirmation of charger compatibility, electrical supply requirements, charging procedure and any restrictions before finalizing a multi-shift plan.
Create a reserve rather than designing around a best-case result. Allow for seasonal temperature, gradual battery aging, heavier days, route changes and unplanned waiting. Agree what low-charge indication triggers a controlled return or a change of equipment, and where the truck will be parked without blocking exits or pedestrian routes. If the measured end-of-shift reserve is small or inconsistent, review route layout, staging, traffic, battery configuration or the number of trucks before asking operators to work faster. Never bypass a low-battery warning or continue into a condition the manual prohibits.
When requesting a quotation, send the worksheet together with the product details you can verify. The ZGFORKLIFT / MYZG electric pallet truck page lists a 1,500 kg load capacity, 232 kg unladen weight and outline dimensions of 1,750 × 690 × 1,130 mm for the shown configuration; confirm the current specification, battery type, capacity, charger and options with the supplier before applying these values to a site. Measurements and stated specifications describe the listed build, not guaranteed runtime. Ask which duty-cycle evidence supports any runtime estimate and what assumptions it uses.
electric pallet truck reference page
After delivery, repeat the same safe observation with the actual route and approved operating procedure. Compare the records with the quotation assumptions, and investigate unexpected changes through the manual and qualified service support. Keep the battery and charger identification, maintenance dates and operator notes together; this makes later troubleshooting more precise. Shandong Zhuogong Machinery equipment Co.,Ltd can review the intended shift, load pattern and configuration questions for ZGFORKLIFT / MYZG equipment. Share the route, cycle counts, battery information and destination through WhatsApp +86 131 7691 0558 or MYZG@my-forklift.com. A measured duty cycle is a sound basis for planning; it is not a substitute for the manufacturer's operating instructions.
