This buyer guide answers a practical search question: How Much Working Height and Outreach Does an Articulating Boom Lift Need? The answer depends on the real load, route, ground, access geometry and daily duty cycle rather than one catalog number. ZGFORKLIFT / MYZG recommends documenting the job first so the selected articulating boom lift can complete the work without unnecessary size, cost or operating restrictions.

The buyer question

Working height and platform height are not the same figure. Buyers should identify the exact elevation of the task and confirm how the manufacturer defines working height. The operator must be able to work comfortably from inside the basket without climbing on rails or using improvised steps.

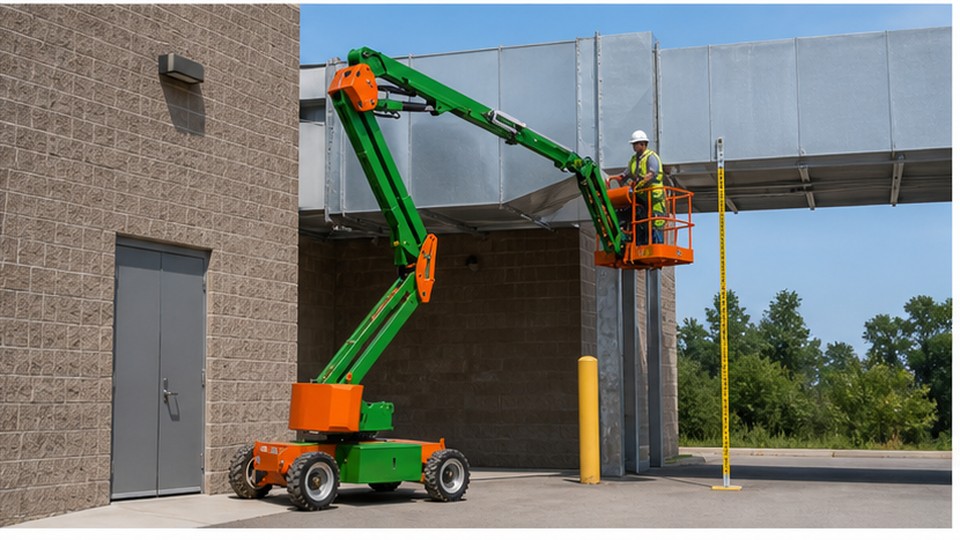

Horizontal outreach must be measured together with height. Record the distance from the closest safe parking position to the work point, then add the width of canopies, pipe racks, machines or landscaping that the boom must pass over. A maximum-reach number alone does not describe the full working envelope.

Short answer

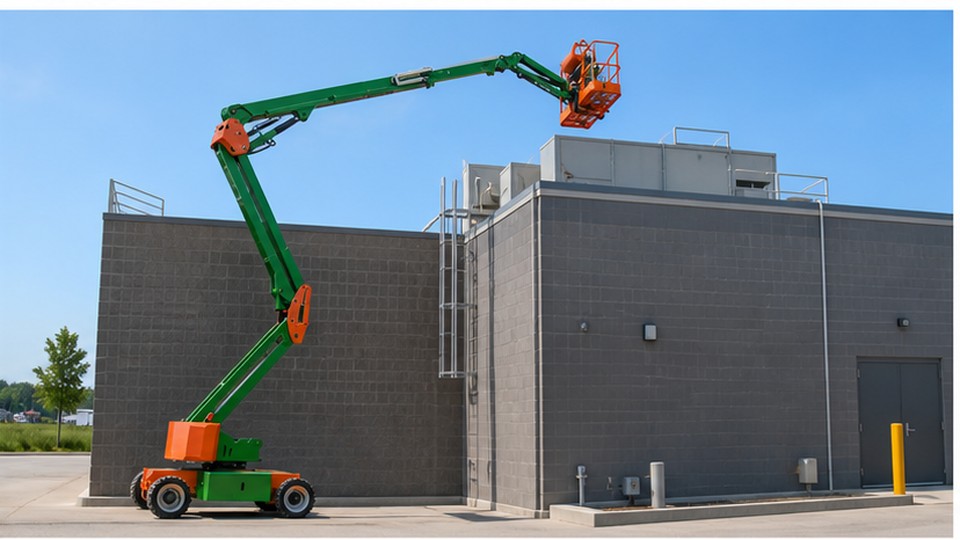

Up-and-over geometry is often the reason to choose an articulating boom. Measure obstacle height, obstacle depth and the required basket position behind it. A site sketch with three dimensions is more useful than a photograph taken from only one direction.

compare the related product information: articulating boom lift ZGFORKLIFT / MYZG.

Platform capacity includes every person, tool and material in the basket. Heavy tools or replacement components can change usable outreach on machines with restricted and unrestricted capacity zones. Always compare the planned task with the current load chart and operator manual.

The access route matters before the boom is raised. Confirm gate width, travel height, turning room, slope, floor loading, drainage and unloading space. The machine may reach the target but still be unsuitable if it cannot enter, turn or park on an approved surface.

What to measure

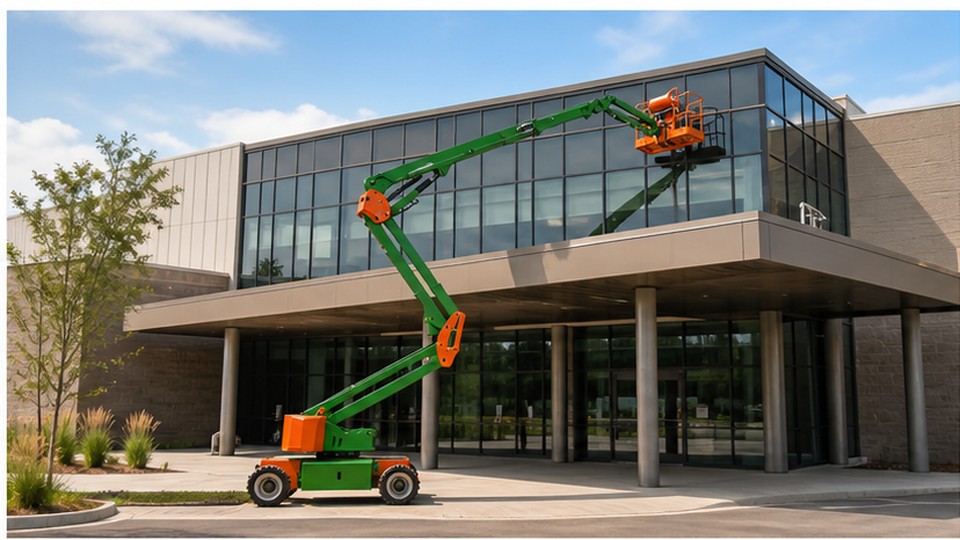

In a facade job, the original plan placed the lift directly below the work point. A canopy prevented that position. After the team measured the canopy depth and the lateral offset, an articulating route allowed the basket to approach from a clear zone while keeping the chassis away from the entrance.

In a factory utility yard, pipes and parked equipment created a narrow corridor. The useful solution was not simply more height. The buyer needed enough articulation, tail clearance and proportional control to place the basket beside a service point without contacting structures.

review the complete equipment range: articulating boom lift ZGFORKLIFT / MYZG.

Power source should match the operating environment. Indoor or sensitive areas may favor electric operation where approved, while long outdoor shifts may require a different energy plan. Confirm ventilation, charging or fueling access, ambient temperature and expected hours per day.

A practical site case

Tires and drive configuration should be selected for the worst regular surface. Smooth concrete, compacted gravel and soft ground impose different traction and floor-protection requirements. Never assume an outdoor label means the machine is approved for every slope or soil condition.

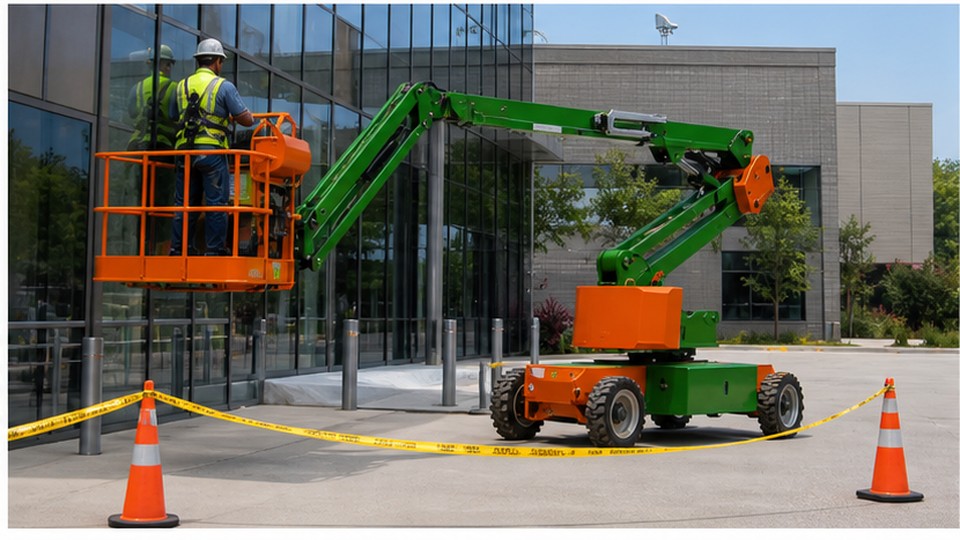

Before each shift, inspect tires, guardrails, entry gate, controls, emergency lowering, alarms, hoses, pins and visible structural parts. Confirm the work zone is controlled and that personnel understand the rescue plan. Local rules, training requirements and the manufacturer manual always take priority.

Wind, rain, nearby electrical conductors and moving traffic can change a planned task. The operator must respect the machine wind rating, electrical clearance rules and site procedures. A boom lift is an access platform, not a crane for suspended loads.

learn about the manufacturer and support: articulating boom lift ZGFORKLIFT / MYZG.

Configuration checklist

For a useful quotation, send the target height, horizontal offset, obstacle dimensions, basket load, entrance dimensions, surface condition, travel distance, power preference, destination and expected annual hours. Photos and a simple marked drawing help prevent an expensive mismatch.

Compare ownership value through uptime, routine service access, parts planning, transport dimensions and operator familiarity. The lowest purchase price may not be the lowest project cost if the machine requires repeated repositioning or cannot reach common service points.

Shandong Zhuogong Machinery equipment Co.,Ltd can review site measurements and explain which standard or optional configuration fits the application. Final dimensions, capacities and approved operating limits must be confirmed on the quotation and the machine documentation before use.

Safety and ownership

A good selection record lists the task, site limits, chosen configuration and reasons for every option. This gives purchasing, operations and service teams the same reference and makes later fleet planning easier.

read more buyer-focused equipment articles: articulating boom lift ZGFORKLIFT / MYZG.

The practical answer is to select the smallest approved machine that reaches the actual work point with the required basket load while fitting the route and ground. More height is useful only when the complete working envelope and site conditions also match.
