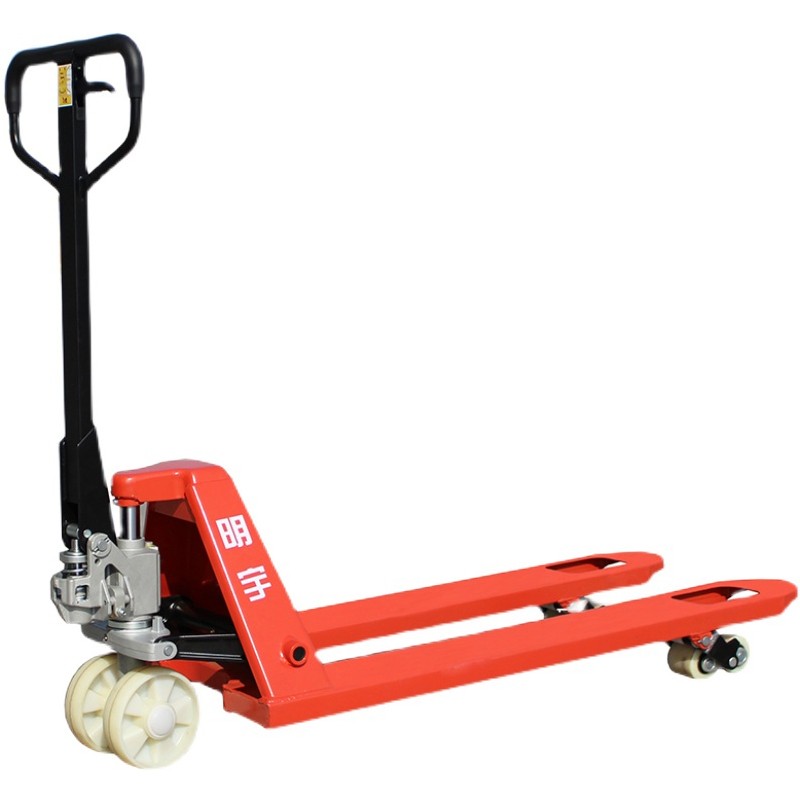

ZGLOADER / MYZG 1.6-3T Hand Pallet Truck

A practical solution for short-distance pallet handling

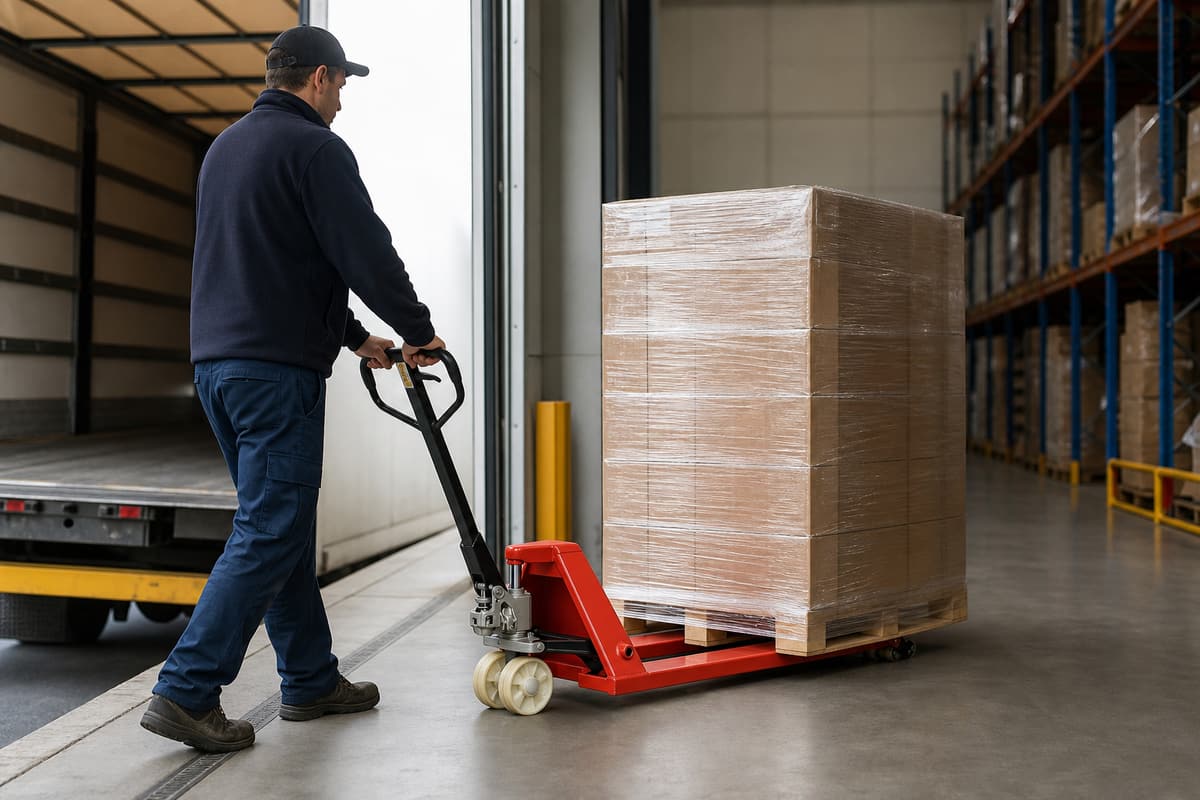

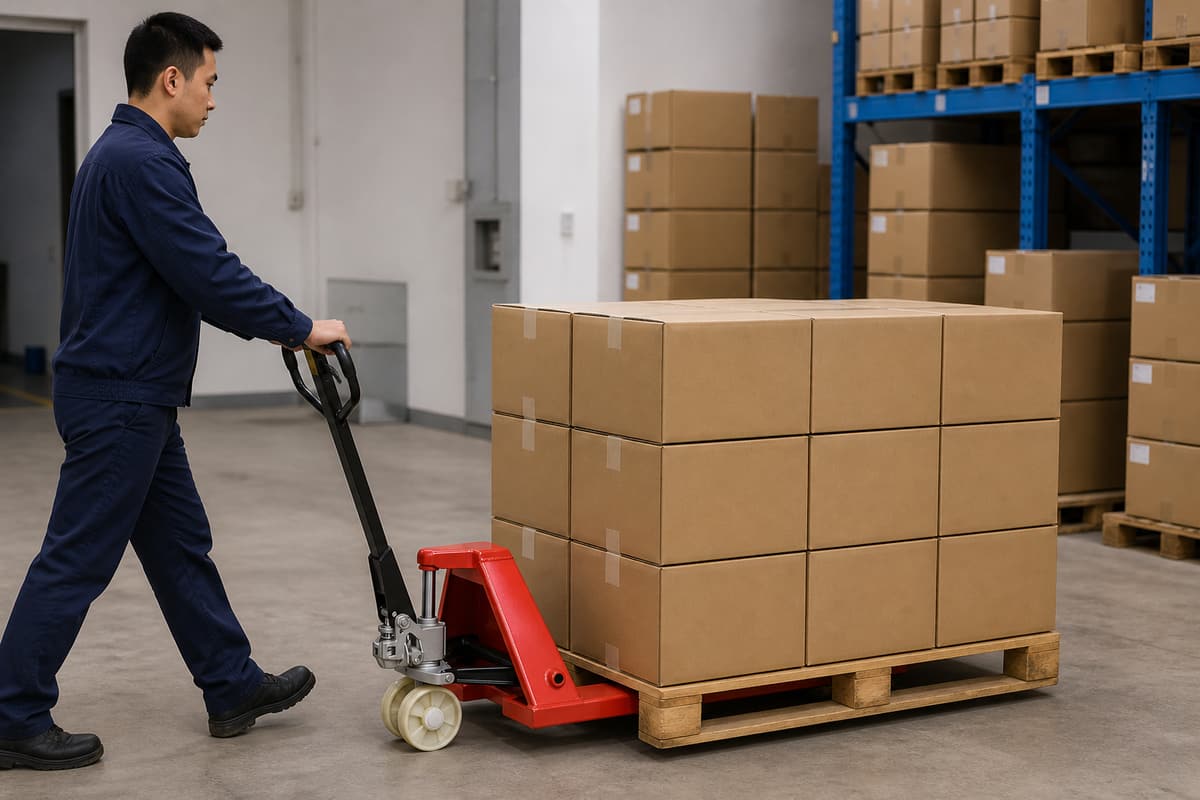

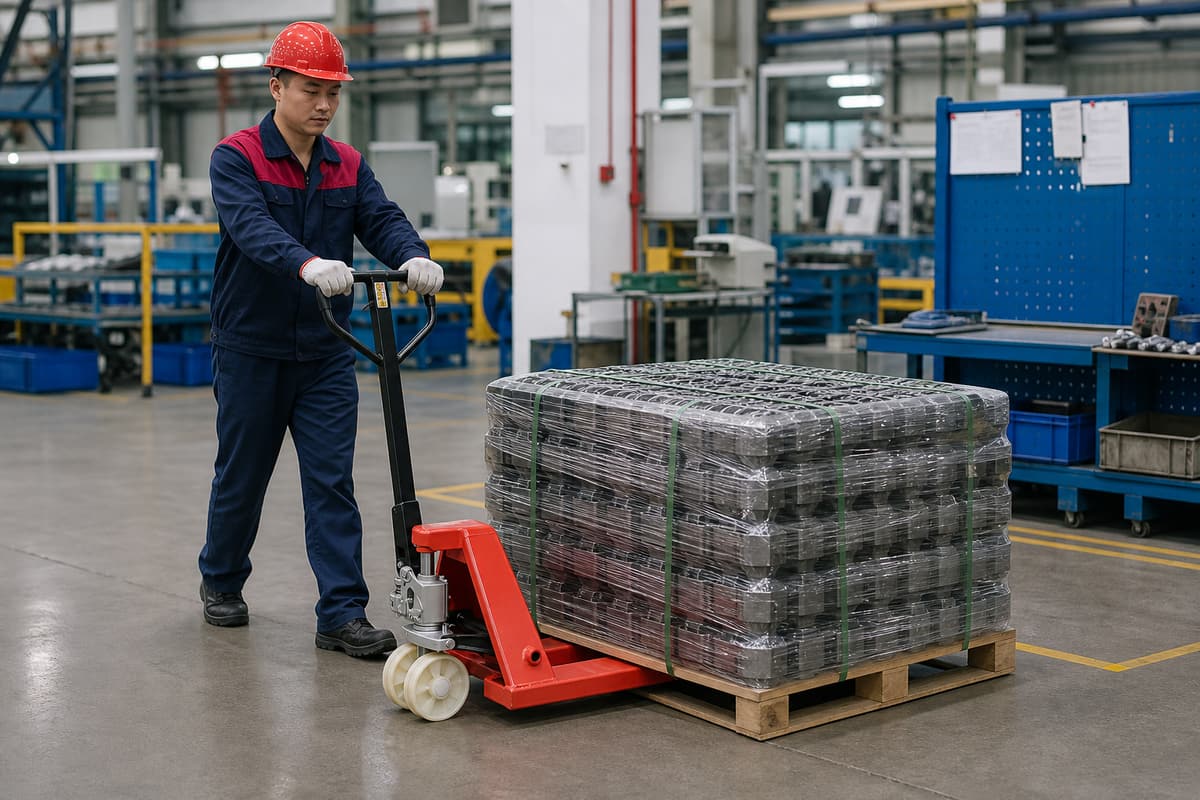

The ZGLOADER / MYZG 1.6-3T hand pallet truck is intended for short, controlled pallet movements in receiving areas, warehouses, retail backrooms and production plants. It answers a simple customer need: move standard palletized goods without the purchase, charging infrastructure or operating complexity of powered equipment. The compact manual hydraulic design is especially useful for occasional transfers, truck loading support, order staging and work beside forklifts or stackers. It should be selected for suitable floors and distances, because operator effort rises with load mass, poor wheels, gradients and long routes. The goal is an efficient manual workflow, not an attempt to replace powered travel where the duty is too demanding. browse the material-handling category.

review the verified 1.6-3T source product.

Verified series data and configuration control

The verified source covers DF1.68, DF2.0, DF2.5, DF3.0, AC2.5 and AC3.0 variants. Published rated capacities are 1680, 2000, 2500 and 3000 kg depending on model. Published lowered fork heights are 75 or 85 mm, and the table shows model-dependent lifting heights, steering wheels, load rollers, fork sections and fork widths. One source row is labeled as unladen weight although its values are expressed in millimetres; this page does not treat that row as machine weight. Fork length, actual unladen weight and every model-specific combination must be confirmed in the written quotation before purchase. read application and purchasing guidance

Applications, customer needs and model selection

Application selection starts with the real pallet and route. Record maximum load, pallet type, entry direction, opening height, fork pocket dimensions, required outside fork width, floor joints, thresholds, slope, turning space and daily moves. A 3-ton rating does not automatically make a truck suitable for every 3-ton load: the pallet must be sound, the mass centered and the floor able to support the combined load. For long travel, frequent cycles, steep ramps or high throughput, compare an electric pallet truck. For lifting pallets onto racks or vehicles, select appropriate stacking or lifting equipment rather than using a hand pallet truck beyond its purpose.

Safe operation and daily maintenance

Safe operation requires inspection before the first move. Check forks for bending or cracks, welds and frame condition, steering wheels, load rollers, axles, pump linkage, handle return, lowering control and hydraulic leakage. Insert both forks completely, center the load, raise only enough to clear the floor and keep hands and feet away from pinch points. Walk at a controlled pace, keep visibility, slow before turns, cross dock plates squarely and never carry riders. Park on level ground with forks fully lowered. Operator training and local workplace rules remain essential even though the truck is manually powered.

Total ownership cost and parts planning

Maintenance focuses on clean wheels, free-running rollers, lubricated pivot points, a correctly functioning pump and prompt replacement of damaged parts. Remove string, film and debris from axles; inspect polyurethane or nylon wheels for flat spots and chips; watch for oil around seals; and test controlled lowering without a load before service. Do not weld, straighten or modify load-bearing parts without an approved procedure. Service intervals depend on load, floor condition and cycle count. A simple log of inspections, repairs and replacement parts reduces unplanned downtime and helps a fleet owner compare performance across locations.

Trust, export service and dealer opportunity

Total ownership cost includes purchase price, wheels, rollers, bearings, seals, pump parts, handles, downtime and operator time. A lower initial price can be offset by unsuitable wheel material, poor pallet fit or repeated damage on rough floors. Dealers and rental companies can create value by surveying pallet dimensions, stocking common wear parts, documenting the delivered model, training users and providing a clear service route. Shandong Zhuogong Machinery equipment Co.,Ltd supports configuration and export communication. CE-related documentation and destination requirements depend on the final model and market and must be confirmed; EPA engine-emission rules do not apply to a manual hydraulic truck as they do to diesel machinery. No certificate number, customer identity or unsupported performance result is invented here.

Request a job-matched quotation

Send pallet dimensions, maximum load, fork-entry direction, route distance, floor and ramp conditions, daily cycles, wheel preference, destination and document requirements for a comparable quotation. contact the MYZG export team.
