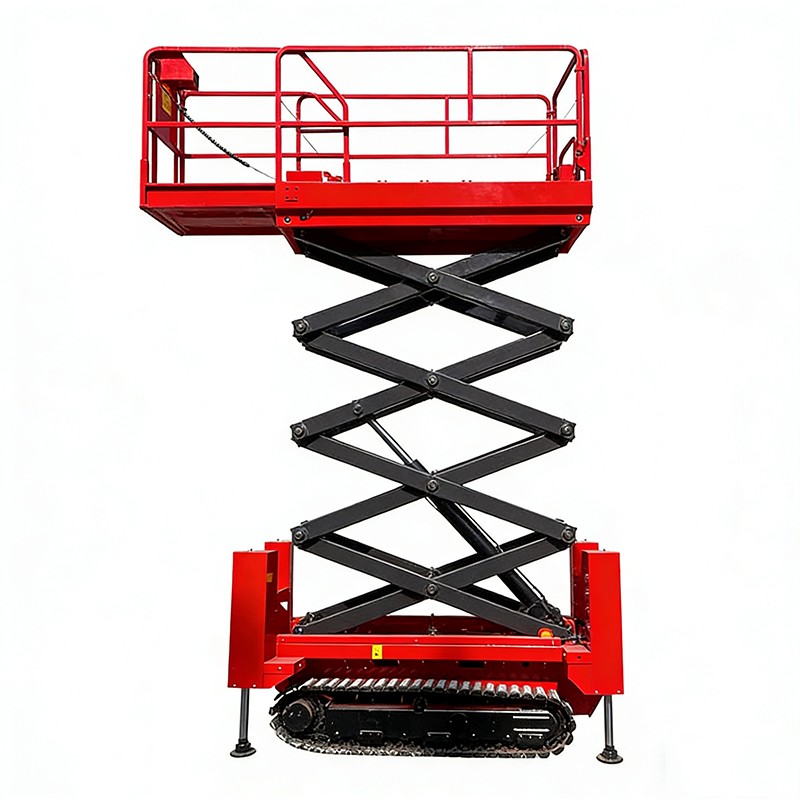

ZGFORKLIFT / MYZG ZG-LDZX Crawler Scissor Lift Platform
ZGFORKLIFT / MYZG ZG-LDZX Crawler Scissor Lift Platform
The ZG-LDZX series replaces wheels with low-ground-pressure tracks for mud, sand, turf and soft construction soil. Platform-height classes run from 6 to 14 m, reference width is about 1570–1640 mm and zero-radius track steering improves positioning. Power configuration, gradeability, load and optional leveling equipment must be confirmed on the final quotation. is designed for buyers who need repeatable elevated access where ordinary ladders, scaffolding or standard wheeled platforms create delays. Shandong Zhuogong Machinery equipment Co.,Ltd supplies the machine under ZGFORKLIFT / MYZG with configuration confirmation, export packing, documentation, spare-parts coordination and after-sales support. aerial-platform range.
Customer problem and job-site solution
The real purchase question is not simply maximum height. Buyers must match ground condition, route width, floor or soil bearing capacity, slope, obstacles, wind exposure, platform load, number of workers, tools and daily travel distance. A correctly selected platform reduces setup labor and repositioning while keeping the operator inside a guarded work area. Send site photos, route dimensions and work-point measurements before ordering.
Verified reference specifications
complete MYZG product catalog.
| Platform-height classes | 6 / 8 / 10 / 12 / 14 m |
| Overall length | Approx. 2780–3180 mm by class |
| Overall width | Approx. 1570–1640 mm by class |
| Platform size | 2.27 × 1.13 m; up to 2.63 × 1.13 m |
| Platform extension | 900 mm reference |
| Lift motor | 48 V / 4.5 kW reference |
| Travel motor | 48 V / 4 kW reference |
| Travel speed, stowed | 1.8 km/h reference |
| Battery options | 8 × 12 V, 200–240 Ah reference |
| Charger | 48 V / 30 A reference |
| Gradeability | 25% reference |
| Working-angle limit | 1.5°–3° reference |
| Machine weight | Approx. 2770–3980 kg |
Application scenarios
Typical work includes steel erection, façade and roofing service, lighting and utilities, warehouse or factory maintenance, agricultural infrastructure, event facilities and remote industrial projects. The final machine should be selected for the actual terrain and duty cycle. Indoor work favors quiet low-emission configurations; outdoor rough work may require traction, ground clearance, leveling supports and destination-compliant power.
Selection guide: choose by site, not height alone
Start with required working height and platform height as separate values. Add operator, tools and approved materials and keep the total inside the rated load. Measure gates, transport trailers, ramps, turning space and overhead clearance. Confirm whether the machine must drive while elevated, turn in place, cross soft ground or level on a slope. Never treat a series-range specification as a promise for every variant; the quotation must identify the exact model.
Buyer checklist and quotation data
A complete quotation should state model, working and platform heights, rated and extension-deck loads, platform dimensions, stored dimensions, weight, drive system, tyres or tracks, gradeability, allowable working angle, power source, battery or engine, charger, controls, emergency lowering, overload and tilt protection, packing dimensions, manuals, recommended spares and destination documents. Compare usable access and lifecycle support, not only the lowest price. application and buying guides.
Safety, leveling and daily inspection
Carry out the pre-use inspection in the delivered manual. Check guardrails, gate, controls, emergency stops, emergency descent, alarms, tilt and overload systems, hydraulic cylinder and hoses, scissor pivots, fasteners, wheels or tracks, brakes, batteries or engine, and every stabilizer or leveling component. Use firm ground within the approved limits, isolate the work zone and inspect overhead hazards. Never exceed the load, improvise height or use the platform as a crane.
Maintenance and lifecycle planning
Create a maintenance plan based on hours, environment and serial number. Keep the machine clean, lubricate approved pivots, inspect welds and pins, monitor hydraulic oil and leaks, test emergency functions and protect electrical connectors. For batteries, follow charging and storage guidance; for engines, maintain fluids, filters and cooling. Track or tyre wear, tension and damage must be corrected before operation. Record every inspection and repair with compatible parts.
Dealer, rental and fleet opportunity
Distributors and rental fleets can serve construction contractors, factories, warehouses, utilities, municipalities, agriculture, energy and maintenance companies. Qualify each lead by terrain, height, load, route, daily cycles and service distance. A professional demonstration should cover inspection, controls, leveling, safe travel, charging or fueling, emergency lowering and transport. Local parts identification, operator handover and planned inspections create recurring service value.
Parts, training and after-sales planning
Agree a commissioning and parts plan before shipment. Useful items may include filters, seals, hoses, contactors, switches, sensors, pins, wear pads, track or tyre service items and an approved charger or engine kit according to the selected configuration. Request manuals, wiring and hydraulic information, daily inspection sheets and parts identification. Clear serial-number records shorten diagnosis and help dealers respond without guessing.
Fleet economics and productivity
Productivity comes from fewer scaffold builds, less ladder movement and faster positioning between work points. Estimate hours saved per shift, transport cost, charging or fuel consumption, inspection time, utilization rate and expected resale condition. The most economical machine is the one that reaches the real work safely and remains supported throughout its service life. Rental fleets should track utilization, damage, battery or engine condition and preventive-maintenance cost by unit.
Compliance, export experience and service confidence
CE documentation and applicable aerial-work-platform requirements depend on the exact configuration and destination and must be confirmed in writing against the final serial-numbered machine. EPA engine requirements apply only where an engine and destination regulations require them; they do not automatically apply to battery-electric versions. MYZG supports production communication, export packing, shipping documents, parts and after-sales coordination, while buyers should verify every requested certificate before shipment. contact the MYZG export team.
Frequently asked questions
How is the correct height chosen?
Send the highest work point and obstacle layout. Confirm both working height and platform height on the final model sheet.
Can it work on a slope?
Only within the approved limits after the required leveling procedure. Ground strength and support contact must also be verified.
What information is needed for a quotation?
Send terrain photos, route dimensions, height, load, workers, duty cycle, power preference, destination port and required documents.
Are CE and EPA included?
Requested compliance documents must be confirmed for the exact configuration and destination before order; EPA is relevant only to applicable engine versions.
Request a site-matched quotation
Send a video of the access route, ground, slopes, obstacles and work points. MYZG will match the model, power, safety options, packing, spares and service plan and provide a project-based quotation rather than a misleading fixed price.
