In the intricate dance of warehouse logistics, where maximizing storage density and operational efficiency are paramount, the reach truck emerges as a pivotal performer. This specialized type of forklift, characterized by its unique pantograph or telescopic mast mechanism, offers a compelling solution for accessing and retrieving palletized goods at significant heights within narrow aisle configurations. Unlike traditional counterbalance forklifts, reach trucks are designed to "reach" beyond their stabilizing legs, allowing them to lift loads to impressive vertical elevations while maintaining a compact footprint. This technical article delves deep into the anatomy, operational principles, diverse applications, and crucial considerations surrounding reach trucks, illuminating their vital role in modern warehousing and material handling.
Deconstructing the Reach Truck: Anatomy and Operational Principles
To truly understand the capabilities of a reach truck, it's essential to dissect its key components and the mechanisms that govern its operation:
Mast and Reach Mechanism: This is the defining feature of a reach truck. Unlike the fixed mast of a counterbalance forklift, a reach truck's mast is mounted on a sliding carriage. This carriage is connected to either a pantograph mechanism (a series of linked arms that extend and retract) or a telescopic mechanism (nested sections that slide within each other). This "reach" capability allows the truck to extend the forks forward to pick up or deposit loads within racking, without the need for the entire truck to be positioned directly in front of the pallet.
Stabilizing Legs (Outriggers): Positioned at the front of the truck, these legs straddle the racking aisle, providing a stable base for lifting heavy loads at height. They typically house the load wheels, which support the weight of the truck and the load. The design of these legs dictates the minimum aisle width required for operation.
Drive Unit and Steer Axle: Located at the rear of the truck, the drive unit houses the motor and transmission responsible for propelling the truck. The steer axle allows for precise maneuvering within narrow aisles. Many modern reach trucks feature electric drive motors for quiet, emission-free operation and precise control.
Operator Compartment: Typically located above or between the stabilizing legs, the operator's compartment is designed for optimal visibility, especially when working at height. Controls are ergonomically positioned for ease of use during repetitive tasks. Many reach trucks feature stand-on operation, allowing for quick entry and exit, while some offer sit-down configurations for increased operator comfort during longer shifts.
Battery: Electric reach trucks are powered by large industrial batteries, providing sufficient power for extended operation. Battery charging and management are crucial aspects of reach truck operation.
Hydraulic System: A powerful hydraulic system powers the lift, lower, and reach functions of the mast and forks, enabling smooth and controlled movement of loads at height.
Control Systems: Modern reach trucks are equipped with sophisticated control systems, including proportional controls for precise movement, regenerative braking to conserve energy, and safety interlocks to prevent unsafe operation. Some advanced models feature laser positioning systems or height pre-selection functions to further enhance efficiency and accuracy.
The Reach Advantage: Why Choose a Reach Truck?
The unique design of the reach truck offers several distinct advantages that make it the preferred choice for specific warehousing applications:
High Storage Density: The ability to operate in very narrow aisles (VNA), often as narrow as 8-10 feet, significantly increases the number of pallet positions that can be accommodated within a given warehouse footprint. This vertical maximization is crucial in environments where space is at a premium.
Significant Lifting Heights: Reach trucks are engineered to lift loads to considerable heights, often exceeding 30 feet or more, allowing for full utilization of vertical storage space.
Compact Footprint: Compared to counterbalance forklifts with similar lifting capacities, reach trucks have a more compact overall length, enhancing maneuverability within confined spaces.
Precise Load Handling: The reach mechanism allows for accurate placement and retrieval of pallets within racking, minimizing the risk of damage to goods or the racking structure.
Operator Visibility: The elevated operator position and the open mast design typically provide excellent visibility of the load and the racking at height, contributing to safer and more efficient operation.
Electric Operation: The prevalence of electric-powered reach trucks offers benefits such as quiet operation, zero emissions, and lower operating costs compared to internal combustion engine forklifts in indoor environments.
Navigating the Warehouse Landscape: Diverse Applications of Reach Trucks
The specific features and capabilities of reach trucks make them ideally suited for a wide range of warehousing and material handling tasks:
High-Rack Warehousing: This is the primary domain of the reach truck. Their ability to operate in narrow aisles and lift to significant heights makes them essential for accessing and retrieving pallets stored in tall, dense racking systems.
Selective Pallet Racking: Reach trucks are highly effective in selective racking environments, where each pallet is individually accessible. Their maneuverability allows for efficient picking and put-away operations.
Double-Deep Racking: Some specialized reach truck models with extended reach capabilities can access pallets stored in double-deep racking systems, further increasing storage density.
Drive-In and Drive-Through Racking: While requiring careful maneuvering, reach trucks can be used in drive-in and drive-through racking systems, where pallets are stored in lanes and accessed from one or both ends.
Cold Storage Warehouses: Electric reach trucks are well-suited for cold storage environments due to their emission-free operation. Specialized models with climate-controlled cabins enhance operator comfort in these demanding conditions.
Food and Beverage Distribution: The clean and quiet operation of electric reach trucks makes them ideal for handling sensitive goods in the food and beverage industry.
Retail Distribution Centers: Reach trucks play a crucial role in the efficient storage and retrieval of goods in large retail distribution centers, supporting the fast-paced flow of merchandise.
Manufacturing Facilities: Reach trucks are used in manufacturing environments for storing raw materials, components, and finished goods in vertical racking systems, optimizing space utilization within the production area.
Order Picking at Height: While not their primary function, reach trucks equipped with walkie reach attachments or order picker platforms can be used for picking individual items from pallets stored at height.
Beyond the Basics: Specialized Reach Truck Variations
The core principles of the reach truck have been adapted and refined to create specialized variations catering to specific needs:
Straddle Reach Trucks: These are the most common type, where the stabilizing legs "straddle" the bottom pallet. They offer excellent stability and lifting capacity.
Reach Trucks with Telescopic Forks: These models feature forks that can extend and retract independently, allowing for double-deep pallet handling without the need for the entire reach mechanism to extend fully.
Multi-Directional Reach Trucks: Also known as four-way reach trucks, these specialized machines can move in multiple directions (forward, backward, sideways), enabling them to handle long loads in narrow aisles and navigate complex warehouse layouts.
Articulated Reach Trucks: These trucks feature an articulated chassis that allows them to pivot, reducing the turning radius required for operation in very narrow aisles. They often combine the benefits of reach capability with exceptional maneuverability.

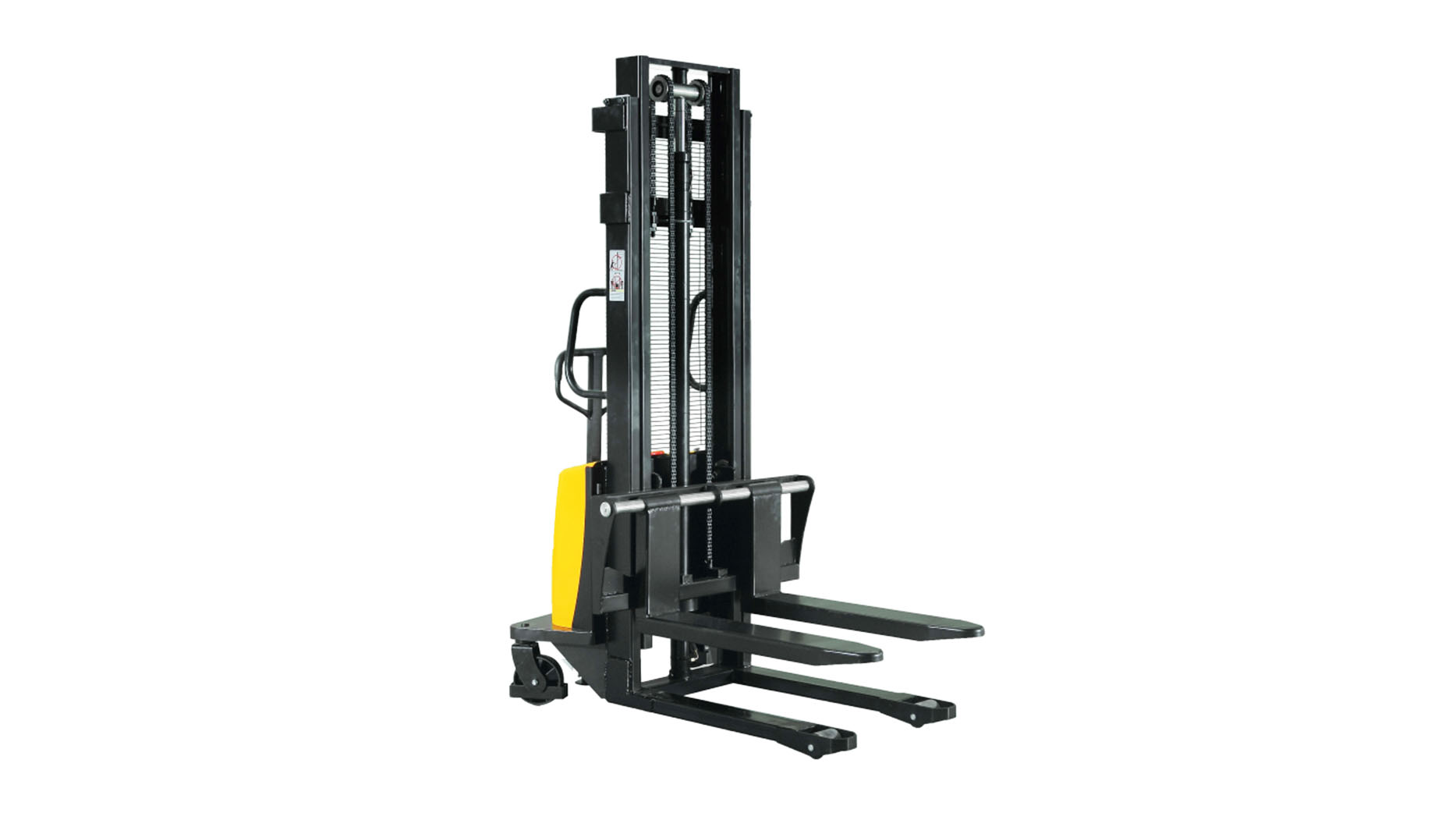

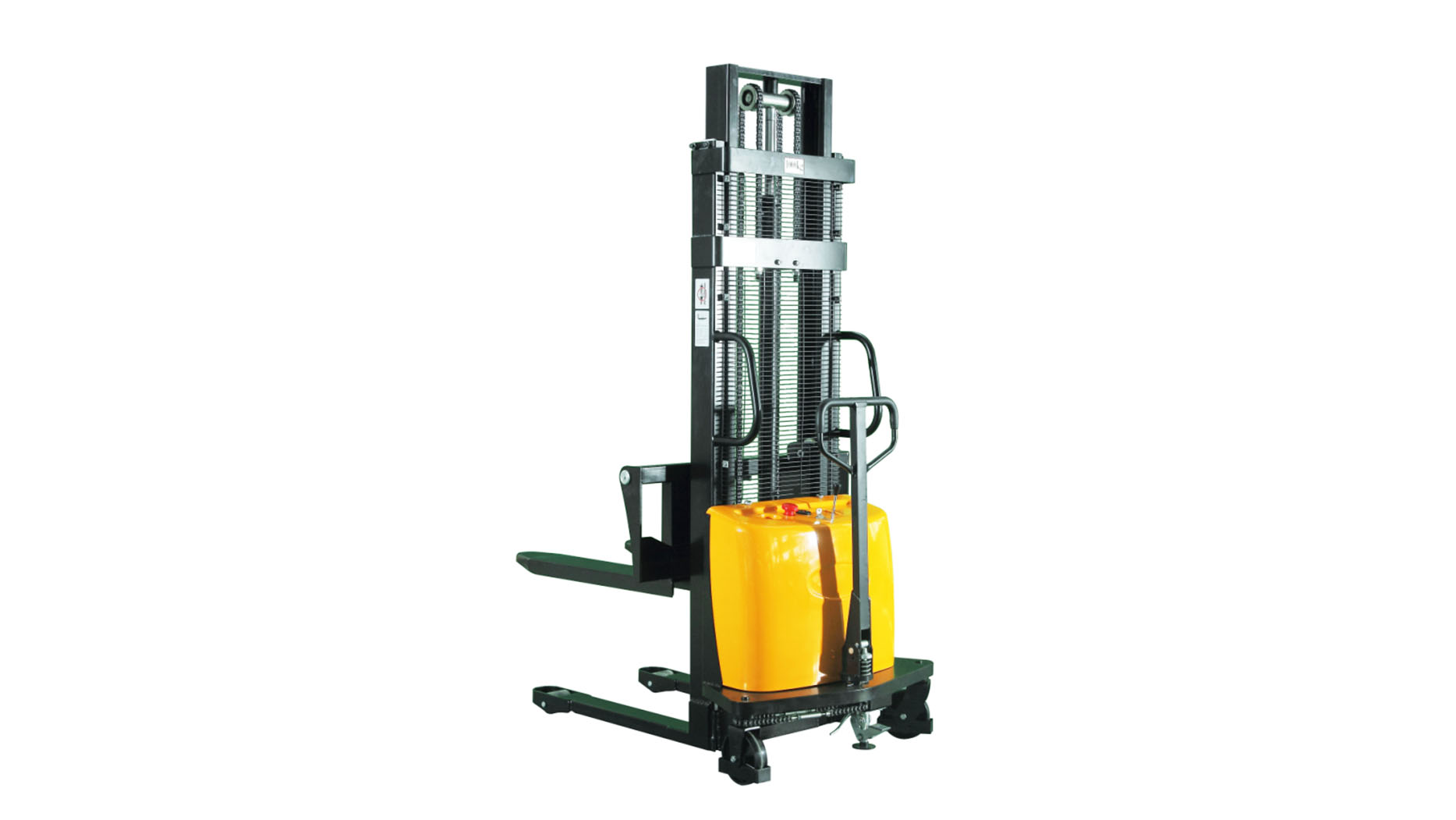

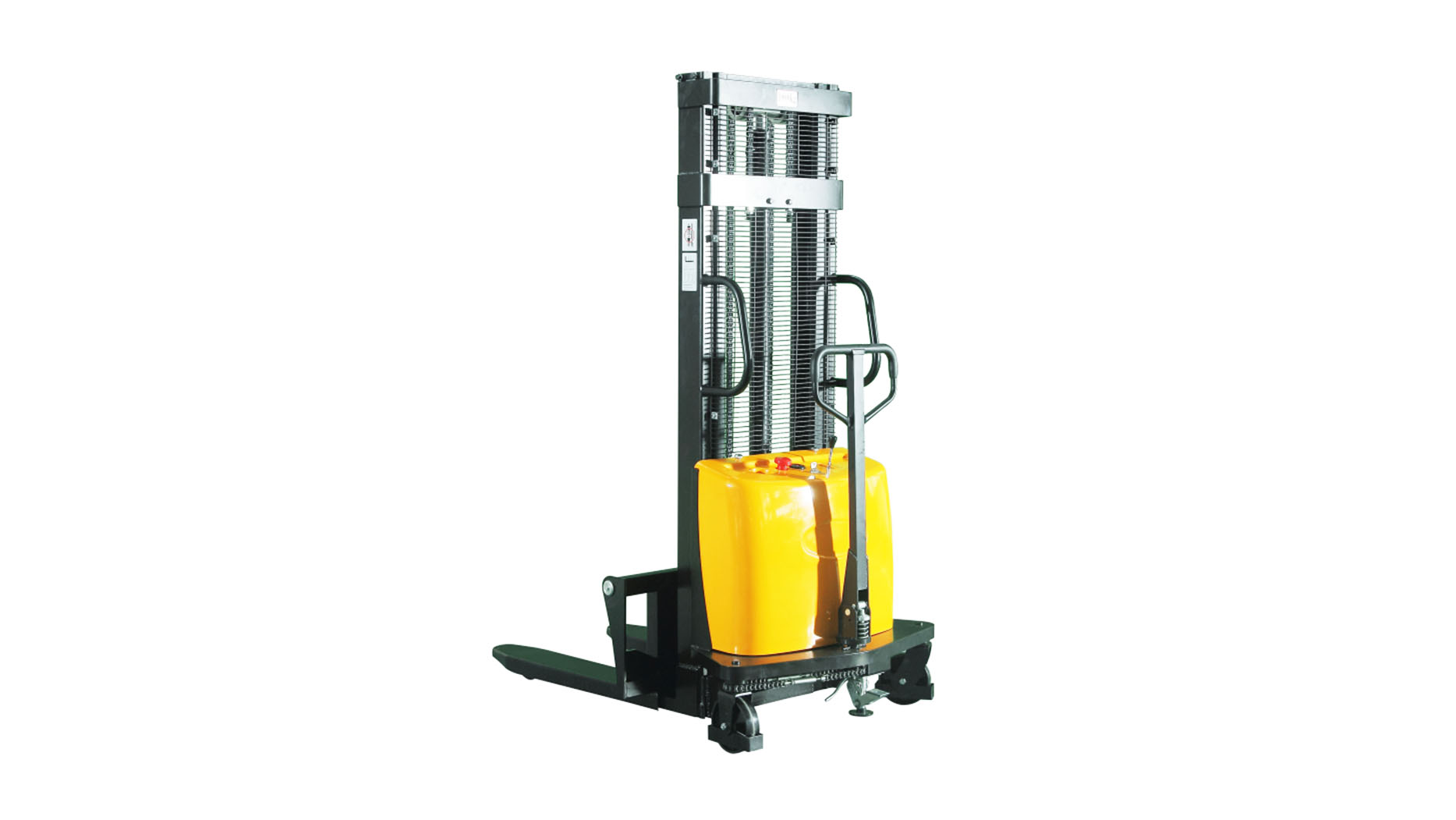

Walkie Reach Trucks: These are smaller, pedestrian-operated reach trucks suitable for lower lifting heights and less intensive applications. The operator walks alongside the truck and controls its movement.
Crucial Considerations for Reach Truck Operation:
While offering significant advantages, the implementation and operation of reach trucks require careful consideration of several factors:
Aisle Width Requirements: The design of the stabilizing legs and the overall maneuverability of the truck dictate the minimum aisle width required for safe and efficient operation. Very Narrow Aisle (VNA) racking systems are specifically designed to accommodate reach trucks.
Floor Conditions: Reach trucks typically operate on smooth, level concrete floors. Uneven or sloped surfaces can compromise stability and safety.
Operator Training: Proper training is essential for reach truck operators to ensure safe and efficient operation, particularly when working at height and maneuvering in narrow aisles. Operators must be proficient in load handling, maneuvering, and safety procedures.
Load Stability: Ensuring that loads are properly wrapped and stable is crucial when lifting and transporting at height. Unstable loads pose a significant safety risk.
Battery Management: For electric reach trucks, proper battery charging, maintenance, and rotation are essential to maximize uptime and battery lifespan.
Maintenance: Regular maintenance is vital to ensure the safe and reliable operation of reach trucks, particularly the complex hydraulic and reach mechanisms.
Safety Systems: Modern reach trucks are equipped with various safety features, such as overload protection systems, automatic braking, and operator presence sensors. Understanding and adhering to these safety features is paramount.
Racking Compatibility: The dimensions and load-bearing capacity of the racking system must be compatible with the reach truck's lifting capacity and operating parameters.
Conclusion: Mastering Vertical Space with Reach Trucks
Reach trucks stand as a testament to the ongoing innovation in warehouse logistics. Their unique ability to combine compact maneuverability with significant vertical reach has revolutionized high-density storage and retrieval operations. By understanding their intricate mechanics, diverse applications, and crucial operational considerations, businesses can effectively leverage the capabilities of reach trucks to optimize warehouse space utilization, enhance efficiency, and streamline material flow. As warehousing demands continue to evolve, the reach truck will undoubtedly remain a vital tool for mastering the vertical dimension and navigating the complexities of modern supply chains.
