The fork lift truck, often simply referred to as a forklift, is an ubiquitous yet often underestimated piece of machinery that forms the backbone of countless industries worldwide. From the organized chaos of warehouses and distribution centers to the demanding environments of construction sites and manufacturing plants, these powerful and versatile vehicles are essential for the efficient and safe movement of materials. But what exactly is a fork lift truck? This technical article will delve deep into the anatomy, functionality, diverse types, underlying principles, and crucial considerations surrounding this indispensable workhorse of modern industry.
Defining the Core: Anatomy and Basic Functionality
At its most fundamental, a fork lift truck is a powered industrial truck used to lift and move materials over short distances. Its defining characteristic is the fork assembly, typically consisting of two parallel, prong-like arms (the forks) that are inserted under a load, usually supported by a pallet or skid. The forklift then uses a hydraulic lifting system to raise and lower this load.
The core components of a typical fork lift truck include:
Frame: The robust structural foundation of the forklift, providing stability and supporting all other components.
Power Source: This can vary depending on the type of forklift and includes:
Internal Combustion (IC) Engines: Powered by fuels like propane (LP gas), diesel, or gasoline.
Electric Motors: Powered by rechargeable batteries.
Mast: The vertical assembly that raises and lowers the load. It consists of interlocking rails that provide stability and support for the lifting mechanism. Masts can be single-stage (fixed height), two-stage (duplex), three-stage (triplex), or even four-stage (quad) to achieve varying lift heights.
Carriage: A platform that travels up and down the mast, supporting the fork assembly and any attachments.
Fork Assembly: The primary load-engaging component, consisting of two adjustable forks that slide along the carriage.
Hydraulic System: This system powers the lifting and lowering of the mast and carriage, as well as the tilting of the mast (forward and backward for load stability). It comprises a hydraulic pump, cylinders, valves, and hoses.
Counterweight: A heavy mass, typically located at the rear of the forklift, that provides stability and prevents the forklift from tipping forward when carrying a load.
Wheels/Tires: Providing mobility, tires can be pneumatic (air-filled for rough terrain), solid (for smooth indoor surfaces), or cushion (solid rubber for a balance of traction and durability on smooth surfaces).
Operator Compartment: The area where the operator controls the forklift, typically including a seat, steering wheel or tiller, levers or joysticks for controlling the mast and forks, and pedals for acceleration and braking.
Overhead Guard: A safety structure designed to protect the operator from falling objects.
The basic operation involves the operator positioning the forks under the load, using the hydraulic controls to lift the load to the desired height, transporting it to the intended location, and then lowering the load. The ability to tilt the mast backward helps to secure the load during transport, while forward tilt assists in placing or picking up loads.
A Diverse Fleet: Types of Fork Lift Trucks
Forklifts are not a one-size-fits-all solution. A wide variety of types exist, each designed to excel in specific applications and environments:
1. Counterbalance Forklifts: The most common type, characterized by the counterweight at the rear. They are versatile and can handle a wide range of indoor and outdoor tasks. They are further categorized by their power source (electric, LP gas, diesel, gasoline) and tire type (pneumatic, solid, cushion).
Electric Counterbalance: Ideal for indoor use due to zero emissions and quiet operation. Advancements in battery technology (including lithium-ion) are increasing their runtime and efficiency.
Internal Combustion (IC) Counterbalance: More powerful and often preferred for outdoor applications or heavy-duty indoor tasks where ventilation is adequate. LP gas offers a cleaner burning option compared to diesel or gasoline for indoor use.
Reach Trucks: Specifically designed for warehouse operations with narrow aisles and high racking systems. They feature outrigger legs for stability and a mechanism (pantograph or moving mast) that allows the forks to extend forward to reach loads in racking.
3. Order Pickers: Also known as stock pickers, these forklifts allow the operator to be lifted with the forks to manually select individual items from high shelves.
4. Pallet Jacks (Walkie/Rider): Used for horizontal movement of palletized loads over short distances. Walkie pallet jacks are controlled by an operator walking behind, while rider versions allow the operator to stand or sit on the truck.

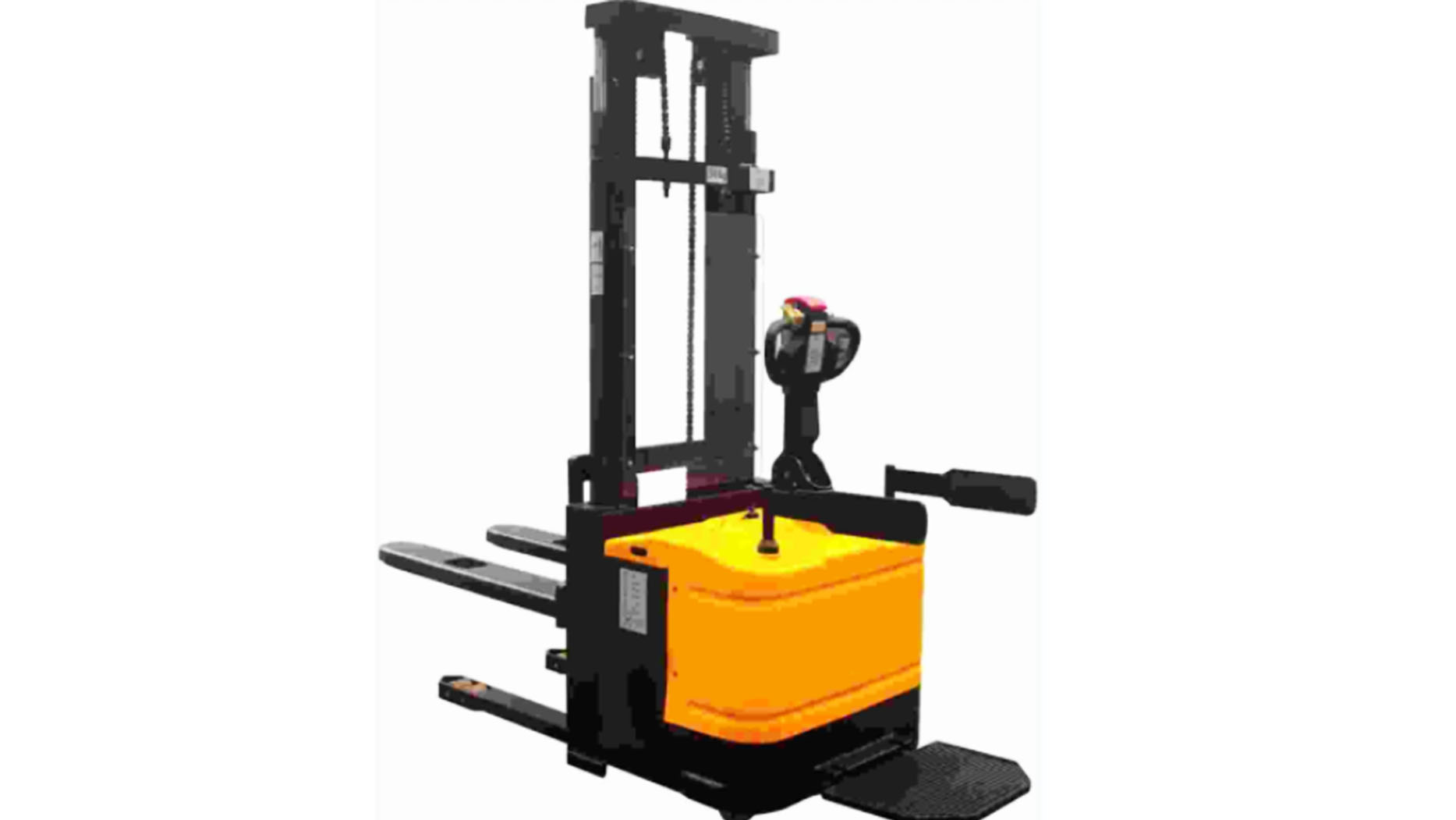

5. Straddle Stackers: Similar to pallet jacks but with the ability to lift loads to moderate heights for stacking. They have outrigger legs that straddle the load.
6. Rough Terrain Forklifts: Built with large pneumatic tires and powerful engines, these forklifts are designed to operate on uneven and challenging outdoor terrains, such as construction sites and lumberyards.
7. Telescopic Handlers (Telehandlers): While often considered a separate category, telehandlers can be equipped with forks and perform lifting and moving tasks. Their extendable boom provides significant reach and lifting height, making them versatile for construction, agriculture, and warehousing.
8. Side Loader Forklifts: Designed to lift and transport long loads, such as pipes, lumber, and steel beams, by carrying them parallel to the direction of travel. This allows for easier navigation in narrow aisles.
The Underlying Principles: Physics and Engineering in Action
The operation of a forklift relies on fundamental principles of physics and engineering:
Leverage and Counterbalance: The counterweight at the rear acts as a lever to balance the weight of the load carried on the forks at the front. The fulcrum of this lever is the front axle. Understanding the forklift's load capacity and load center (the distance from the mast to the center of the load) is crucial to prevent tipping. Overloading or having an off-center load can shift the center of gravity beyond the stability triangle (formed by the front wheels and the center of the rear axle), leading to a dangerous tipping situation.
Hydraulics: The hydraulic system utilizes Pascal's principle, where pressure applied to a confined fluid is transmitted equally in all directions. The hydraulic pump creates pressure, which is then directed by valves to hydraulic cylinders that extend or retract, raising and lowering the mast and tilting the carriage.
Stability: Forklift stability is a complex interplay of factors including the forklift's weight, wheelbase, center of gravity (both empty and loaded), load weight, load center, and the angle of the mast and terrain. Manufacturers provide load capacity charts that specify the maximum permissible load for different load centers and lift heights.
Power Transmission: Depending on the type, power is transmitted from the engine or electric motor to the wheels through various systems, including direct drive, hydrostatic transmissions (offering smooth and precise control), or electric drive systems.
Crucial Considerations: Safety, Operation, and Maintenance
Operating a forklift safely and efficiently requires adherence to strict guidelines and proper training:
Operator Training and Certification: Operating a forklift without proper training is extremely dangerous and illegal in many jurisdictions. Certified training programs cover safe operating procedures, load handling, stability principles, pre-shift inspections, and potential hazards.
Pre-Shift Inspections: Before each use, a thorough inspection of the forklift is essential to identify any potential mechanical issues, such as leaks, worn tires, or malfunctioning controls.
Load Capacity and Load Center Awareness: Operators must always be aware of the forklift's load capacity and the load center of the items being lifted. Exceeding the rated capacity or having an improperly balanced load is a leading cause of accidents.
Safe Operating Speeds: Operating forklifts at safe speeds, especially when carrying loads, is crucial to maintain control and prevent accidents.
Awareness of Surroundings: Operators must be constantly aware of their surroundings, including pedestrians, other equipment, and obstacles.
Proper Load Handling Techniques: Loads should be lifted and lowered smoothly and evenly. Sharp turns with elevated loads should be avoided.
Maintenance: Regular maintenance, as specified by the manufacturer, is vital for ensuring the safe and reliable operation of the forklift and prolonging its lifespan. This includes checking fluid levels, inspecting hoses and belts, lubricating moving parts, and ensuring proper battery maintenance for electric models.
The Future of Forklifts: Innovation and Automation
The forklift industry continues to evolve with advancements in technology:
Automation: Automated Guided Vehicles (AGVs) and autonomous forklifts are increasingly being adopted in warehouses and manufacturing facilities to improve efficiency and reduce labor costs. These robots use sensors, cameras, and sophisticated software to navigate and perform material handling tasks without human intervention.
Alternative Power Sources: The shift towards sustainability is driving the development and adoption of electric forklifts with longer run times and faster charging capabilities, as well as the exploration of other alternative fuels like hydrogen fuel cells.
Telematics and Fleet Management Systems: These systems provide real-time data on forklift usage, location, and maintenance needs, enabling businesses to optimize their fleet management, improve efficiency, and enhance safety.
Advanced Safety Features: Ongoing research and development are leading to the integration of more sophisticated safety features, such as proximity sensors, collision avoidance systems, and dynamic stability control.
Conclusion: The Indispensable Workhorse
The fork lift truck is far more than a simple machine with prongs. It is a sophisticated piece of engineering that plays a critical role in the smooth and efficient flow of goods across a vast spectrum of industries. Its diverse types, powered by various sources and operating on fundamental principles of physics and hydraulics, are tailored to meet specific material handling challenges. Understanding the anatomy, functionality, safe operation, and ongoing evolution of the forklift is essential for anyone involved in logistics, warehousing, construction, manufacturing, or any industry that relies on the movement of materials. As technology continues to advance, the fork lift truck will undoubtedly remain an indispensable workhorse, adapting and evolving to meet the ever-increasing demands of a globalized economy.
