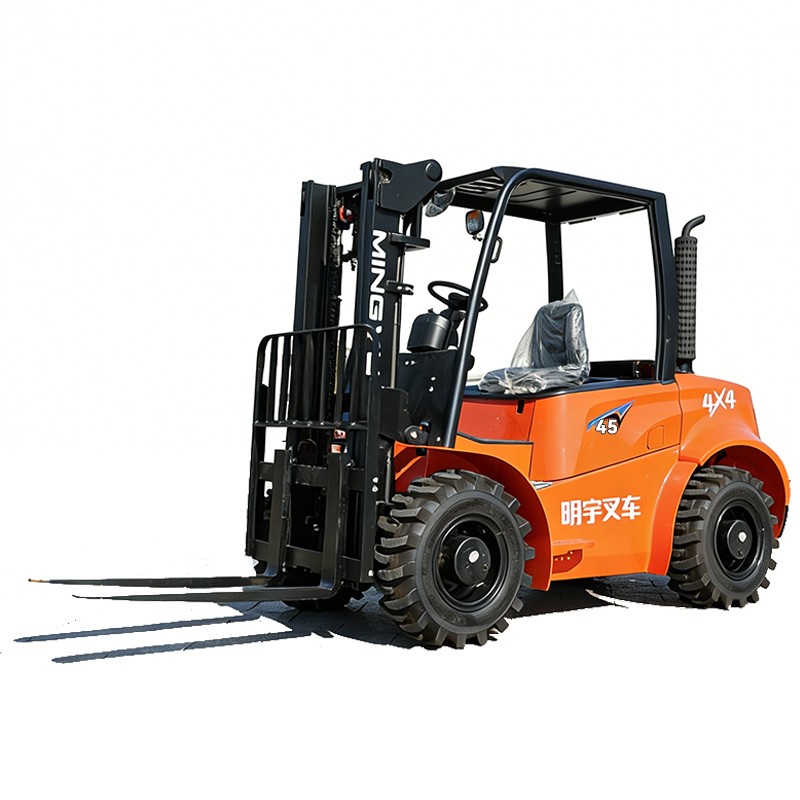

MY-CPCY45 Rough Terrain Trucks
MYZG 4.5T Heavy-Duty Off-Road Forklift: The Ultimate All-Terrain Solution for Challenging Environments
When standard forklifts reach their limits, the MYZG 4.5T Off-road Forklift takes over. Engineered by Shandong Mingyu Heavy Industry, this robust 4x4 powerhouse is specifically designed to navigate muddy construction sites, uneven agricultural terrain, and rugged industrial yards where precision and stability are non-negotiable.
With a rated lifting capacity of 4500kg (4.5 Tons) and a high-clearance chassis, the MYZG 4.5T model combines the lifting power of an industrial forklift with the agility of an all-terrain vehicle.
Parameter
| Y45 | ||||
| reted lifting capacity | KG | 4500 | ||
| load centre distance | mm | 600 | ||
| opration mode | Driving style | |||
| Lenth | with fork | mm | 4535 | |
| without fork | mm | 3315 | ||
| Width | mm | 1590 | ||
|
Full
height
|
hight of
no-lifting
|
mm | 2350 | |
|
hight of
roof guard
|
mm | 2425 | ||
|
Max height during
operation
|
mm | 4370 | ||
| Wheel base | mm | 2030 | ||
| Front overhang | mm | 565 | ||
| Rear overhang | mm | 720 | ||
| Front track width | mm | 1260 | ||
| Rear track width | mm | 1260 | ||
| Ground clearance | mm | 290 | ||
| Lifting height | mm | 3000 | ||
| Free lifting height | mm | |||
| Fork adjustment range | mm | |||
| Min turning radius | 3835 | |||
|
Max right angle channel
width
|
mm | 5820 | ||
| Gantry inclination angle | (°) | 10/12 | ||
|
Max lifting speed without
load
|
mm/s | 450 | ||
|
Max lifting speed with
full load
|
mm/s | 400 | ||
|
Max operating speed
without load
|
Kn/h | 30 | ||
|
Max operating speed
with load
|
Kn/h | 28 | ||
|
Maxi climbing slope with
full load
|
% | 30 | ||
| Overallweight | Kg | 5430 | ||
| Number of wheel | 2/2 | |||
| Tyre | Pneumatic tire | |||
| Front tyre size | 20.5 | |||
| Rear tyre size | 20.5 | |||
| Engine model | Xichai/ Quanchai/Cummins/Mitsubishi | |||
Superior Performance: Built for the Toughest Terrain
The core of the MYZG 4.5T's dominance lies in its specialized off-road architecture. Unlike urban forklifts, this model features a 290mm ground clearance, allowing it to clear obstacles, rocks, and thick mud without bottoming out.
High-Torque Engine and Speed
Powered by the high-performance V28A-50C42 engine, which delivers a rated power of 36.8 kW at 2400 rpm, this forklift provides the necessary torque to carry heavy loads up steep inclines.
Max Travel Speed: Reach up to 30 km/h (unloaded), ensuring quick transit between different areas of your job site.
Exceptional Gradeability: With a 30% maximum climbing slope under full load, the MYZG 4.5T can conquer ramps and natural hills that would stop other machines.
Optimized Design for Maximum Productivity
Precision Lifting and Handling
The MYZG 4.5T is not just about raw power; it’s about controlled performance. The hydraulic system is tuned for speed and safety:
Lifting Speed: Elevate full loads at 400 mm/s and empty forks at 450 mm/s.
Gantry Stability: The mast features a tilt angle of 10° forward and 12° backward, providing excellent load positioning flexibility on uneven surfaces.
Heavy-Duty Chassis and Tires
Equipped with large-diameter pneumatic tires (Small 20.5 front / 20.6 rear), the forklift distributes weight evenly to prevent sinking in soft soil. The 2030mm wheelbase and 1260mm track width provide a stable footprint, ensuring the operator feels secure even when the mast is fully extended to its 4370mm maximum height.
Detail
Why Choose the MYZG 4.5T Off-Road Forklift?
4WD Capability: Specifically designed for four-wheel-drive performance to tackle sand, snow, and gravel.
Durability: Built with high-strength steel and reinforced components to withstand the vibrations and impacts of rough terrain.
Ergonomic Operator Station: The driving style configuration offers a high seating position for 360-degree visibility—critical for safety on busy, unpredictable construction sites.
Maintenance Friendly: Easy access to the engine compartment and hydraulic points ensures that your machine stays on the job and out of the shop.
