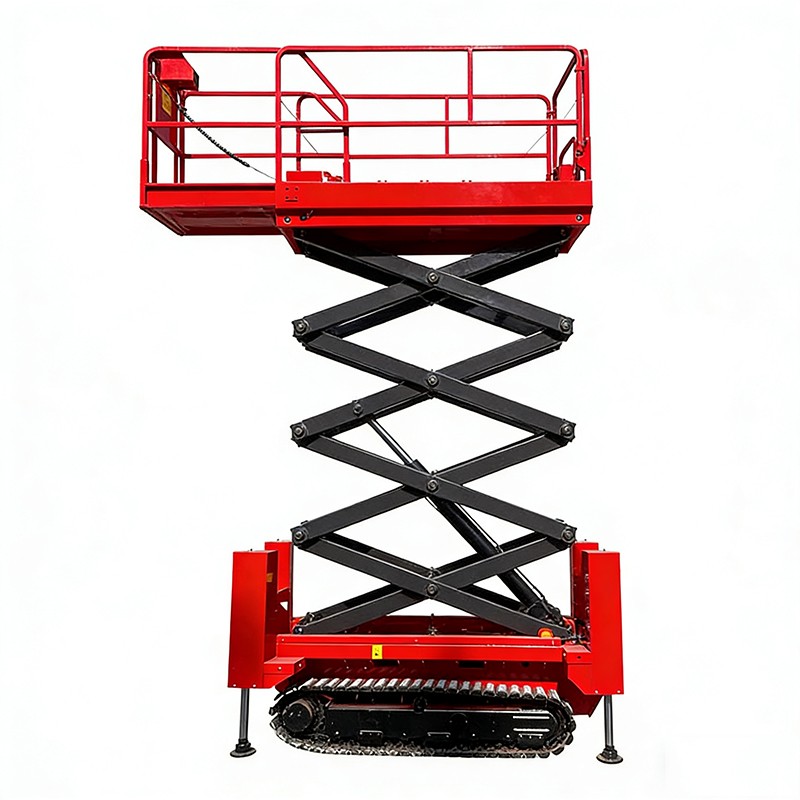

MYZG ZG-LDZX Series Crawler Scissor Lift Platform

Short Description:

Conquer the toughest job sites with the MYZG ZG-LDZX Diesel Crawler Scissor Lift. Featuring heavy-duty tracks, 12m working height, and 30%+ gradeability. Perfect for mud, sand, and slopes. High-strength manganese steel construction with 500kg capacity. Factory-direct quotes from SDZG/MYZG....

Maxmum platfom height: 6-14m
Platform extersionsize: 900m
charger: 48/30VIA

Ask for a quote

Product Details

Product Tags

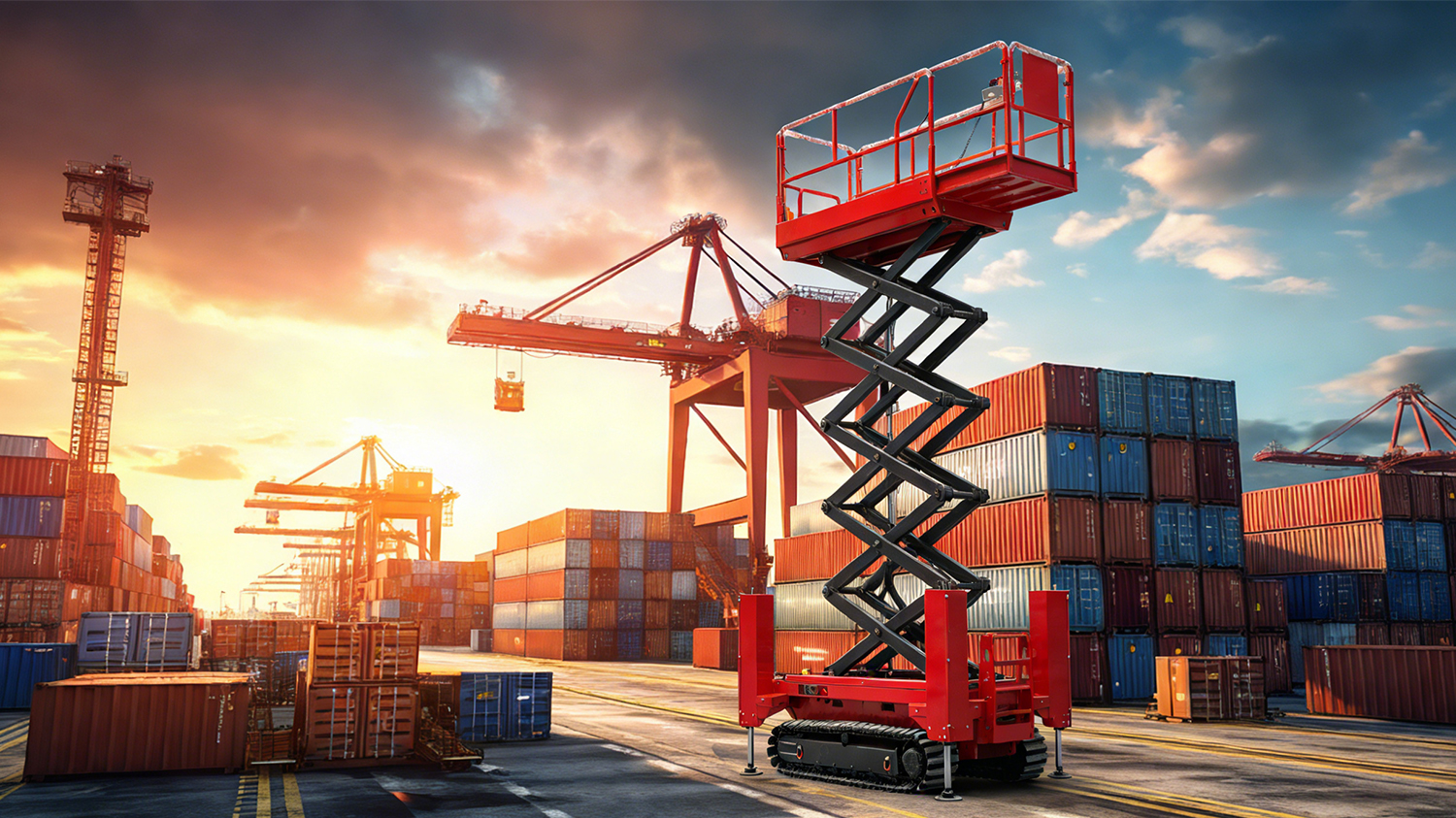

MYZG ZG-LDZX 6m-12m Diesel Crawler Scissor Lift: Extreme All-Terrain Mobility for the Toughest Sites

When wheels aren't enough, tracks are the answer. The MYZG ZG-LDZX Diesel Crawler Scissor Lift is the ultimate solution for aerial work on soft soil, mud, sand, and steep slopes where traditional wheeled lifts simply cannot go. Engineered by Shandong Mingyu Heavy Industry (SDZG), this "tank-style" lift combines the high-torque power of a diesel engine with a heavy-duty rubber track system, providing unmatched stability and traction in the most unforgiving environments.

Available in heights from 6 to 12 meters, the ZG-LDZX is purpose-built for outdoor construction, agricultural infrastructure, and remote industrial maintenance.

Crawler Dominance: Go Where Others Can't

The defining feature of the ZG-LDZX series is its integrated crawler chassis. This design drastically reduces ground pressure, preventing the machine from sinking into soft terrain.

Heavy-Duty Diesel Engine: Powered by a high-torque, liquid-cooled diesel engine, this lift provides the consistent horsepower required for simultaneous traveling and lifting on rugged terrain.

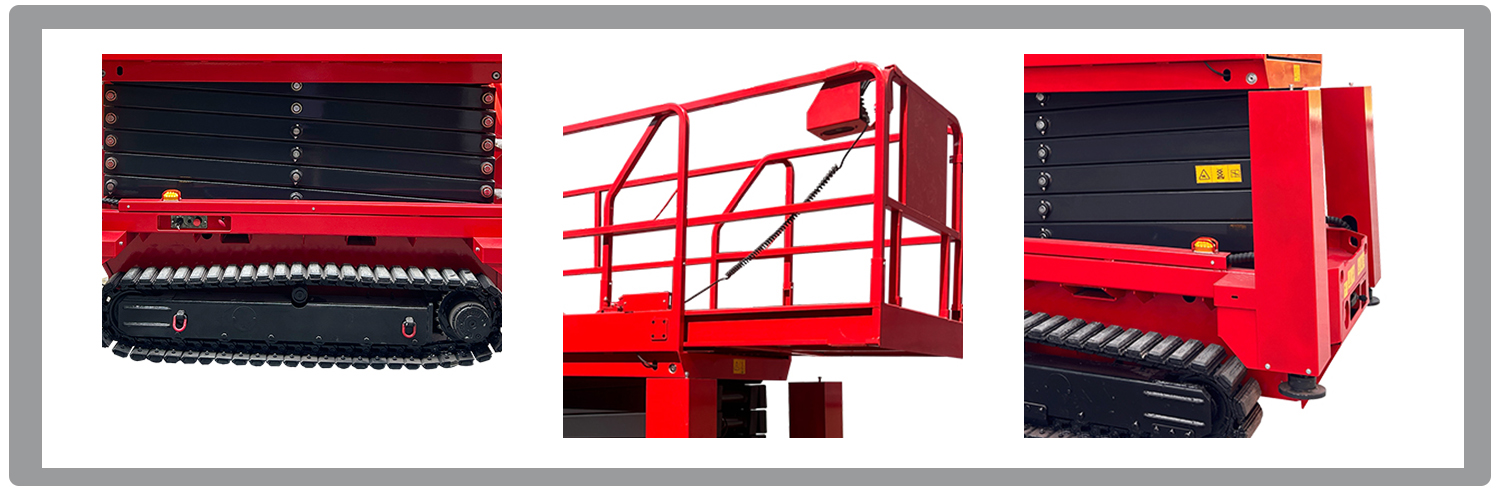

Tank-Style Track System: Equipped with durable, steel-reinforced rubber tracks that distribute weight evenly. This allows the lift to traverse muddy construction sites, gravel pits, and natural turf without losing traction.

Superior Gradeability: With an impressive 30%-40% gradeability, the ZG-LDZX can climb embankments and navigate natural hillsides that would be impossible for wheeled scissor lifts.

Zero-Radius Turning: The crawler drive allows the machine to pivot in place, offering exceptional maneuverability in tight, cluttered outdoor workspaces.

Technical Specifications: ZG-LDZX Diesel Series

		6m	8m	10m	12m	14m
Maximum platform height	m	6	8	10	12	14
overall length	mm	—	2780	—	—	3180
overall width	mm	—	1570	—	—	1640
Overall height (guardrail not folded)	mm	2350	2470	2640	—	2740
Overall height (guardrail folding)	mm	1840	1920	2110	—	2160
Work platform size	mm	—	2270*1130	—	2270*1120	2630*1130
Platform extension size	mm	—	900	—	—	—
Minimum ground clearance (collapsed state)	mm	0	0	0	0	0
Minimum ground clearance (lifting state)	mm	0	0	0	0	0
minimum turning radius	mm	0	0	0	0	0
lifting motor	V/Kw	—	48V/4.5KW	—	—	—
Traveling motor	V/Kw	—	48V/4KW	—	—	—
Equipment walking speed (collapsed state)	Km/h	—	1.8	—	—	—
Equipment walking speed (lifting status)	Km/h	0	0	0	0	0
Ascending/Descending Speed	sec	—	80/35	—	—	—
storage battery	V/Ah	8x12W240Ah	8x12W200Ah	8x12w200Ah	8xBW240Ah	8x12v200Ah
charger	V/A	—	48/30	—	—	—
gradeability	%	—	25	—	—	—
Maximum allowable working angle	—	—	1.5-3	—	—	—
Overall weight	Kg	2770	2970	3270	3680	3980

Built for Safety in Unpredictable Conditions
Working on uneven ground demands superior safety engineering. The ZG-LDZX is designed to keep your operators secure regardless of the terrain.

1. High-Stability Scissor Stack
The lifting arms are constructed from high-tensile manganese steel rectangular tubes. This rigid structure minimizes platform sway even when the lift is at its maximum 12-meter extension in windy outdoor conditions.

2. Intelligent Leveling & Alarms
Equipped with sensitive tilt sensors, the machine provides audible and visual alerts if the chassis exceeds safe leveling limits. For extreme slopes, hydraulic outriggers can be added to ensure a perfectly level base before ascent.

3. Emergency Protection
Emergency Lowering Valve: Allows the platform to be lowered safely to the ground in the event of an engine failure.

Overload Protection: A pressure relief valve prevents the hydraulic system from lifting more than the rated capacity, protecting the structural integrity of the tracks and scissor stack.

Performance Features for the Job Site

Large Workspace: The platform offers plenty of room for multiple workers and heavy tools. The 900mm extension deck allows operators to reach over obstacles like pipes or machinery.

Easy Maintenance: The diesel engine is positioned for easy access to filters, fluids, and belts, ensuring your machine stays in peak condition with minimal downtime.

Proportional Controls: High-precision joysticks allow for smooth, gradual control of both the travel speed and the lifting height, ensuring surgical precision when positioning the platform.

Applications: The All-Terrain Specialist
The ZG-LDZX Diesel Crawler Lift is the preferred choice for:

Soft-Soil Construction: Moving across mud and sand in the early stages of building projects.

Agriculture & Forestry: Fruit picking, greenhouse maintenance, and tree trimming on natural soil.

Remote Infrastructure: Repairing power lines and telecommunications towers in unpaved, hilly areas.

Landscaping: Installing high-altitude lights and decor in parks and resorts without damaging the ground as much as heavy wheeled vehicles.
