Description
Product Feature
An efficient high-torque motor together with a high speed ratio gearbox significantly improves the travel speed, gradeability and lifting speed; The air-cooled fan built in the travel and lifting motors allow better heat dissipation and more thorough performance realization; Oil pump reducers are introduced in the oil pump devices for the first time, enabling the lifting motor to work in a more efficient and more energy-saving manner; The 80V double permanent magnet synchronous motor system allows higher power density, and through deep matching of the gearbox, motors and electronic controls, reduces the energy consumption by 15% to 20% than that of the traditional asynchronous motor models in the same working conditions.
Key highlights
● Lithium battery is more environmentally friendly, maintenance-free, long life and high efficient;
● The controller is installed on the balance weight, and the heat balance temperature is low;
● Strengthened steering axle with high supporting point increase the bearing capacity; increased cylinder diameter reduces steering pressure and steering energy consumption;
● The center of gravity is reduced through tail-free structure and thus truck stability is improved.
Parameter
| Model | CPD20 | |
| Power Type | accumulator | |
| rated load lifting capacity | 2000kg | |
| Load centre distance | 500mm | |
| load centre distance | Sit down | |
| length | with fork | 3070mm |
| without fork | 1990mm | |
| wideth | 1148mm | |
| height | Do not raise the mast height | 2150mm |
| Overhead guard height | 2124mm | |
| Max height at working | 4093mm | |
| Distance from seat surface to top guard frame | 970mm | |
| wheel base | 1354mm | |
| front overhang | 360mm | |
| rear overhang | 285mm | |
| front wheel track | 948mm | |
| rear wheel track | 863mm | |
| minimum ground clearance | 87mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 45mm | |
| Fork adjustment range | 200-1040mm | |
| minimum turning radius | 1890mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 3450mm | |
| Gantry angle (front/rear) | 5/10° | |
| Maximum lifting speed without load | 350mm/s | |
| Maximum lifting speed with full load | 260mm/s | |
| Maximum operating speed without load | 15Km/h | |
| Maximum operating speed with full load | 14Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 3340Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 21x8-9 14PR | |
| tyre size(rear) | 16x6-8 10PR | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 80V/105Ah | |
| drive motor power | 7Kw | |
| Oil pump motor power | 10Kw | |
| fork length | 1070mm | |

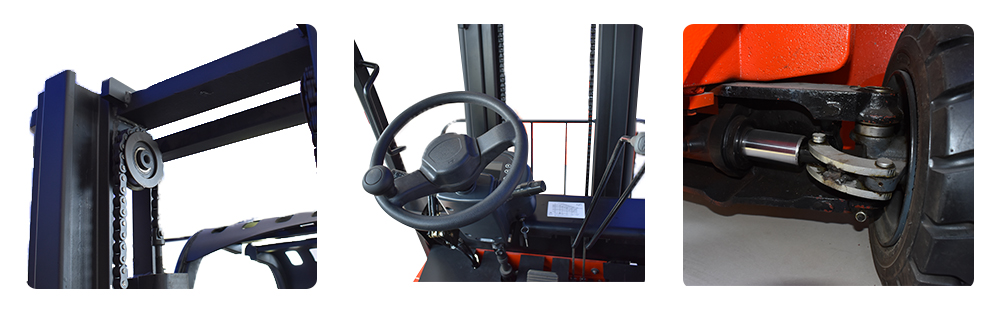

Detail
According to demands, can be matched with different accessories
