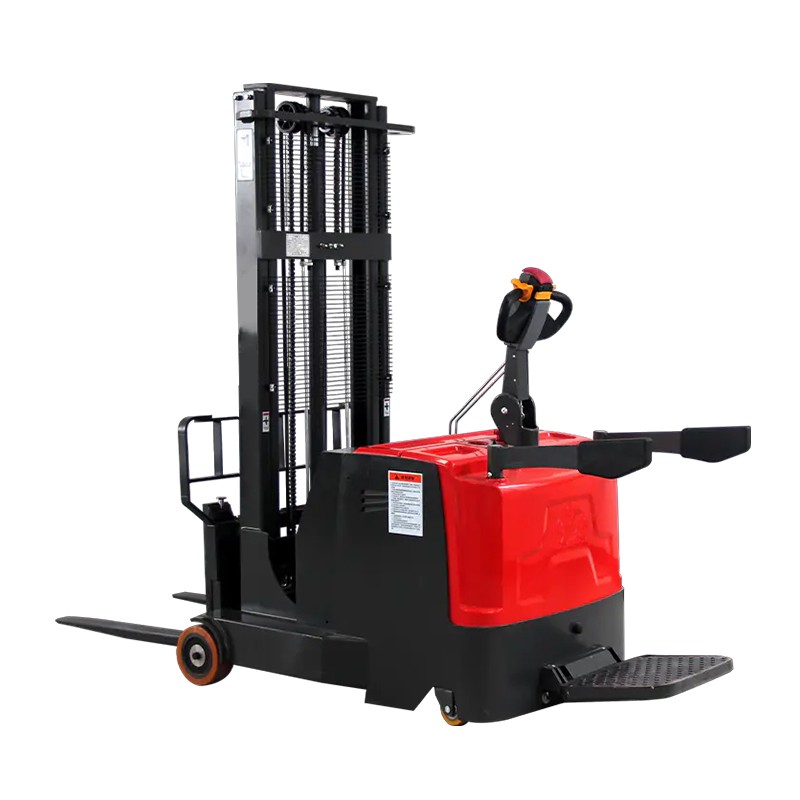

MYCPDB08-10 Short-axis Electric counterbalanced stacker

MYCPDB08-10 Short-axis Electric counterbalanced stacker
  • MYCPDB08-10 Short-axis Electric counterbalanced stacker

Short Description:

This is a short-axis counterbalanced pallet stacker, with a short wheelbase design, short vehicle body and small turning radius. It is equipped with a foldable stand-on pedal, suitable for various types of pallets and has strong versatility....


  • Maximum load capacity: 800/1000kg
  • Overall length/width of frame: 2400/1040mm
  • Fork size(length *width*thickness): 920*100*35mm
  • Fork lowered height: 80mm

Product Details

Product Tags

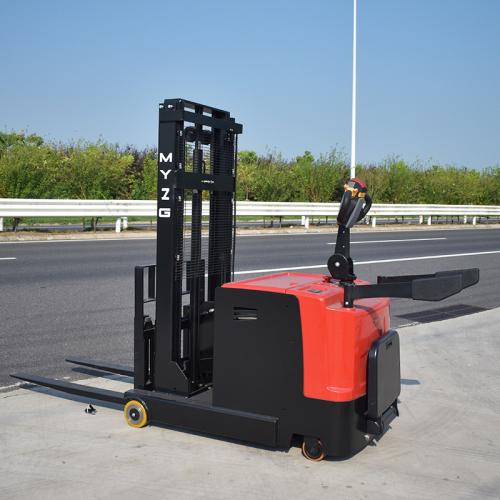

MYCPDB08/10 SHORT-AXIS ELECTRIC COUNTERBALANCED STACKER

This is a short-axis counterbalanced pallet stacker, with a short wheelbase design, short vehicle body and small turning radius. It is equipped with a foldable stand-on pedal, suitable for various types of pallets and has strong versatility.


Product features :


• Pump Brand: BUCHER
• 24V/120Ah GEL Maintenance-free Battery
• Optional: 210Ah Lead Acid Battery
• AC 1.5KW Horizontal Drive Motor
• Optional: Controller Brand CURTIS
• Optional: Fork tilting、Side shifter


Model CPDB08/10
Maximum load capacity 800/1000kg
load center 500mm
Travel speed without load/with load 4.5/3.5km/h
Lifting speed without load/with load 110/80mm/s
Lowered speed without load/with load 100/100mm/s
Ascend slope ability without load/with load 8/5%
Overall length/width of frame 2400/1040
Wheelbase 1055mm
Fork sizelength *width*thickness 920*100*35mm
Fork outside width 220-680mm
Min frounf height 60mm
Fork lowered height 80mm
Minimum turning radius 1745mm
Minimum intersecting aisie 3360mm
Front wheel 210*85mm
Drive wheel 250*80mm
Caster wheel 124*60mm
Drive motor Rated output/DC motor 1.5kw
Hoist motor Rated output/DC motor 2.2kw
Battery Voltag/Capacity 24/120(210)V/Ah
Battery Weight 35*2(195)kg
Mast Max.Lifting height Mast overall height Mast overall height Service weight
Single mast 1600 mm 2130 mm 2130 mm 1340 kg
2-stage mast 2000 mm 1630 mm 2600 mm 1420kg
2500 mm 1880 mm 3100 mm 1450 kg
3000 mm 2130mm 3600 mm 1510 kg
3500 mm 2380 mm 4100 mm 1450 kg

Company Introduction


About us

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
