Pallet stackers are invaluable pieces of equipment for warehouses, distribution centers, and retail environments, offering a cost-effective and efficient way to lift and stack palletized goods in tight spaces. Unlike larger forklifts, they are often manually propelled or semi-electric, making them ideal for operations where space is at a premium and a full-sized counterbalance forklift isn't necessary. However, despite their smaller size and perceived simplicity, operating a pallet stacker safely is paramount. Improper use can lead to serious injuries, product damage, and structural harm.
This step-by-step guide will walk you through the essential safety procedures for operating a pallet stacker, ensuring both operator well-being and operational efficiency. Remember, safety isn't an option; it's a fundamental requirement for anyone handling material handling equipment, including models from manufacturers like MYZG / MINGYU, which are designed with safety features but still require operator vigilance.
Before You Start: Pre-Operation Safety Checks
Even before you think about moving a pallet, a thorough pre-operation inspection is non-negotiable. This quick check can identify potential hazards and prevent accidents.
Step 1: Inspect the Pallet Stacker
Check Condition: Walk around the entire stacker. Look for any visible damage, bent forks, cracked welds, loose components, or fluid leaks (if applicable). Never operate a damaged machine.
Wheels and Castors: Ensure all wheels and castors are in good condition, free from debris, and roll smoothly. Damaged wheels can cause instability.
Hydraulic System: If it's a manual or semi-electric hydraulic stacker, check for leaks around the pump and cylinders. Ensure the lifting mechanism moves smoothly up and down.
Controls: Test all controls – lift/lower buttons or levers, horn (if present), and emergency stop button. Make sure they function correctly and are easily accessible. The emergency stop should immediately cut all power or motion.
Battery (for Electric/Semi-Electric models): Check battery charge level. Ensure the battery cover is secure and there are no signs of corrosion around terminals.
Brakes: Test the parking brake (if equipped) to ensure it holds the stacker securely.
Step 2: Inspect the Operating Environment
Floor Condition: Ensure the floor is clean, dry, and free from obstacles, spills, debris, or uneven surfaces. Even small cracks or bumps can destabilize a stacker, especially with a raised load.
Overhead Clearance: Always be aware of overhead obstructions like pipes, lights, sprinkler systems, or low doorways, especially when lifting loads to height.
Aisle Width: Verify that aisles are wide enough for the stacker and its load to maneuver safely without striking shelving or other equipment.
Pedestrian Traffic: Be aware of pedestrian pathways and ensure they are clear of your operating area.
Step 3: Inspect the Pallet and Load
Pallet Condition: Only use pallets that are in good condition, free from broken boards or splinters. A damaged pallet can collapse, causing the load to fall.
Load Stability: Ensure the load is securely stacked on the pallet, preferably shrink-wrapped or strapped. The load should not overhang the pallet edges. Uneven or unstable loads are a major hazard.
Weight Capacity: Verify that the combined weight of the load and pallet does not exceed the pallet stacker's rated load capacity. This information is typically found on the stacker's data plate. Overloading can lead to mechanical failure, instability, and tip-overs.
Load Center: Ensure the load's center of gravity is within the specified limits for the stacker. Heavy loads should always be positioned as close to the mast as possible.
Step 4: Personal Protective Equipment (PPE)
Always wear appropriate PPE, which typically includes steel-toed safety shoes, and gloves. Depending on the environment, hard hats and high-visibility clothing may also be required.
Operating the Pallet Stacker: Step-by-Step
With all pre-operation checks complete, you're ready to operate the pallet stacker safely.

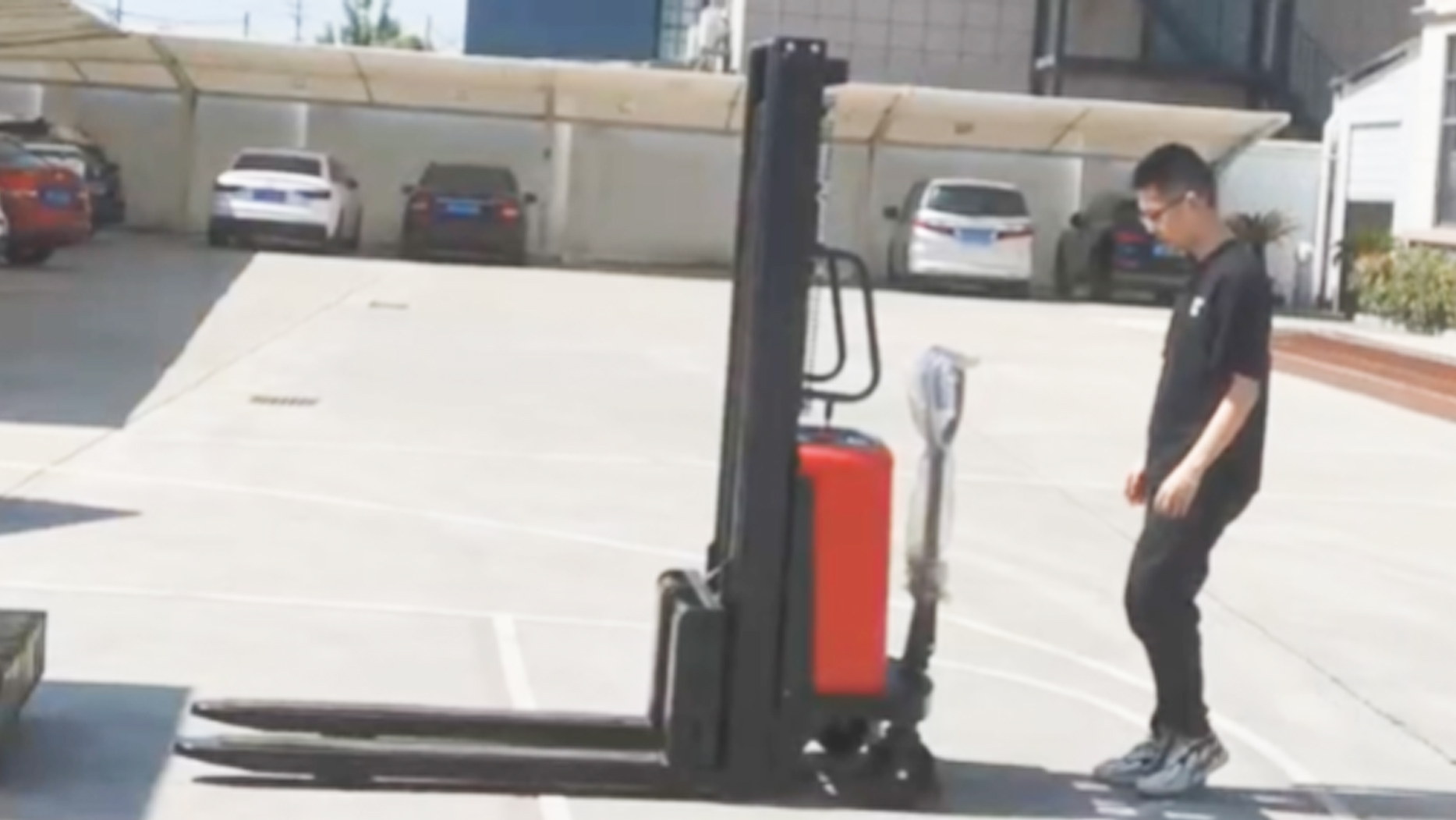

Step 5: Position for Lifting
Approach Squarely: Approach the pallet squarely, ensuring the forks are aligned with the pallet openings.
Lower Forks: Lower the forks completely to the floor.
Insert Forks Fully: Drive the stacker forward until the forks are fully inserted into the pallet, with the back of the forks touching the pallet's stringer board. Partial insertion can cause the load to be unstable or fall.

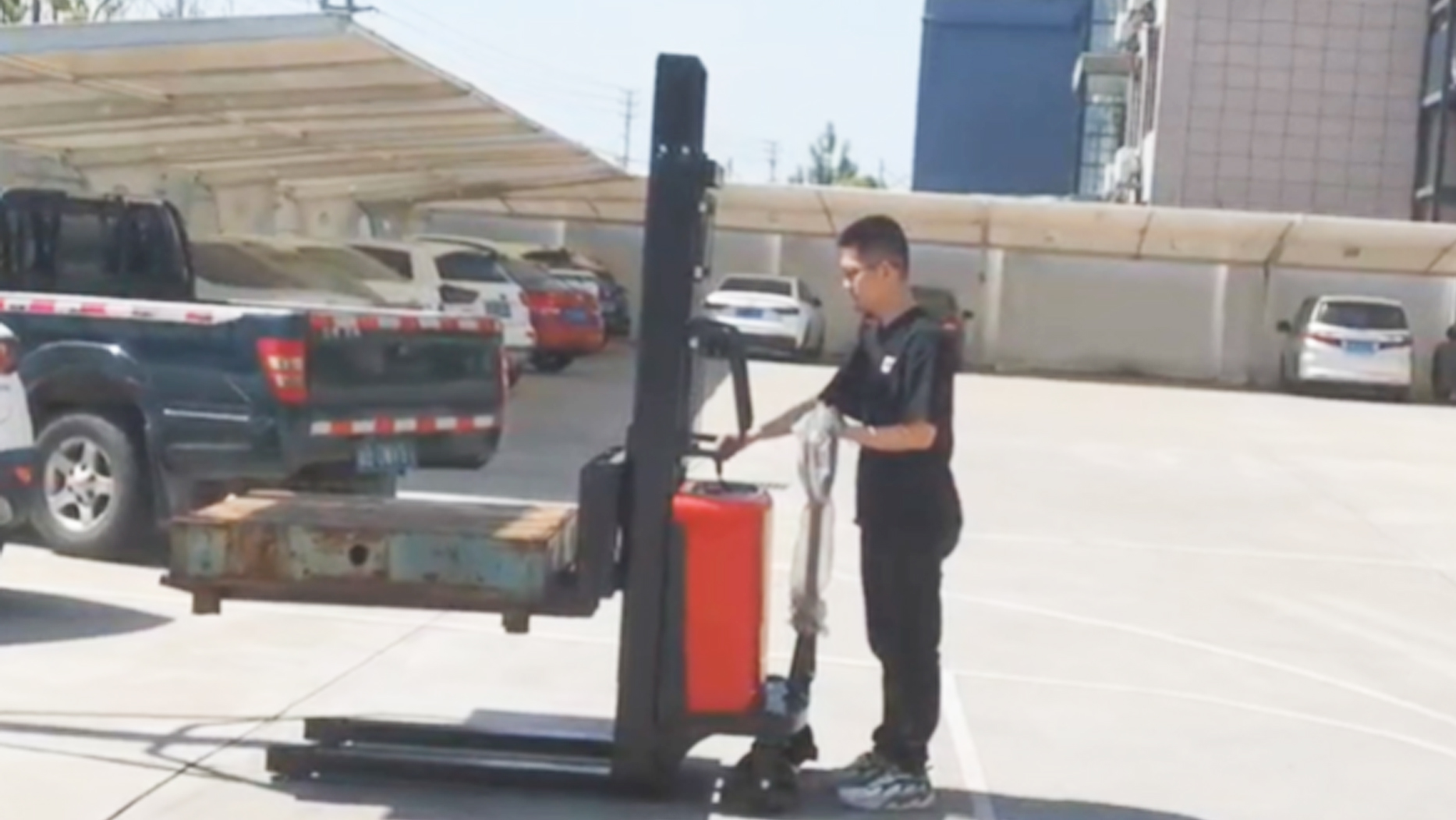

Step 6: Lift the Load
Engage Load: Slowly lift the forks just enough to clear the floor (typically 2-4 inches). This is often called "travel height."
Check Stability: Gently rock the load to confirm it's stable and balanced on the forks before moving.
Keep Load Low for Travel: For horizontal travel, always keep the load as low as possible to the ground. This maintains a low center of gravity, significantly improving stability and reducing the risk of tipping.

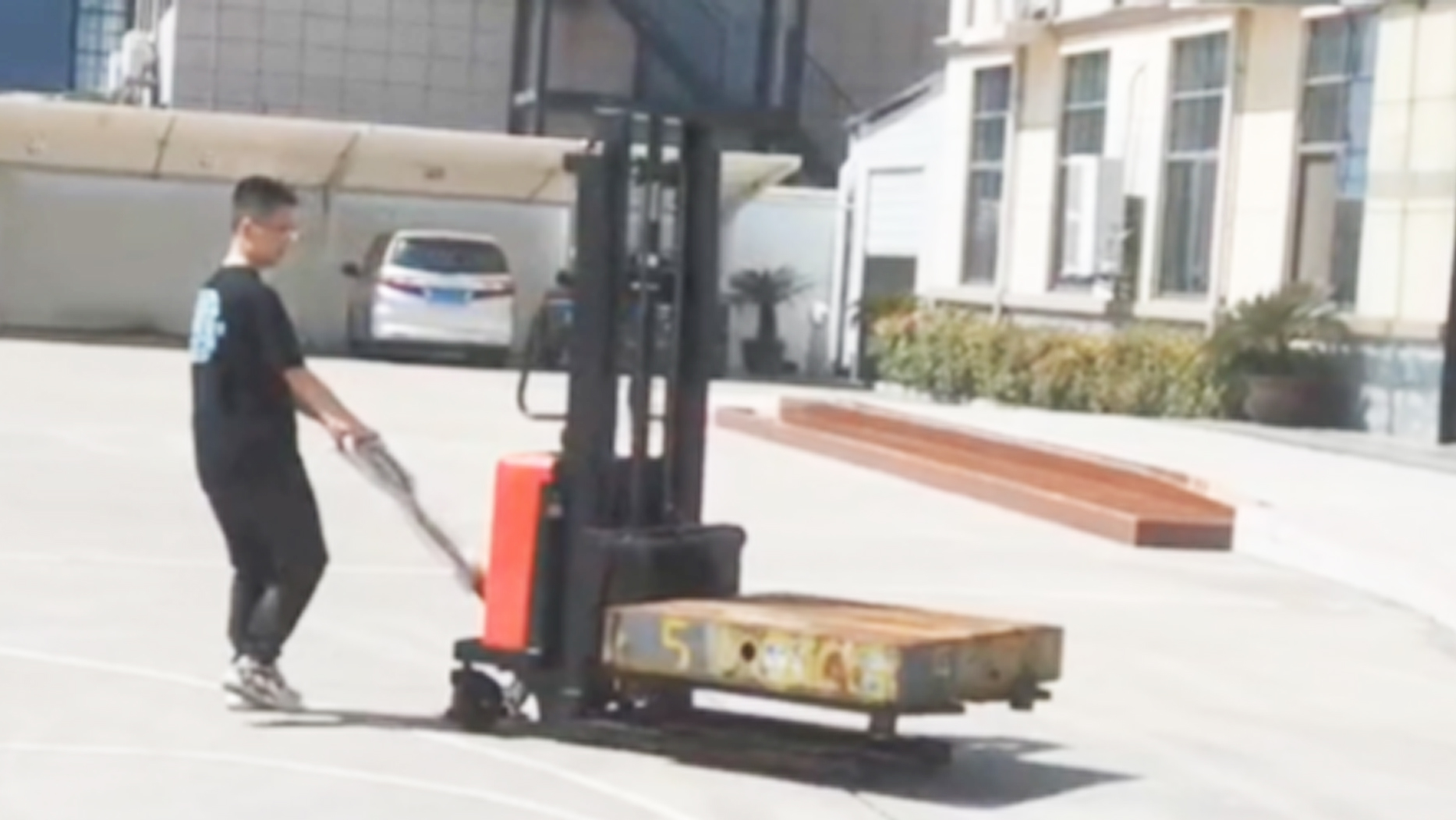

Step 7: Travel with the Load
Slow and Controlled: Always travel at a safe, controlled speed. Avoid sudden starts, stops, or turns, especially with a raised load.
Maintain Visibility: If the load obstructs your forward view, travel in reverse while looking over your shoulder. Always look in the direction of travel.
Clear Path: Continually scan your path for pedestrians, other equipment, and obstacles. Use the horn when approaching blind corners, intersections, or areas with limited visibility.
Ramps and Inclines:
Always drive straight up or down ramps. Never travel diagonally across them.
When going up a ramp with a loaded pallet stacker, travel with the load facing uphill.
When going down a ramp with a loaded pallet stacker, travel in reverse with the load facing uphill. This maintains better control and stability.
Never turn on a ramp or incline.
Step 8: Positioning for Stacking/Unstacking
Approach Squarely: Approach the desired stacking location squarely and slowly.
Align Load: Position the load directly in front of the rack or stack, ensuring proper alignment before raising.
Raise Load to Clear Height: Only raise the load to the necessary height to clear the top of the stack or rack beam. Avoid raising the load higher than necessary during positioning.
Step 9: Stack/Unstack the Load
Careful Placement: Slowly move forward to place the load onto the rack or stack. Ensure it's fully seated before lowering the forks.
Lower Forks Clear: Once the load is stable on the rack/stack, fully lower the forks until they are clear of the pallet.
Back Away Slowly: Slowly back the pallet stacker away from the stack, ensuring the forks do not snag on the pallet or rack.
Lower Forks to Travel Height: Once clear, immediately lower the forks back to travel height before moving to the next task.
After Operation: Shut-Down Procedures
Proper shutdown procedures ensure the pallet stacker is safely stored and ready for its next use.
Step 10: Park and Secure the Pallet Stacker
Designated Area: Always park the pallet stacker in its designated, clear, and safe parking area.
Lower Forks Completely: Ensure the forks are fully lowered to the ground. Never leave forks raised or partially raised.
Apply Brakes: Engage the parking brake to prevent accidental movement.
Turn Off: Turn off the power (for electric/semi-electric models) or switch off the engine (if applicable).
Remove Key: Remove the key (if applicable) to prevent unauthorized use.
Step 11: Connect for Charging (Electric/Semi-Electric Models)
If it's an electric or semi-electric pallet stacker, connect it to the appropriate charger in a well-ventilated area. Follow manufacturer guidelines for charging to extend battery life.
Important Safety Reminders for All Pallet Stacker Operators
Training is Essential: Never operate a pallet stacker without proper, certified training. This guide is a summary; real-world training is crucial.
No Riders: Never allow anyone to ride on the forks or any part of the stacker.
Keep Hands and Feet Clear: Always keep hands and feet clear of moving parts, especially the mast and lifting mechanisms.
Clear Visibility: Ensure your path is always clear. If visibility is obstructed by a tall load, travel in reverse.
Report Damage: Immediately report any damage, malfunction, or safety concerns to your supervisor. Never attempt repairs unless qualified.
Manufacturer Guidelines: Always consult and follow the pallet stacker manufacturer's operating manual for specific instructions and safety warnings (e.g., from MYZG / MINGYU).
Avoid Horseplay: Never engage in horseplay or unauthorized use of the equipment.
Operating a pallet stacker safely requires constant vigilance, adherence to procedures, and a commitment to training. By following these steps, you can significantly reduce the risk of accidents and ensure that these valuable machines continue to boost productivity efficiently and safely in your workplace.
Post time:Aug.01.2025
