How Deep Can a Standard Backhoe Loader Dig?

How Deep Can a Standard Backhoe Loader Dig?

I. Introduction

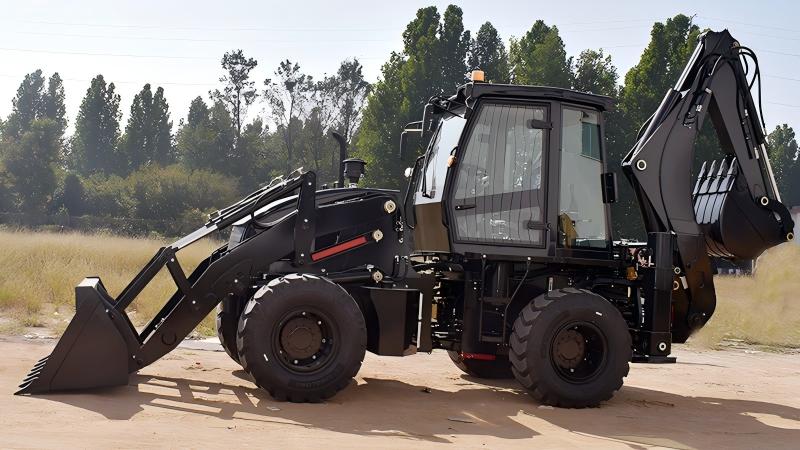

A standard backhoe loader is a highly versatile and indispensable piece of heavy equipment, primarily recognized for its dual capabilities: a front-end loader for scooping and carrying materials, and a rear-mounted backhoe for digging and excavating. Among its various specifications, digging depth stands out as a critical metric, directly influencing the machine's suitability for a wide array of construction, utility, and agricultural applications. Understanding how deep a standard backhoe loader can dig is essential for project planning, equipment selection, and ensuring efficient operations. This article aims to provide a comprehensive exploration of the digging capabilities of standard backhoe loaders, detailing typical depths, the various factors that influence actual digging performance, and the industry standards used for measurement.

II. Understanding Backhoe Loader Basics

To fully grasp a backhoe loader's digging capabilities, it's important to understand its core components and how they work in unison for excavation.

Components related to digging:

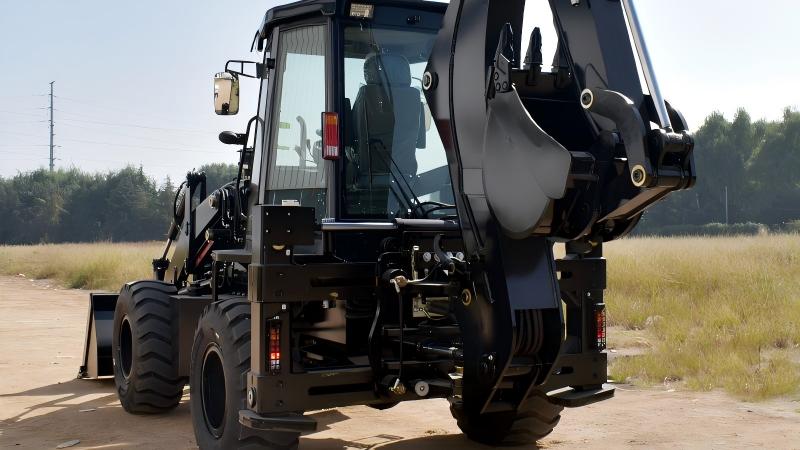

Backhoe arm (boom, dipper/stick, bucket): The backhoe arm is the primary digging attachment. It consists of three main parts: the boom, which extends from the machine's frame; the dipper (also known as the stick or crowd arm), which extends from the end of the boom; and the bucket, attached to the end of the dipper, which performs the actual digging.

Hydraulic cylinders: These powerful cylinders are the muscles of the backhoe, using pressurized fluid to articulate (move) the boom, dipper, and bucket, providing the force needed for digging, curling, and dumping.

Stabilizers (outriggers): Located at the rear of the machine, these hydraulic legs are deployed to the ground when the backhoe is in operation. They lift the machine slightly, creating a stable, non-moving platform that prevents tipping and allows the backhoe to exert maximum digging force without compromising stability.

How a backhoe digs: The digging process involves a coordinated movement of the hydraulic cylinders. The boom extends or retracts, the dipper extends or retracts, and the bucket curls in or out to scoop material. The operator uses joysticks to precisely control these movements, allowing for efficient penetration into the ground and removal of spoil.

Distinction between digging depth and reach: It's crucial to differentiate between these two terms. Digging depth refers specifically to the maximum vertical distance a backhoe can excavate below ground level. Reach, on the other hand, refers to the maximum horizontal distance the backhoe arm can extend from the machine's pivot point, which is important for loading trucks or placing spoil piles away from the trench.

Standard vs. Compact backhoe loaders: For the scope of this article, we're focusing on "standard" backhoe loaders. These are typically larger, more powerful machines designed for a wide range of commercial and municipal tasks. Compact backhoe loaders are smaller versions, often with reduced digging depths and lift capacities, better suited for confined spaces or lighter-duty work.

III. Measuring Digging Depth

Understanding how digging depth is measured is key to interpreting manufacturer specifications accurately.

Standard Measurement: The industry standard for measuring maximum digging depth is typically defined as the greatest vertical distance from the ground level to the lowest point of the bucket teeth. This measurement is usually taken with the dipper arm fully extended and the bucket curled to its maximum inward position, creating the deepest possible point. This provides a theoretical maximum under ideal conditions.

Flat Bottom Digging Depth: While maximum digging depth is important, the flat bottom digging depth is often more practical for trenching applications. This measurement indicates the maximum depth a backhoe can achieve while maintaining a level, flat trench bottom for a specified length (e.g., 2 feet or 8 feet). This is crucial for laying pipes or cables where a consistent grade is required. This depth will always be less than the maximum digging depth because it accounts for the bucket's ability to clear material evenly.

Factors influencing measurement consistency: Manufacturer specifications are typically derived under ideal, controlled conditions (e.g., firm, level ground, specific bucket type, optimal hydraulic pressure). Real-world conditions, such as uneven terrain, varying soil types, or the use of different attachments, can affect the actual achievable depth.

Where to find specifications: For precise figures, always consult the manufacturer's official specification sheets, product brochures, or the operator's manual for a specific backhoe loader model. These documents provide detailed diagrams and measurements for all key performance metrics.

IV. Typical Digging Depth Ranges for Standard Backhoe Loaders

Standard backhoe loaders are designed to handle a significant range of excavation tasks, and

Common Ranges: For most standard backhoe loaders, the typical maximum digging depth generally falls between 14 to 18 feet (approximately 4.2 to 5.5 meters). This range covers the majority of models from leading manufacturers.

Influence of Machine Size/Class: Within a manufacturer's lineup, larger standard backhoe models will consistently offer greater digging depths. For instance, a manufacturer's entry-level standard backhoe might dig to 14 feet, while a top-tier model could reach 18 feet or more. This increase in depth usually correlates with higher horsepower, greater hydraulic flow, and a more robust arm structure.

Examples of popular models and their depths:

Caterpillar (Cat): Models like the Cat 420 typically offer digging depths around 14-16 feet, while the larger Cat 430 might extend to 15-17 feet. Models with an extendable stick can add several more feet.

Component Condition: Worn hydraulic pumps, cylinders, hoses, or seals can lead to reduced power, slower movements, and decreased digging efficiency. Regular inspection and maintenance are essential.

Machine Maintenance: Proper maintenance directly translates to better digging performance and longevity.

Proper Lubrication: Well-lubricated pins and bushings on the backhoe arm reduce friction and wear, allowing for smoother movement and more efficient power transfer.

IX. Conclusion

A standard backhoe loader is a powerful and versatile machine, typically capable of digging between 14 to 18 feet deep. This range makes it highly capable for the vast majority of common excavation, trenching, and utility work encountered in construction, agriculture, and municipal applications. Its actual digging performance is a dynamic interplay of various factors, including the specific ground conditions, the type and size of the bucket used, the skill and experience of the operator, and the overall health and maintenance of the machineydraulic system and engine. While the backhoe loader offers remarkable versatility for many tasks, for projects demanding depths beyond its efficient limits or for very large-scale, sustained excavation, a dedicated hydraulic excavator may prove to be the more efficient and cost-effective solution. Understanding these capabilities and limitations is key to selecting the right equipment for optimal project succe
