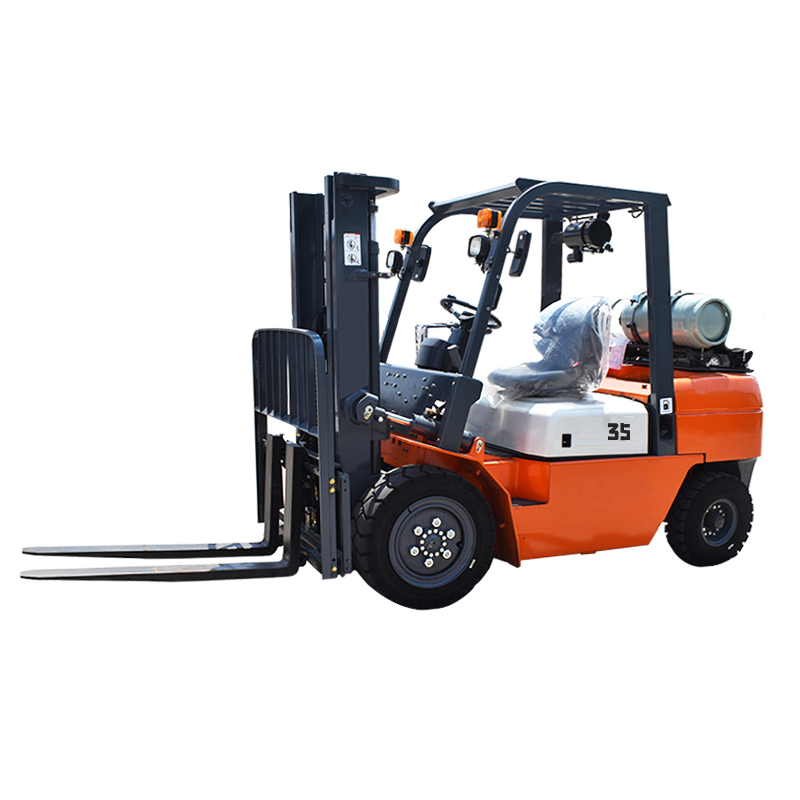

CPY35 gasoline/LPG forklift
THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
MYZG perform a new design for it, Technical features remarkably improved, superior quality，Can match Guangqing and Nissan engine
Enhanced comfort through innovative design.
● Hydraulic transmission and mechanical transmission types are all available.
● Flexible steering and small turning radius, with full Hydraulic Steering System.
● We use scientific ergonomic method to design CPCY-35 Forklift truck. The operation space has been efficiently enlarged. The rough feeling of the driver has been reduced to the lowest extends.
● Avariety of domestic and imported engines for you to choose. The emission meets EC and EPA new regulation.
● Specially designed container door frame can enter the container for operation. This series forklifts can be equipped with two, or three full free lift mast, and various attachments, according to user’s demand.
● Enclose cabin is made of assembling plate on overhead guard, high strength overhead is design to ensure the safety.
●. Operator presence sensing system, the system will cut off the driving force to prevent accidents, when the driver leave the seat during operation.
THE MAIN PARAMETER
| Model | CPCY35 | ||
| Power type | Gasoline /LPG | ||
| load capacity | 3500kg | ||
| Load centre distance | 500mm | ||
| lifting height | 3000mm | ||
| Mast tilt angle | 6/12 | ||
| min turning radius | 2450mm | ||
| min ground clearance | 135mm | ||
| Overhead guard height | 2165mm | ||
| front overhang distance | 490mm | ||
| Max driving speed | load/without load | 20km/h | |
| Max lifting speed | load/without load | 480mm/s | |
| max drawbar pull | load/without load | 22KN | |
| Max climbing capacity | 20% | ||
| length(No fork) | 2700mm | ||
| width | 1225mm | ||
| Max lifting height of fork (with stopper shelf） | 4265mm | ||
| Landing height of the gantry | 2060mm | ||
| tyre | front | 28x9-15-12PR | |
| rear | 6.50-10-10PR | ||
| wheel base | 1700mm | ||
| wheel track | front/rear | 1000/970mm | |
| weight | without load | 4780kg | |
| accumulator | voktage/capacity | 12/80V/Ah | |
| engine | model | GUANGQING/NISSAN | |
● Vibration
·Cushion connection and wholly suspension cab can absorb the vibrations of truck effectively.
● Noise
·Noise around ear is reduced through moving downwards the tilting cylinder under the floor board and using fully closed patch type cab.
·Lowering damping device inside the lifting system reduces mast’s shock and vibration, avoiding crash noise caused by goods falling to the ground.
● Workspace
·Space around foot is effectively increased through moving up steering unit and the using of suspension brake system.
·The operation space is enlarged by heightened overhead guard and using large arc shape of the overhead guard’s front leg
·Semi-suspension seat, small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively impro
● Working efficiency
·Small turning radius makes steering flexible and easy.
·The truck has fast lifting speed, good sloping ability and high efficiency.
According to demands, can be matched with different accessories
