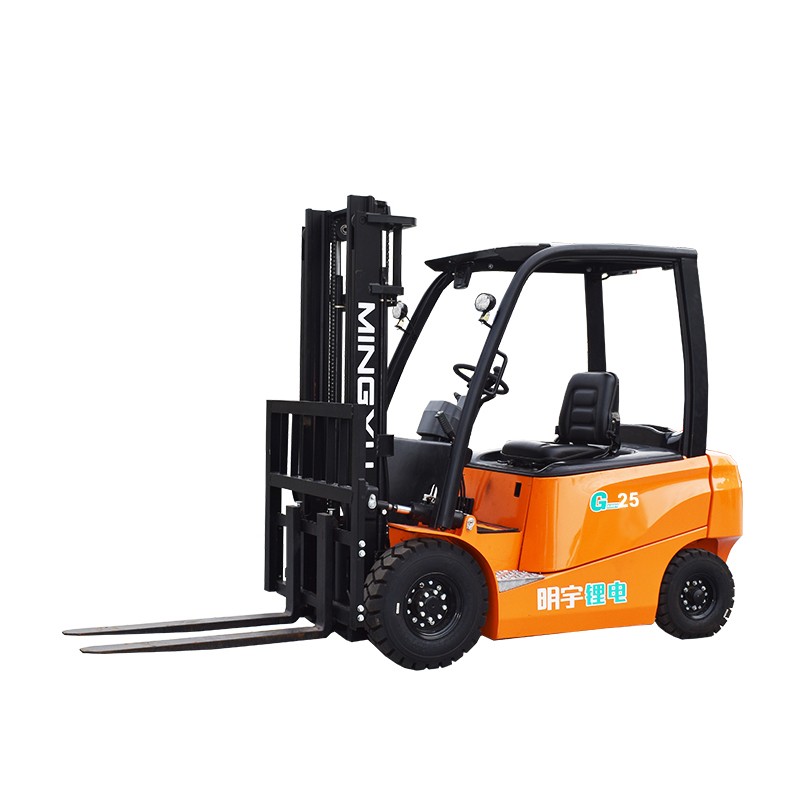

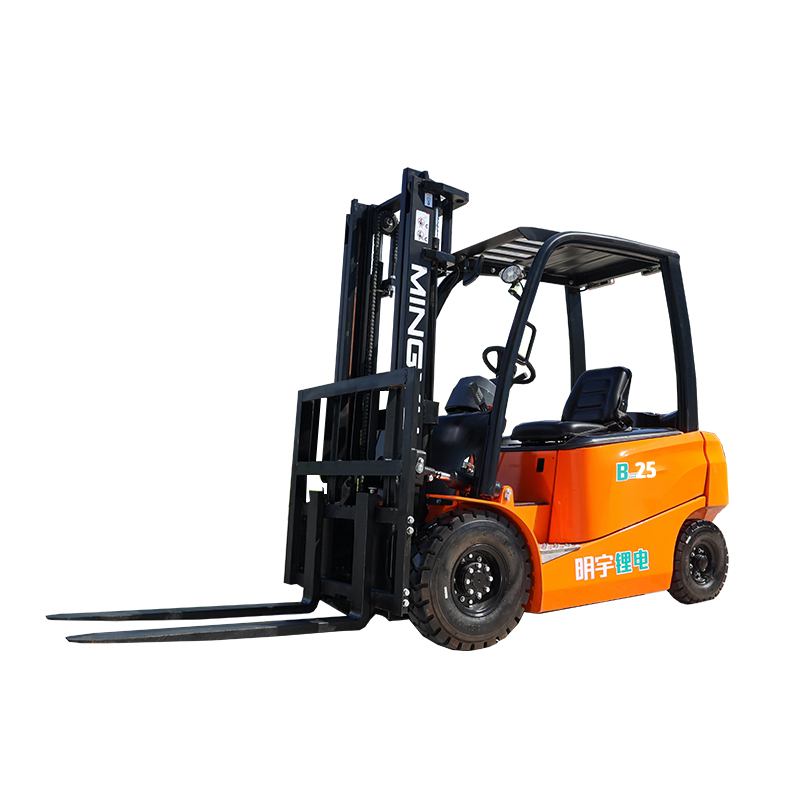

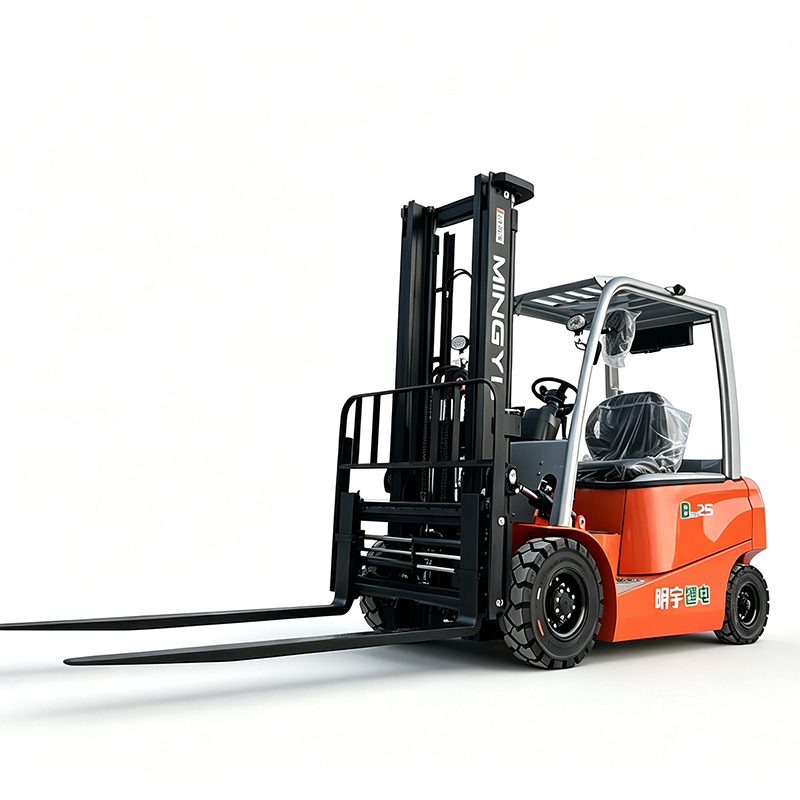

CPD25-B electric Forklift
True Multi-Purpose Forklift
PRODUCT FEATURE
CPD25-B series lithium battery forklifts are high quality products developed by MINGYU on the basis of the advantages of "lithium battery special structure" and "permanent magnet synchronous technology". It has two models, one is standard model and the other is heavy-duty model. Following the family design of electric forklifts, they are provided with some key parts compatible with internal combustion forklifts, and optimized mainly on the overall performance, ergonomics, reliability, maintenance, outdoor operation ability and load capacity in a bid to meet customers’ use scenarios of internal combustion forklifts. The heavy-duty model is capable of meeting the application demand of users in heavy-duty working conditions.
Improved performance, superior quality
● Double permanent magnet synchronous motor system.
● Ergonomically designed forklift enables a wide view.
● Workspace 45% increased
● Operator’s view 20% improved
● Working efficiency 20% improved
● Loading capacity increased over 5%
● Stability 5% improved
● Reliability 40% improved
● Engine hood open angle increased to 80°
Using the same technology as hyster/yale/toyota
THE MAIN PARAMETER
Model
CPD25
Power Type
accumulator
rated load lifting capacity
2500kg
Load centre distance
500mm
load centre distance
Sit down
length
with fork
3290mm
without fork
2210mm
wideth
1100mm
height
Do not raise the mast height
2010mm
Overhead guard height
2000mm
Max height at working
4110mm
Distance from seat surface to top guard frame
980mm
wheel base
1520mm
front overhang
370mm
rear overhang
380mm
front wheel track
904mm
rear wheel track
958mm
minimum ground clearance
110mm
Standard lifting height
3000mm
free lifting height
0mm
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2100mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 3670mm | |
| Gantry angle (front/rear) | 5/10° | |
| Maximum lifting speed without load | 325mm/s | |
| Maximum lifting speed with full load | 250mm/s | |
| Maximum operating speed without load | 15Km/h | |
| Maximum operating speed with full load | 14Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 2980Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Pneumatic tyre/pneumatic tyre | |
| tyre size(front) | 6.50-10 | |
| tyre size(rear) | 5.00-8 | |
| Brake/driving brake | Foot Brake | |
| parking brake | Hand Brake | |
| Battery voltage/capacity | 80V/105Ah | |
| drive motor power | 13Kw | |
| Oil pump motor power | 13Kw | |
| fork length | 1070mm | |
According to demands, can be matched with different accessories
