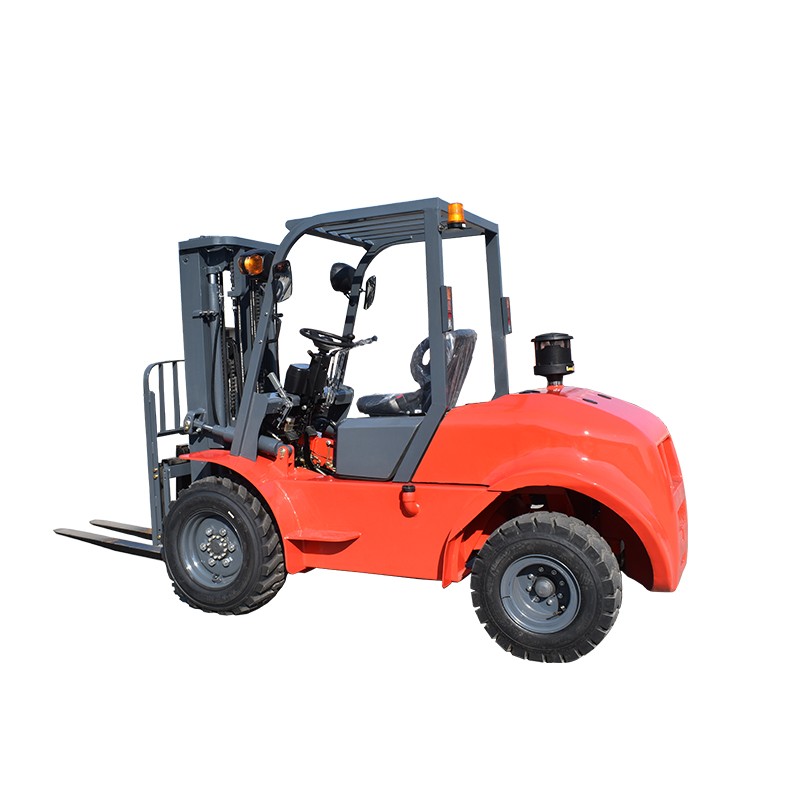

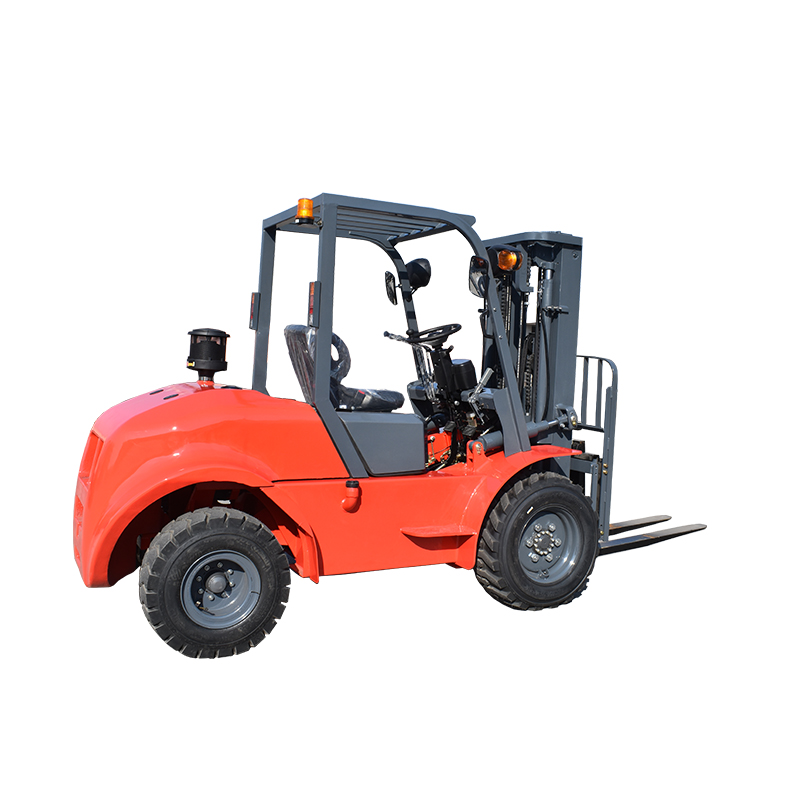

CPC30SY off-road forklift
Product Feature
Introducing Mingyu's 3-ton European style off-road forklift, engineered to tackle rugged terrain with unmatched reliability and performance. Built to exceed expectations in outdoor environments, this forklift combines robust design with advanced features to enhance productivity in challenging conditions.
1. Tough, compact rough terrain forklift 3000kg with the 4WD system.
2. High strength Frame and high ground clearance for uneven road conditions.
3. Deep pattern and large-width tires with good grip and skid resistance.
4. Widened Mast for a good view. Cast Steel for the drive axle.
5.Mechanical joystick, easy to operate.
Parameter
| Model | CPC30SY | |
| Power type | diesel | |
| load capacity | 3000kg | |
| Load centre distance | 500mm | |
| lifting height | 3000mm | |
| fork size | Length × width × thickness | 45x125x1070mm |
| Mast tilt angle | front/rear | 5/15。 |
| min turning radius | 3900mm | |
| min ground clearance | 250mm | |
| Overhead guard height | 2450mm | |
| front overhang distance | 595mm | |
| Max driving speed | without load | 30km/h |
| Max lifting speed | load/without load | 450/550mm/s |
| Descending speed | load/without load | ≤600/≥300mm/s |
| Max climbing capacity | 25% | |
| length | without fork | 3090mm |
| width | 1600mm | |
| Max lifting height of fork (with stopper shelf） | 4350mm | |
| Landing height of the gantry | 2235mm | |
| tyre | front | 12-16.5-12PR |
| rear | 12-16.5-12PR | |
| wheel base | 1840mm | |
| wheel track | front/rear | 1250/1320mm |
| weight | without load | 4900Kg |
| accumulator | voktage/capacity | 12/80 |
| engine | type | xinchai/Yanmar |
| rated power | 40kw | |
| transmission type | Real-time four-wheel drive | |
| Drive gear front/back | 2/2 | |
| working pressure | 20 | |
·Optional imported Xinchai 、Yanmar 4TNE98 engine
·Optional mechanical gearbox, manual hydraulic gearbox, electromagnetic hydraulic gearbox
·According to different goods, different attachments such as sideshifter, distance adjustment forks, etc. can be assembled.
Detail
Applications:
Ideal for construction sites, forestry operations, mining environments, and more, the Mingyu 3-ton European style off-road forklift excels in:
Handling heavy loads over uneven terrain
Maneuvering in confined spaces
Ensuring reliable performance in all weather conditions
Experience Excellence in Off-Road Handling
Elevate your outdoor material handling capabilities with Mingyu's 3-ton European style off-road forklift. Contact us today to discover how Mingyu can empower your operations with durable performance and unmatched reliability.
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
