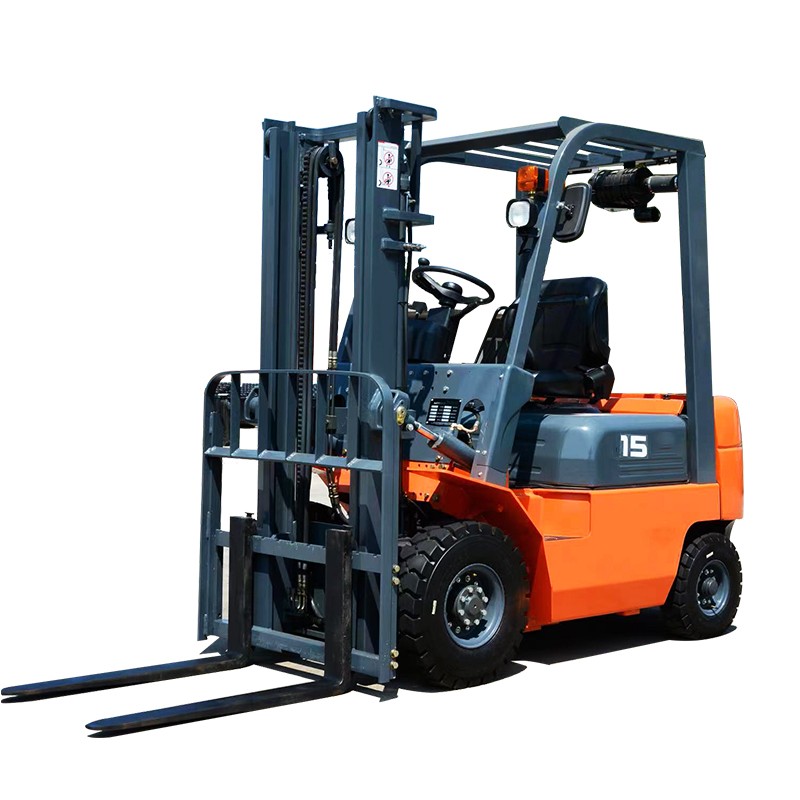

CPC15 diesel forklift

CPC15 diesel forklift
  • CPC15 diesel forklift

Short Description:

CPC20 diesel forklift...


  • Rated load capacity:1500kg:
  • Total weight:2660kg:
  • Standard lifting height:3000mm:

Product Details

Product Tags

Product Feature


CPC15 series is the key product which MINGYU blockbuster launches.  Based on the high technology,mass manufacturing capability and experienced sales and services of mingyu, cpc series becomes a milestone of mingyu’s products which fully consider the needs of market and customer



Dependable, durable and engineered with ergonomics in mind, the Core diesel Forklift can maneuver nearly any typical material handling load.  With a lift capacity range of 1500 lbs, the Toyota seat,Pneumatic forklift is the premier material handling solution for most outdoor applications.      Additionally, this lift comes equipped with high-performance pneumatic tires that provide a reassuringly strong grip on uneven surfaces.


Improved performance, superior quality


· Vibration 20% reduced
· Noise 3dB reduced
· Workspace 45% increased
· Operator’s view 20% improved
· Working efficiency 20% improved
· Loading capacity increased over 5%
· Stability 5% improved

· Reliability 40% improved
· Engine hood open angle increased to 80°


Parameter


model CPC15
Power type diesel
load capacity 1500kg
Load centre distance 500mm
lifting height 3000mm
free lifting height 100
fork size lenght×width×thickness 920×100×35mm
Mast tilt angle front/rear 6/12Deg
min turning radius 1955mm
min ground clearance 110mm
Overhead guard height 2070mm
front overhang distance 425mm
Max driving speed load 13.5km/h
Max lifting speed load 590mm/s
max drawbar pull load 12.3KW
Max climbing capacity 20%
length with fork 3260mm
without fork 2205mm
width 1070mm
Max lifting height of fork (with stopper shelf 3000mm
Landing height of the gantry 1865mm
tyre front 6.50-10-10PR
rear 5.00-8-8PR
wheek base 1410mm
wheel track front/rear 890/920mm
weight without load 2660
accumulator voktage/capacity 12/80
engine model
quanchai/xinchai/

Mitsbishi / Isuzu/Cummins

rated power 30/2600
rated torque 131/1700-1900
Bore X Stroke 80x100mm
number of cylinders 4
displacement 2.27L
fuel tank capacity 40L

Enlarged boarding step space allows more convenience for boarding.

The wide-open hood, increasing maintenance space by 10%.

The optimized heat dissipation system, improved counterweight heat dissipation channel and reduced wind resistance of the radiator enable the cooling efficiency to rise by 10%.

Large-screen LED instrument newly developed, which can completely display information such as the running status of the vehicle, fault detection and maintenance reminder in front of the driver more intuitively and can improve the convenience of maintenance.


According to demands, can be matched with different accessories



About us

MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production,  in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
