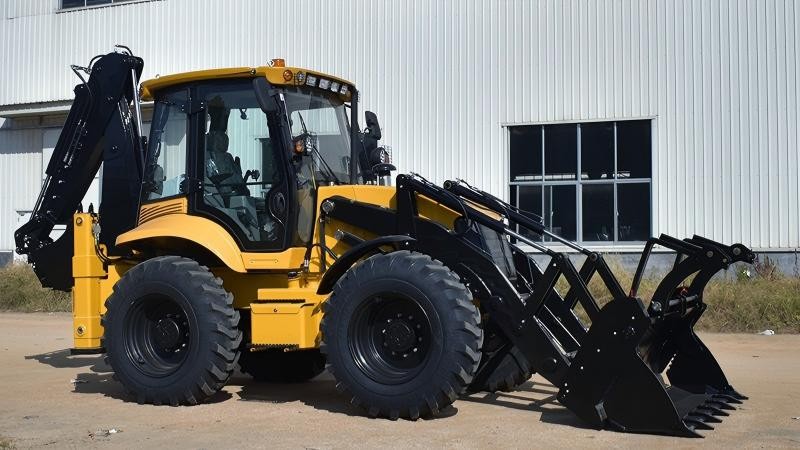

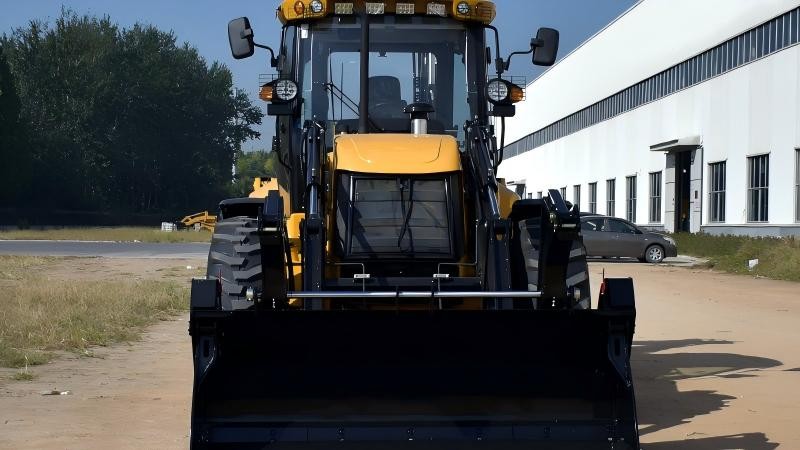

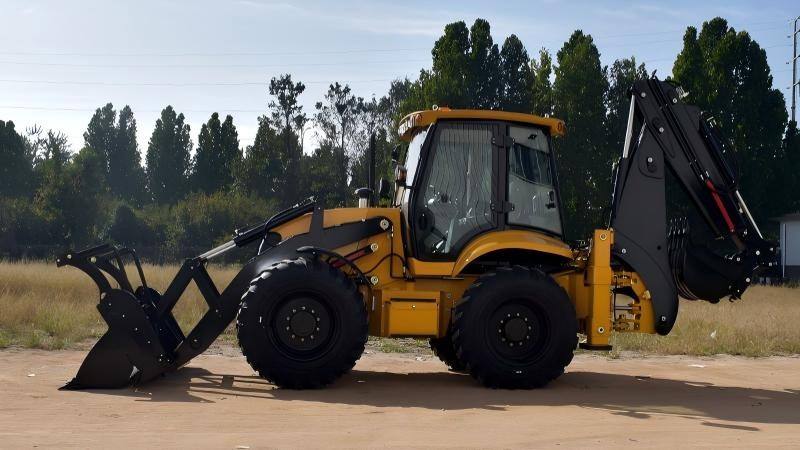

388H Backhoe Loader: A Versatile Powerhouse for Modern Construction Sites

The 388H Backhoe Loader represents a significant advancement in compact construction equipment, combining robust performance with exceptional versatility in a surprisingly agile package. With an overall operating weight of 10,300 kg and dimensions measuring 6,450 mm in length, 2,500 mm in width, and 3,940 mm in height, this machine strikes an optimal balance between substantial working capacity and manageable size for diverse job sites. The 2,335 mm wheelbase provides remarkable stability during operation, while the 16.9-28 tires deliver superior traction across various challenging terrains, from soft agricultural fields to rugged construction zones. Powered by the reliable YC4A105Z-T20 engine generating 75 kW of output, the 388H ensures consistent power delivery for demanding tasks. The inclusion of a certified Roll-Over Protective Structure (ROPS) cabin underscores the manufacturer's commitment to operator safety, creating a secure working environment that meets international safety standards while maintaining excellent visibility and comfort.

When evaluating excavation capabilities, the 388H demonstrates impressive specifications that compete effectively with larger machinery. Its maximum digging depth of 3,820 mm allows contractors to tackle substantial excavation projects typically reserved for dedicated excavators, while the bucket dumping height of 3,050 mm facilitates efficient loading into standard dump trucks. The machine's dual bucket system—featuring a 0.3 m³ backhoe bucket and a generous 1.2 m³ front loader bucket—provides exceptional flexibility for both precision digging and bulk material handling. With a substantial loading lifting capacity of 2,500 kg and a practical bucket dumping distance of 870 mm, operators can work efficiently with minimal repositioning. The innovative four-wheel steering system significantly enhances maneuverability in confined spaces, and the unique crab walk functionality permits sideways movement that proves invaluable when working along barriers or in restricted areas where conventional turning would be impossible. These technological features collectively make the 388H an outstanding choice for utility installation, foundation work, and site development where space constraints challenge traditional equipment.

Beyond its mechanical specifications, the 388H incorporates thoughtful design elements that optimize both productivity and operator experience. The crab walk mode, executed through sophisticated hydraulic controls, enables precise lateral positioning that dramatically reduces the time spent maneuvering around obstacles. This capability, combined with the four-wheel steering system, allows the machine to work efficiently along fences, building foundations, and trenches with minimal disruption to surrounding areas. The ROPS-certified cabin not only meets safety regulations but also features ergonomic controls, adjustable seating, and enhanced sound insulation to minimize operator fatigue during extended work periods. Additionally, the machine's weight distribution and compact dimensions facilitate easier transportation between job sites using standard equipment trailers, reducing logistical costs and increasing deployment flexibility for contractors managing multiple projects simultaneously. The intelligent hydraulic system provides smooth, responsive control of all functions, while the accessible service points simplify routine maintenance procedures.
