Will a Walk-Behind Electric Pallet Truck Fit Your Pallets and Packing Stations?

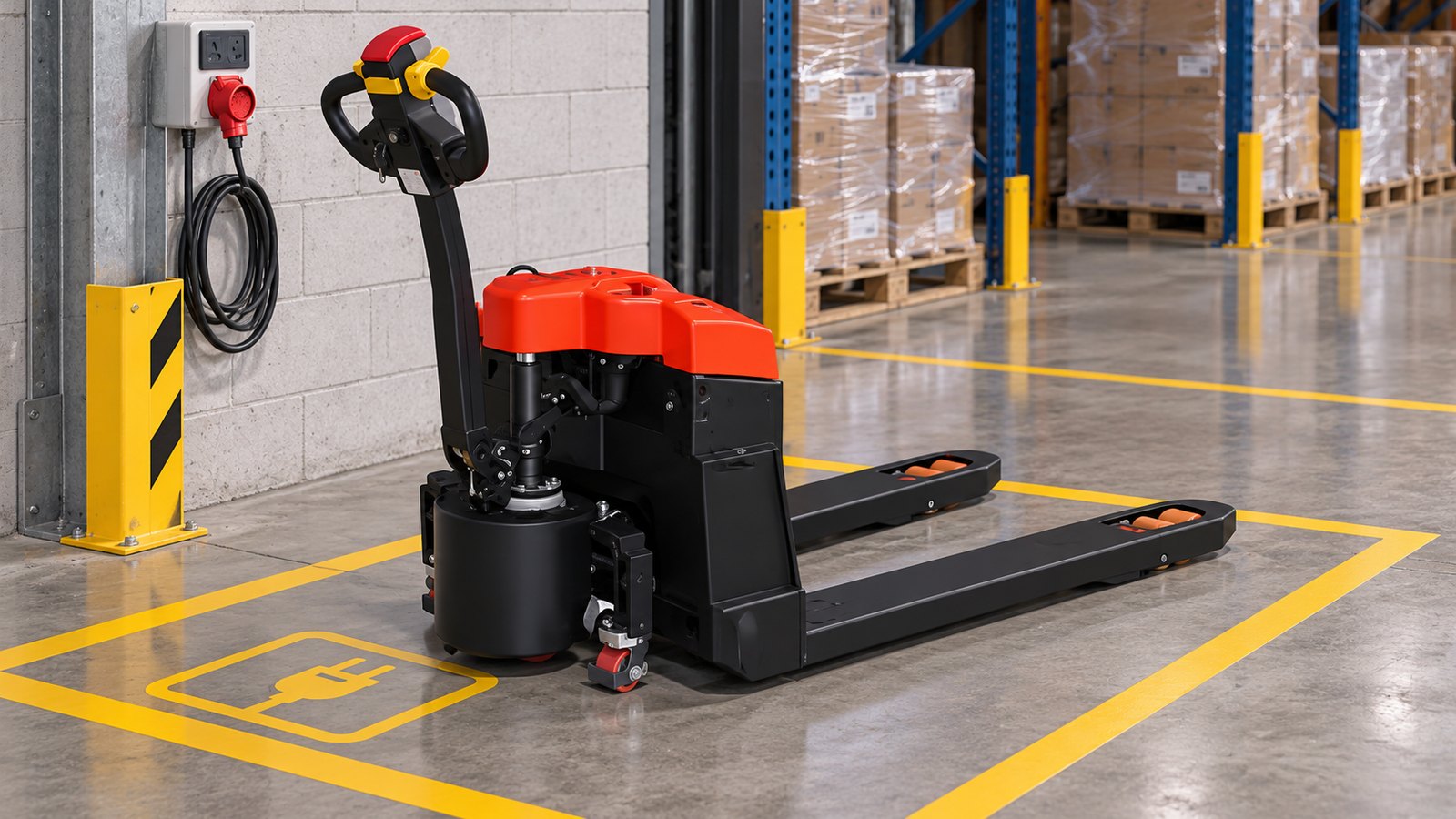

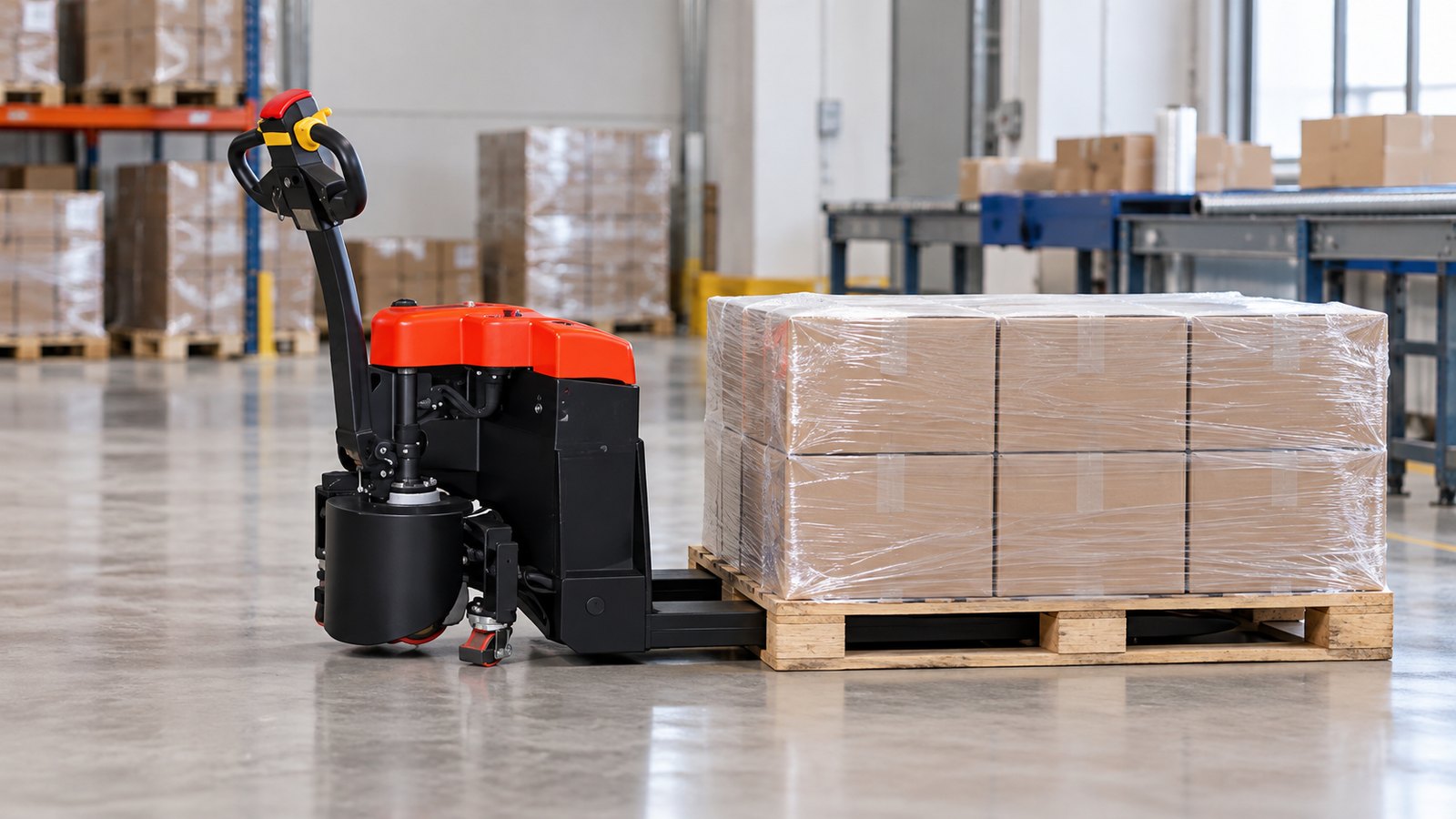

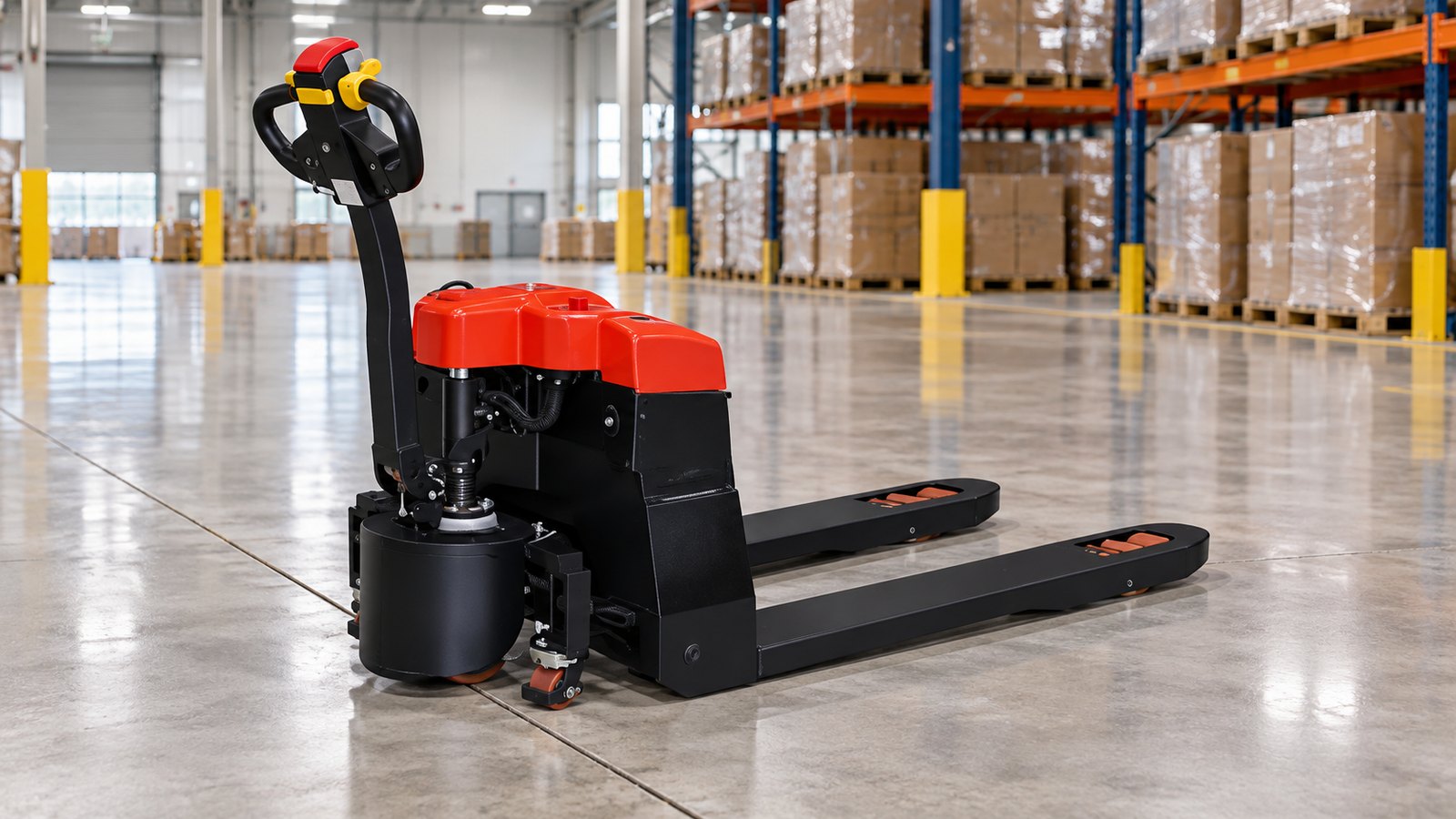

An electric pallet truck can have sufficient rated capacity and still fail to collect a particular pallet. For buyers planning a packing station or dispatch area, the first question is whether the forks and load rollers can enter, lift and leave the actual pallet without interference. ZGFORKLIFT / MYZG recommends comparing the pallet geometry with the final truck configuration. The illustrations show a compact walk-behind layout; they do not establish dimensions or certify compatibility with every pallet shown in a catalogue.
Begin with a sample of every pallet type used in normal operation. Record overall length, width, entry direction and the clear height beneath the deck. Measure the openings themselves rather than assuming that nominal pallet dimensions describe the space available to the forks. Look for bottom boards, blocks, fasteners and damaged edges along the roller path. A pallet that accepts forks from one direction may not permit the same roller movement from another. Record the differences before requesting a quotation.
Next obtain the selected truck's lowered fork height, fork length, individual fork width and overall fork spread from the supplier. Compare these measurements with the smallest opening in the actual pallet sample, including variation among suppliers. Ask where the load rollers travel during entry and lifting. They must not be forced onto a board or trapped behind a block. Do not remove pallet boards or modify the truck to solve an unexplained interference problem. A different approved fork arrangement or pallet design may be needed.
The packing station introduces another set of clearances. A pallet placed under a bench may be accessible to the forks while the battery housing, drive unit or tiller cannot approach far enough. Measure the open space at floor level and the clearance above the entire truck body. Consider the operator's standing position and tiller movement during approach and withdrawal. Plan a clear working area so the operator does not need to stand between the truck and a fixed bench, wall or loaded pallet to complete the movement.
Load position matters as much as physical entry. Check the load weight, distribution and stability, and compare them with the capacity information for the chosen configuration. A long load extending beyond a short pallet can change the handling conditions even when its total mass appears acceptable. Packaging must keep the load stable without hiding damaged pallet components. Explain unusual loads to the supplier before ordering. Never use a trial with an uncertain load as a substitute for confirmation of the machine's intended operating limits.
Include the route between storage and packing in the assessment. Small load rollers encounter floor joints, debris and changes in level differently from larger industrial-truck wheels. Inspect the route for broken concrete, loose wrapping and thresholds. A smooth-looking route in a photograph does not establish suitability. Record floor conditions, gradients and any loading bridge separately, then ask whether the selected model is approved for them. Keep pedestrian routes separated and provide enough clear space for normal stopping and turning.
A useful acceptance check starts with an undamaged sample pallet on a level approved floor. A trained operator can then follow the manufacturer's procedure to check empty entry, withdrawal and clearances, before any authorized loaded demonstration. Observe the rollers, fork tips, body and tiller throughout the movement. Stop when interference or unexpected resistance appears; repeated impacts can damage both pallet and equipment. Keep a written record of the pallet sample, truck configuration and agreed observations so later deliveries can be compared consistently.
For a quotation, send pallet photographs from the front and underside, opening measurements, load details and a simple packing-area sketch to Shandong Zhuogong Machinery equipment Co.,Ltd. State how many moves are expected per shift and whether charging space is available. The ZGFORKLIFT / MYZG team can discuss the appropriate configuration and the documents needed for a purchasing decision. Contact WhatsApp +86 131 7691 0558 or MYZG@my-forklift.com and include your country, pallet types and required delivery timing.
