Description
Product Feature

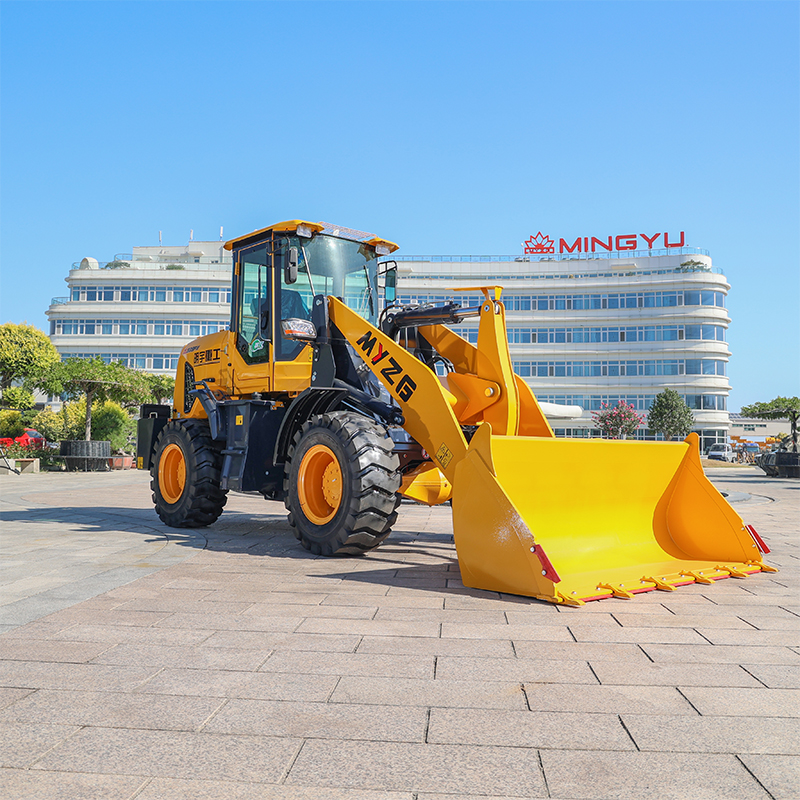

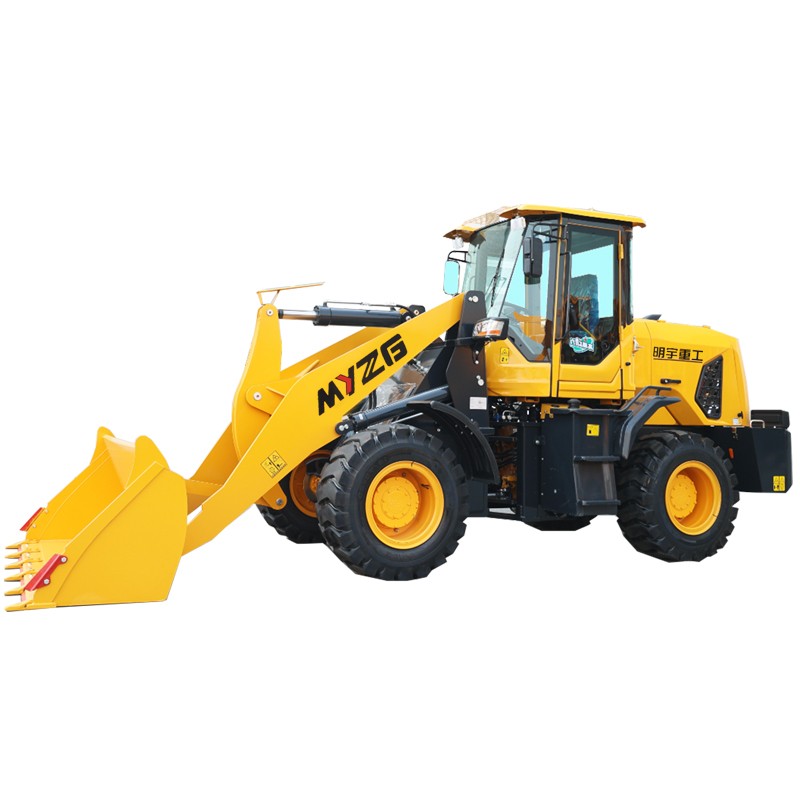

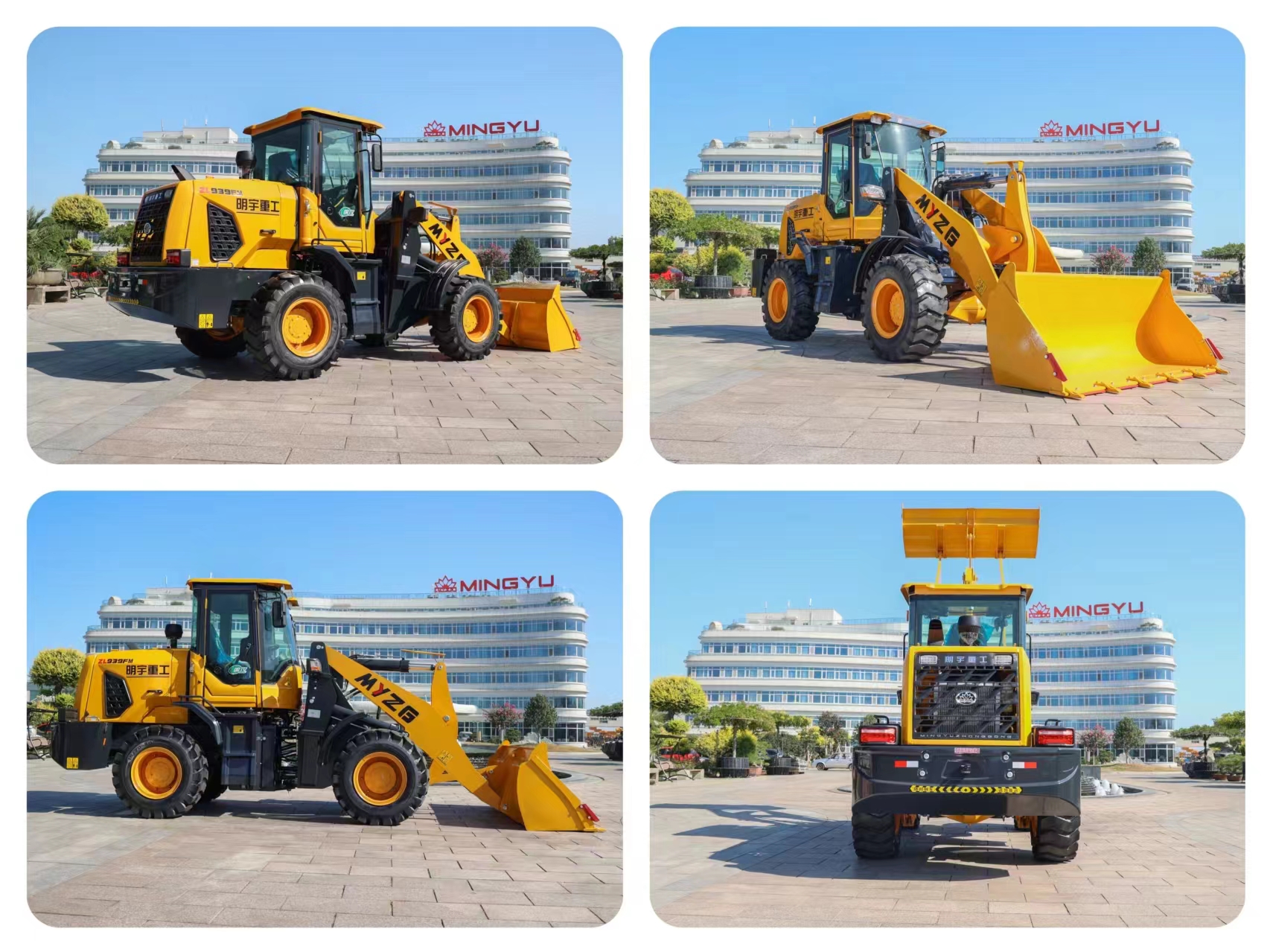

MYZG ZL-938F, four-wheel drive, full hydraulic steering, powerful power, can
choose a variety of work devices and auxiliary tools, to achieve a multi-machine,
widely used in infrastructure, sanitation, farmland, road repair, ports, freight
yards and other places of loading, traction, lifting, transportation and other
operations.
·Traction force ≥ 34KN, rising force 22KN, outstanding capability.
·Turning radius 2950mm, strong adaptability
· Extra long wheelbase, more heavy duty
Parameter
| rated load capacity | 2000kg |
| rated bucket capacity | 1.2m³（big bucket:1.8m³） |
| operating weight | 5500kg |
| engine model |
quanchai 4c6-88m22 |
| rated power | 76kw |
| rated speed | 2400r/min |
| dimensions | 6475*2250*2815mm |
| dump height | 3550mm |
| dump distance | 950mm |
| min.turning radius | 2950mm |
| wheel base | 2515mm |
| wheeltrack | 1615mm |
| tyre size | 16/70-20 |
RELIABILITY
· QUANCHAI 4C6-88M22 Tier 2 , turbocharging, electronically controlled, high pressure common rail, air inlet preheating and other functions
· Electronic pedal signal input and output controlled
· CAN communication to realize the communication of each function signal
· MYZG fixed shaft straight gear transmission with reliable quality and low cost
· Reinforce frame, passed 200,000 fatigue strengthening tests, strong carrying capacity, reasonable load distribution
· MYZG self-made reinforced axle with high carrying capacity, long service life
COMFORT
· New design ZL series FOPS&ROPS cab, space increase 15%, view increase 7%, good seal performance, low vibration and noise
· New generation colorful LCD panel
· Automatic leveling of bucket
· Boom lift limit
ECONOMY
· Set the three-level power mode, which are respectively suitable for heavy load conditions, standard conditions and light load conditions

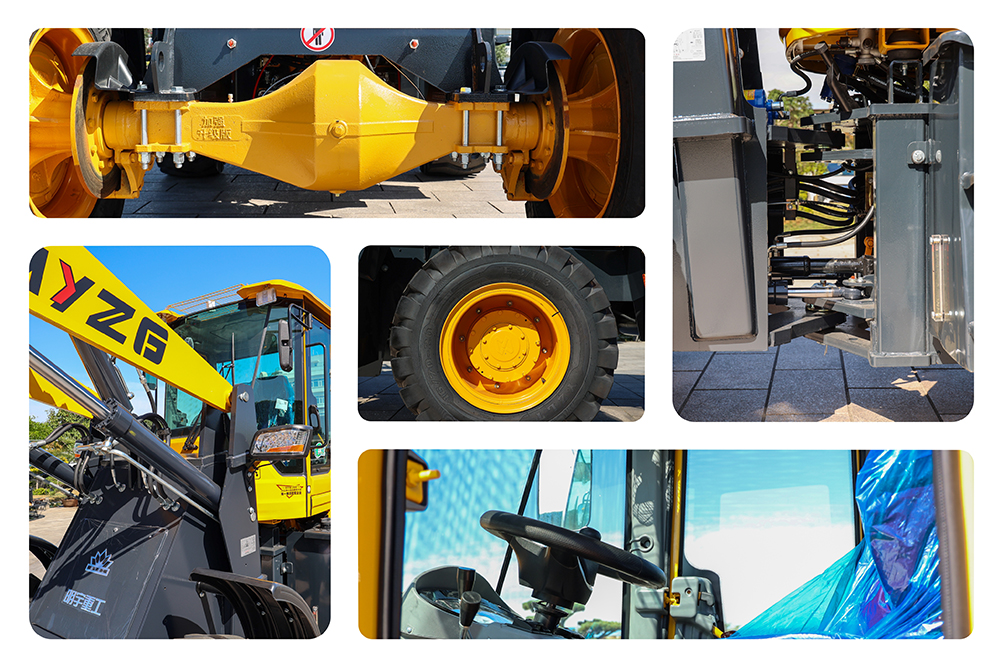

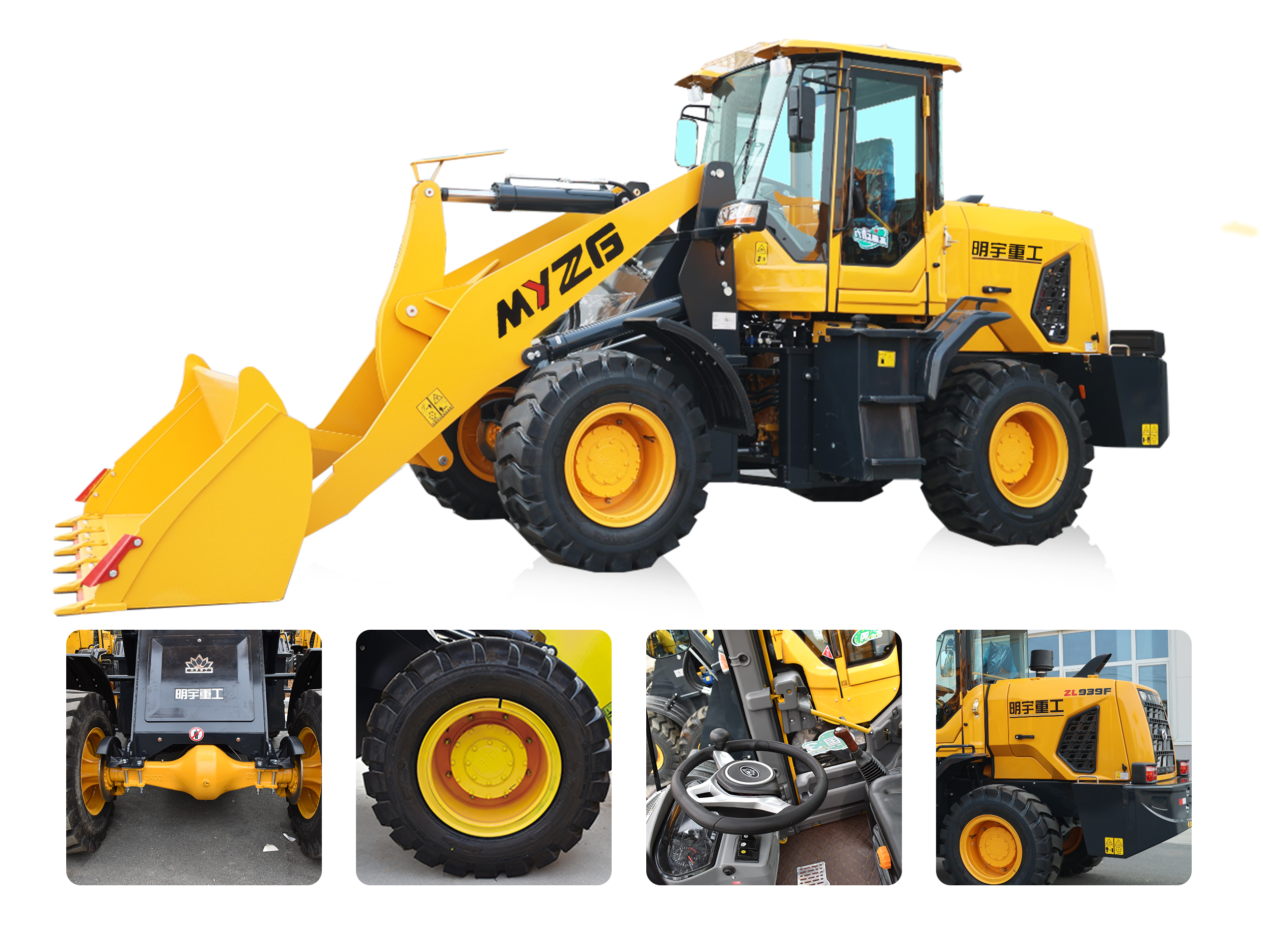

Detail
DIFFERENTIATED PRODUCTS
According to different applications, various attachments are for option, such as extra-large coal bucket, log fork, grain bucket and grass fork etc.
About us
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei, Huadong, Deutz,Huafeng,Huangdong,Cummins, Changchai, Xinchai,Yanmar, etc.
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.

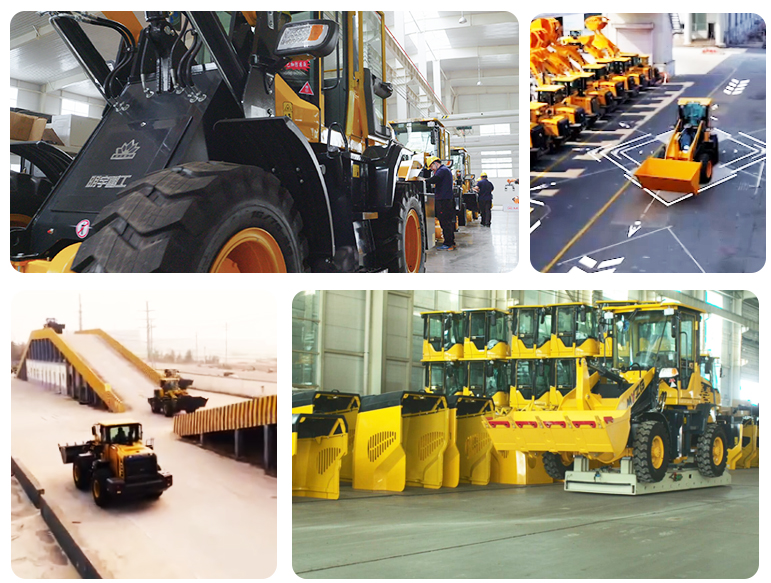

Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.

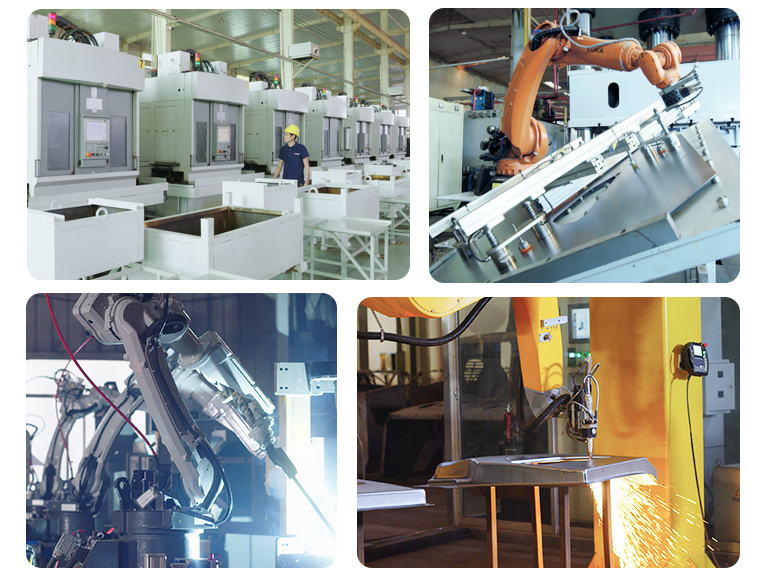

MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
