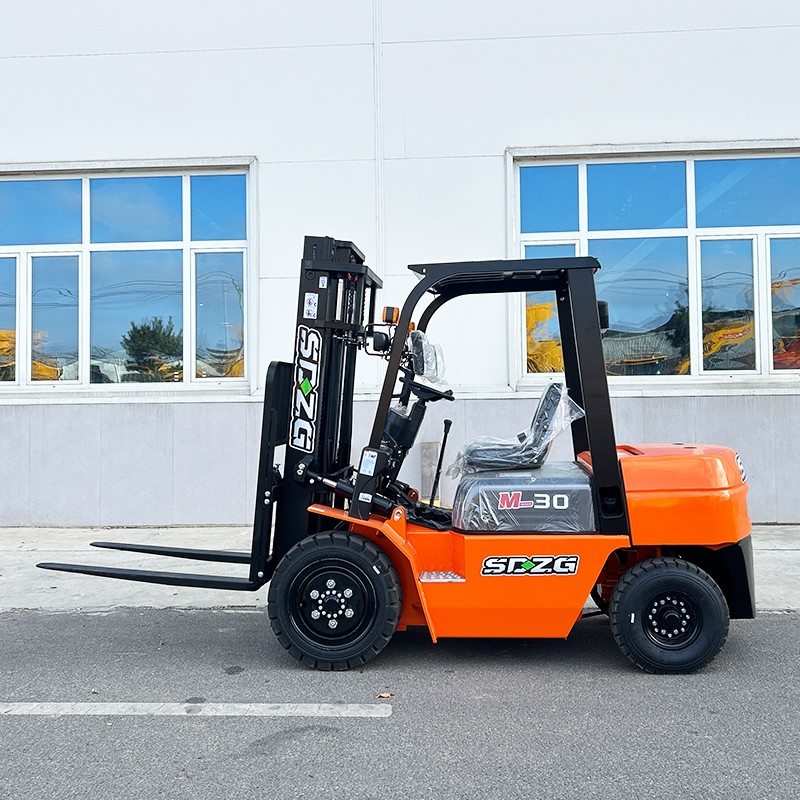

ZGLOADER / MYZG CPC30 diesel forklift Application and Fleet Planning Guide
ZGLOADER / MYZG CPC30 diesel forklift Application and Fleet Planning Guide
The ZGLOADER / MYZG CPC30 is a 3000 kg diesel counterbalance forklift developed for buyers who need a practical answer to real material-handling problems rather than a bare parameter list. This page connects verified reference data with site layout, load shape, duty cycle, surface condition, maintenance capacity and commercial support. Shandong Zhuogong Machinery equipment Co.,Ltd can configure the delivered machine after the customer confirms the load, route, lift height, attachment, destination and compliance requirements. All MYZG products.
Customer need and application solution
Customers usually lose productivity because the selected truck is too small for the real load center, too large for the aisle, poorly matched to the surface, or unsupported after delivery. CPC30 planning therefore begins with the heaviest normal load, its dimensions and center of gravity, the maximum lift, rack clearance, doorway height, turning space, ramp gradient and daily working hours. The solution is not simply more rated capacity: it is a balanced specification that keeps residual capacity, visibility, traction and service access under control.
Verified reference configuration
| Rated capacity | 3000 kg |
| Load center | 500 mm |
| Power | diesel |
| Engine reference | Quanchai / Xinchai options |
| Standard lift | 3000 mm |
| Turning radius | 2520 mm |
| Travel speed | 20 km/h |
| Gradeability | 20% |
| Service weight | 4290 kg |
| Dimension reference | 3870 × 1228 × 2140 mm with forks reference |

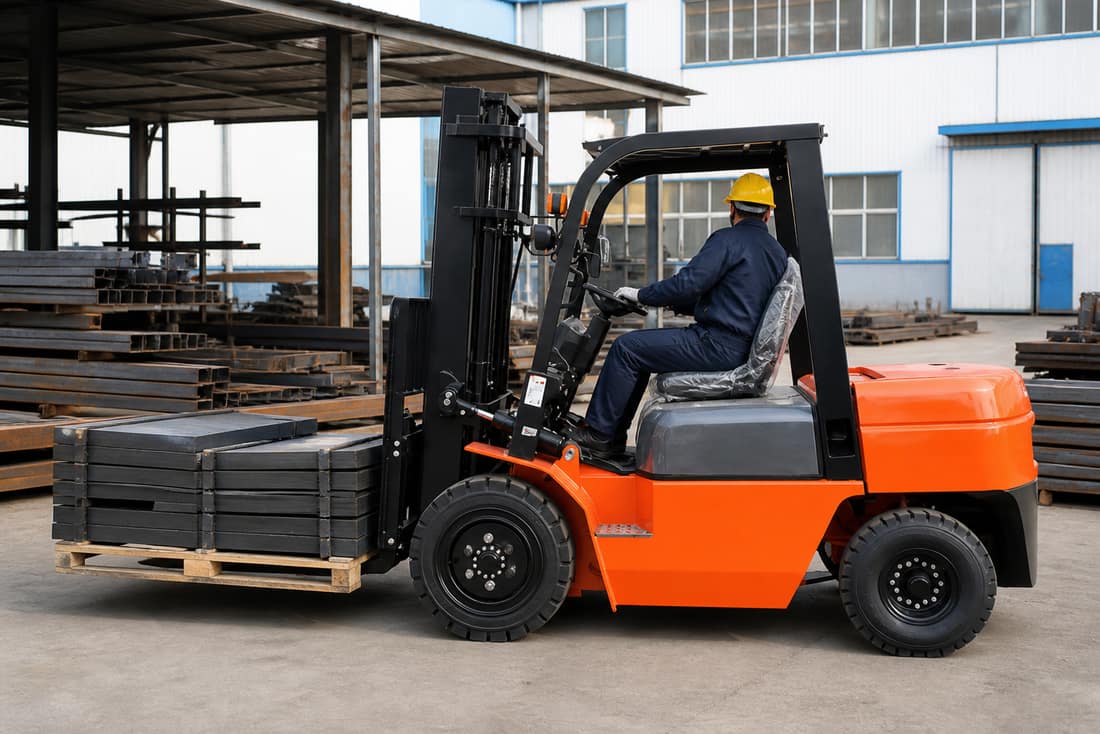

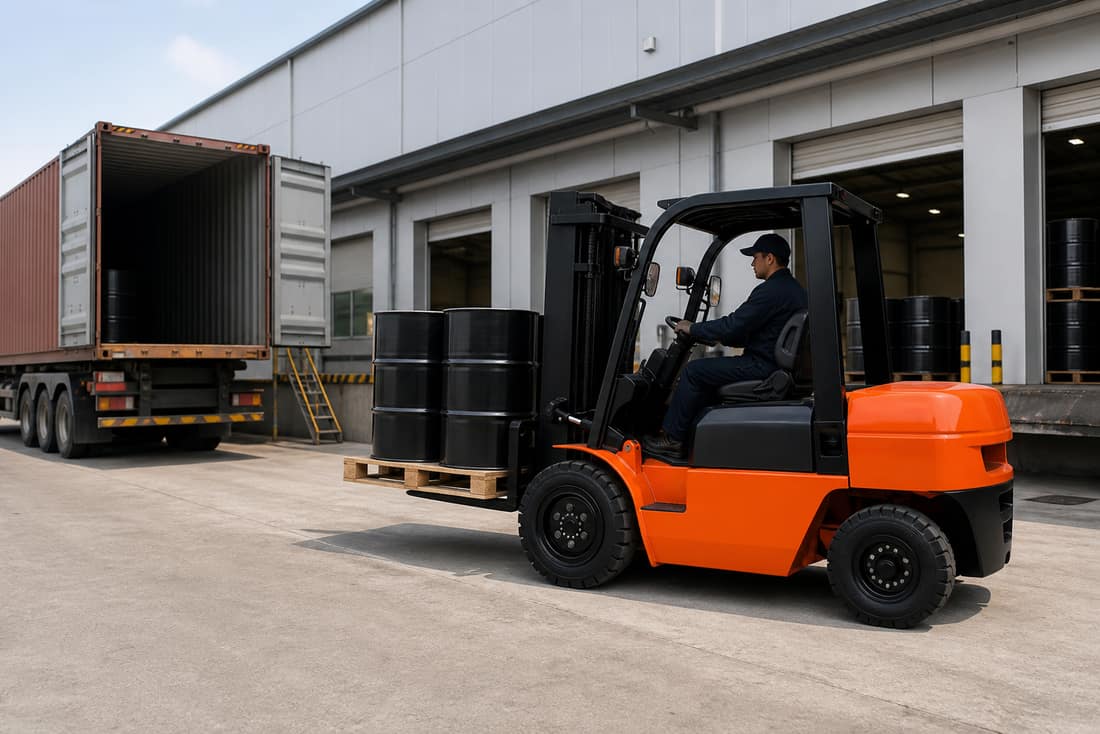

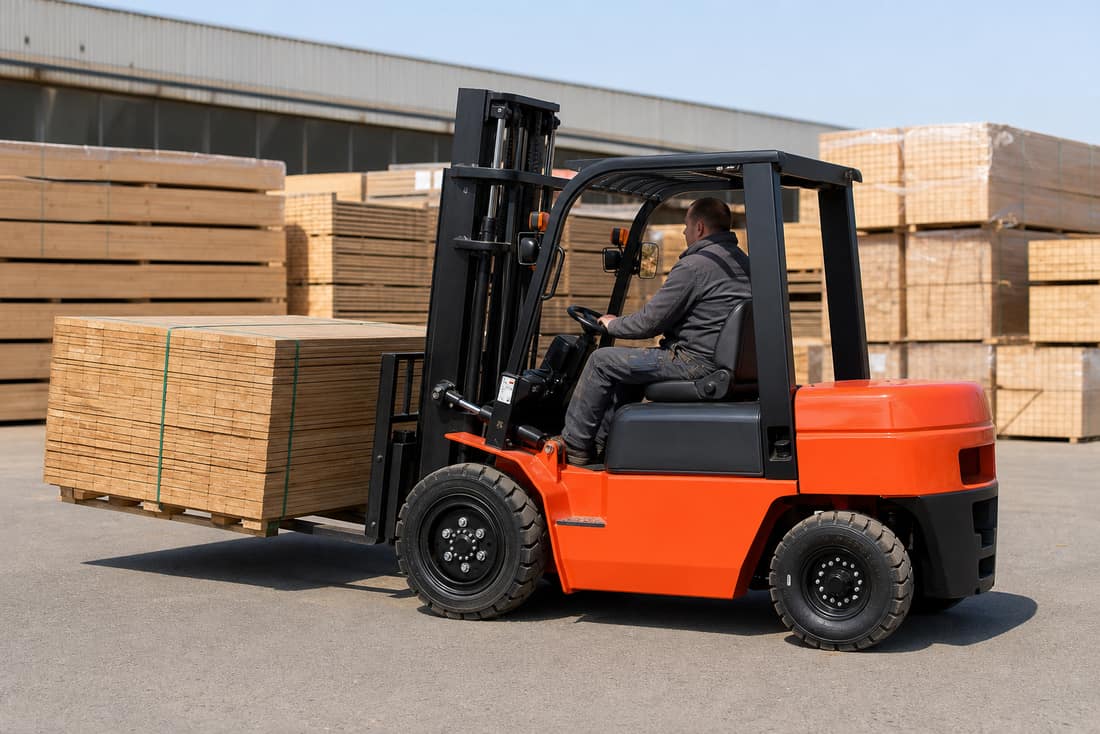

The reference configuration supports steel fabrication, timber handling, freight terminals and other comparable industrial operations after a site assessment. Outdoor diesel use requires appropriate traffic control and emissions management. LPG/gasoline operation can support mixed work patterns, but indoor operation still requires ventilation, fuel safety procedures and local approval. Loads must be stable, secured and within the delivered load chart. diesel forklift.
Real work scenarios
The reference configuration supports steel fabrication, timber handling, freight terminals and other comparable industrial operations after a site assessment. Outdoor diesel use requires appropriate traffic control and emissions management. LPG/gasoline operation can support mixed work patterns, but indoor operation still requires ventilation, fuel safety procedures and local approval. Loads must be stable, secured and within the delivered load chart.
Buying and model selection guide
For procurement, send one representative load drawing or photograph, weight, dimensions, load center, fork entry and stacking height. Add aisle width, floor or yard condition, slopes, shift length, ambient temperature and destination port. Confirm whether pneumatic or solid tires, duplex or triplex mast, side shifter, fork positioner, clamp, cabin, lighting or weather protection is required. Every attachment and higher mast can change residual capacity, so the final quotation and load chart must be reviewed together. equipment buying guides.
Total cost of ownership
Total cost of ownership includes fuel, tires, filters, fluids, planned service, wear parts, operator training, downtime, spare-part logistics, freight, customs and resale value. A low purchase price can be expensive if the truck is oversized, underused or difficult to support. Buyers should compare expected productive hours, fuel availability, service intervals, component access and the supplier's ability to identify parts from the delivered serial number.
Daily inspection and maintenance
Daily inspection should cover forks, heel wear, locking pins, carriage, mast channels, chains, rollers, hoses, cylinders, tires, wheel fasteners, brakes, steering, horn, lights, warning devices and fluid leaks. Check engine oil, coolant and fuel system according to the delivered manual. Clean radiators and air filters for dusty work, keep mast lubrication controlled, record defects and isolate the truck when a safety function is not correct. Planned maintenance protects uptime and helps dealers forecast parts demand.
Dealer and fleet business
Dealers and rental fleets should qualify the application before quoting. A useful demonstration shows pre-start inspection, safe mounting, load engagement, travel with the load low, controlled stacking, parking and shutdown. Local value comes from commissioning, operator familiarization, manuals, translated parts support, scheduled inspections and fast identification of consumables. Stocking a small service kit for the delivered configuration can reduce avoidable downtime.
CE, EPA, export and service trust
CE documentation, EPA-related engine requirements and other market documents depend on the final engine, configuration and destination; they must be confirmed in writing before production. No unverified certificate number or performance claim is implied here. Shandong Zhuogong Machinery equipment Co.,Ltd supports configuration review, production communication, export packing, shipping documents, spare parts and after-sales coordination for ZGLOADER / MYZG equipment. contact the export team.
Request a configuration quotation
For an accurate quotation, provide load weight and dimensions, load center, lift height, aisle and doorway measurements, surface, gradients, hours per shift, fuel preference, engine-emission requirement, attachment list, destination port and requested documents. The response can then compare the base truck, mast, tires, hydraulics, packing, spare parts and service plan instead of offering an incomplete price.
