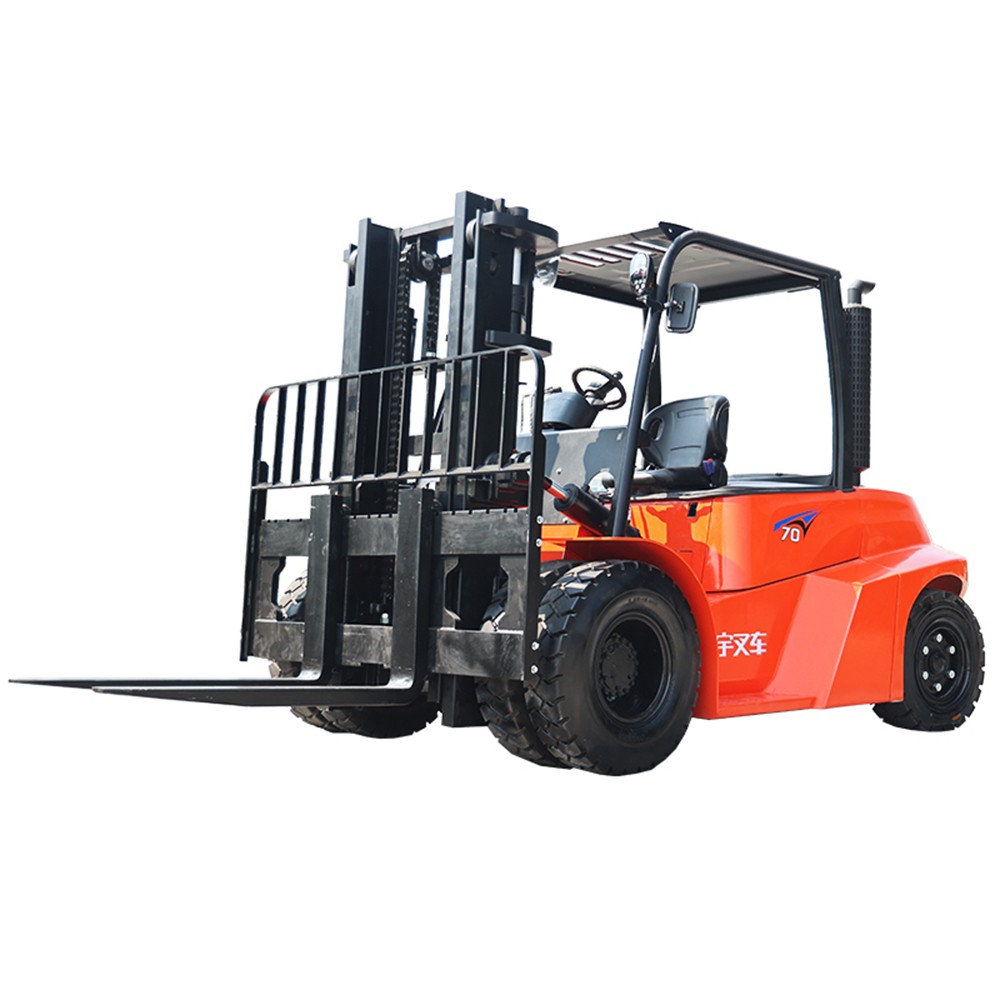

ZGFORKLIFT / MYZG CPC70 7 Ton Diesel Forklift
ZGFORKLIFT / MYZG CPC70 7 Ton Diesel Forklift for Industrial Material Handling
A robust 7000 kg counterbalance forklift with multiple diesel engine options, 29 km/h full-load travel speed, 20% gradeability and a stable 9350 kg chassis for demanding outdoor shifts.
Overview: dependable diesel torque for productive material handling
The ZGFORKLIFT / MYZG CPC70 is a 7 ton industrial diesel forklift manufactured by Shandong Zhuogong Machinery Equipment Co., Ltd. for logistics yards, building-material plants, timber depots, factories, farms and distribution centers. Its straightforward diesel powertrain is designed for continuous work where fast refueling, strong low-speed torque and outdoor durability are operational priorities.
The available diesel engine packages supply the torque required to lift a rated 7000 kg at a 600 mm load center. A 9350 kg unladen mass, 2250 mm wheelbase, 200 mm ground clearance and 8.25-15-14PR tyres give the CPC70 a stable base for controlled operation in industrial yards.
MYZG CPC70 factory technical specifications
The table presents the mechanical, dimensional and performance data for this 7000 kg diesel counterbalance forklift. Final mast, fork, tyre, cab, engine-emission and attachment selections should be confirmed for the destination market and actual load.
| Model | CPC70 (7.0T-D series) |
| Power type | Internal-combustion diesel engine |
| Engine options | Mitsubishi / Isuzu / Xinchai / Quanchai / Cummins |
| Rated capacity | 7000 kg |
| Load center | 600 mm |
| Operator position | Seated operator |
| Overall length with/without forks | 4800 / 3580 mm |
| Overall width | 1995 mm |
| Lowered mast/overhead guard height | 2625 / 2460 mm |
| Overall lifting height of mast | 4420 mm |
| Standard lift | 3000 mm |
| Minimum turning radius | 3380 mm |
| Mast tilt forward/backward | 6° / 12° |
| Full-load lifting speed | 500 mm/s |
| Full-load travel speed | 29 km/h |
| Maximum gradeability | 20% |
| Unladen net weight | 9350 kg |
| Transmission | Hydraulic |
| Fork size | 1220 × 150 × 65 mm |
| Front/rear tyre size | 8.25-15-14PR / 8.25-15-14PR |
| Hydraulic working pressure | 20 MPa |
| Wheelbase/ground clearance | 2250 / 200 mm |
| Front overhang | 590 mm |
| Front/rear wheel track | 1470 / 1700 mm |
Engineering design and principal advantages
1. Multiple diesel engine options and responsive hydraulic performance
The CPC70 can be configured with Mitsubishi, Isuzu, Xinchai, Quanchai or Cummins diesel power, with a documented starting rated power of 85 kW. The hydraulic system delivers 500 mm/s full-load lifting speed, while full-load travel speed reaches 29 km/h for productive yard cycles.
2. 3380 mm turning radius with stable 9350 kg weight
A 1995 mm overall width, 3580 mm length without forks and 3380 mm turning radius define the CPC70 working envelope. The 9350 kg chassis, 1470 mm front track, 1700 mm rear track and 2250 mm wheelbase provide a stable counterbalance foundation when the approved load chart is followed.
3. Heavy-duty tyres and practical ground clearance
The 8.25-15-14PR front and rear tyres provide traction and cushioning for this outdoor diesel forklift. Minimum ground clearance is 200 mm, helping the machine cross normal yard joints and prepared surface irregularities while the operator maintains a safe controlled speed.
4. 3000 mm standard lift and operator-focused mast design
The standard mast lifts 3000 mm, with a 6° forward and 12° backward tilt. The overhead guard height is 2460 mm, and the overall mast lifting height reaches 4420 mm in the documented configuration. A wide-view mast and full LCD instrumentation support safe, efficient operation.
Recommended application environments
The CPC70 combines durable construction, diesel endurance and 7000 kg capacity for heavy-duty outdoor and mixed industrial handling when ventilation, floor strength, traffic control and load stability have been assessed.
Construction materials and stone yards
Move brick pallets, bagged cement, formwork, tools, tiles and prepared stone products between storage areas, production lines and transport vehicles.
Timber, agriculture and manufacturing
Handle lumber packs, farm supplies, machinery parts, steel components and palletized raw materials on prepared surfaces using suitable forks or approved attachments.
Warehouses, logistics yards and truck loading
Transfer export cargo, containers, pallets and packaged products where a diesel truck can be refueled quickly and operated in properly ventilated or outdoor work zones.
Frequently asked questions
Which engine is used in the CPC70?
Available engine packages may include Quanchai, Xinchai, Mitsubishi, Isuzu or Cummins. The final engine and emission package should be confirmed for the destination market and operating conditions.
What is the turning radius of this 7 ton diesel forklift?
The documented minimum turning radius is 3380 mm. Buyers should add clearance for the actual pallet, attachment, fork length, rack protection and operator skill.
Can the CPC70 be supplied with hydraulic attachments?
Yes. MYZG can discuss side shifters, fork positioners, clamps, rotators, duplex or triplex masts and cab options. Residual capacity must be recalculated for the selected mast, load center and attachment.
Configure a ZGFORKLIFT / MYZG CPC70 for your site
Send the load weight and dimensions, lift height, aisle width, operating surface, ramp gradient, working hours, engine-emission requirement, destination port and attachment needs. The factory team can prepare a configuration, quotation, packing plan and shipping proposal.
