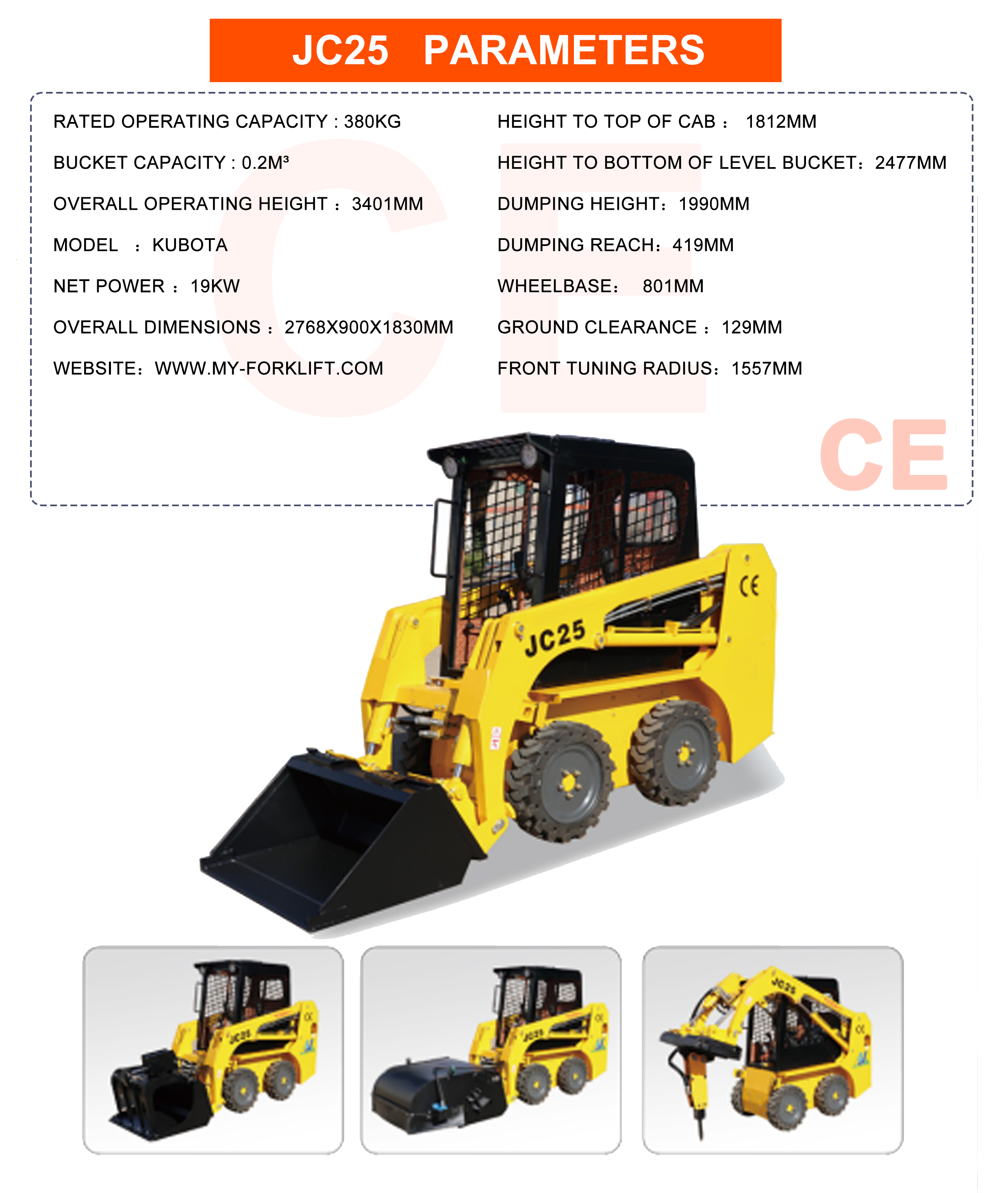

Description
| Overall operating height (mm) | 3401 |
| height to top of cab (mm) | 1812 |
| Height to bottom of level bucket(mm） | 2477 |
| Without bucket length（mm） | 2090 |
| overall length with bucket(mm) | 2768 |
| Dumping angle at maximum height(° ) | 36 |
| Dumping height(mm) | 1990 |
| Dumping reach(mm) | 419 |
| Rollback o bucket on ground(° ) | 25 |
| Rollback of bucket at full height(° ) | 97 |
| Wheelbase(mm) | 801 |
| Ground clearance(mm) | 129 |
| Angle of departure(° ) | 28 |
| Front turning radius without bucket(mm) | 971 |
| Front tuning radius(mm) | 1557 |
| Rear tuning radius(mm) | 1146 |
| Rear axle to bumper (mm) | 738 |
| Tread width (mm) | 747 |
| Width (mm) | 880 |
| Bucket width (mm) | 900 |
