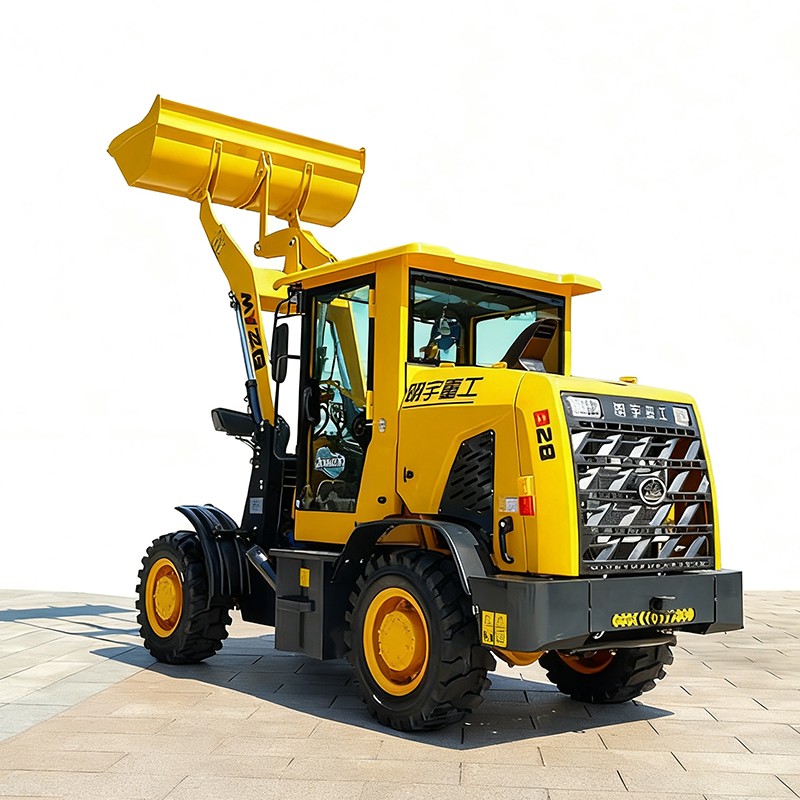

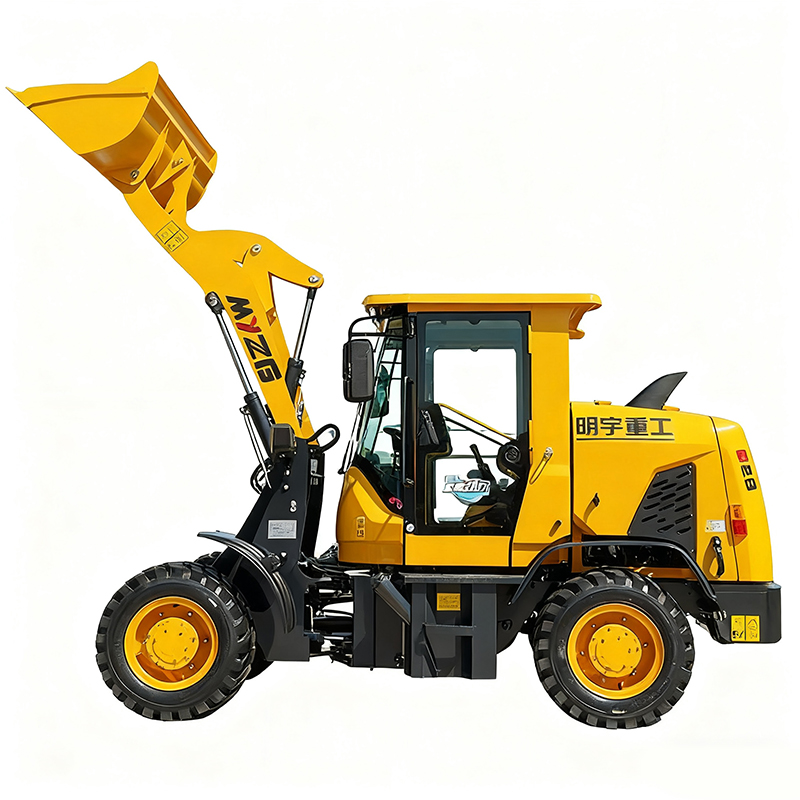

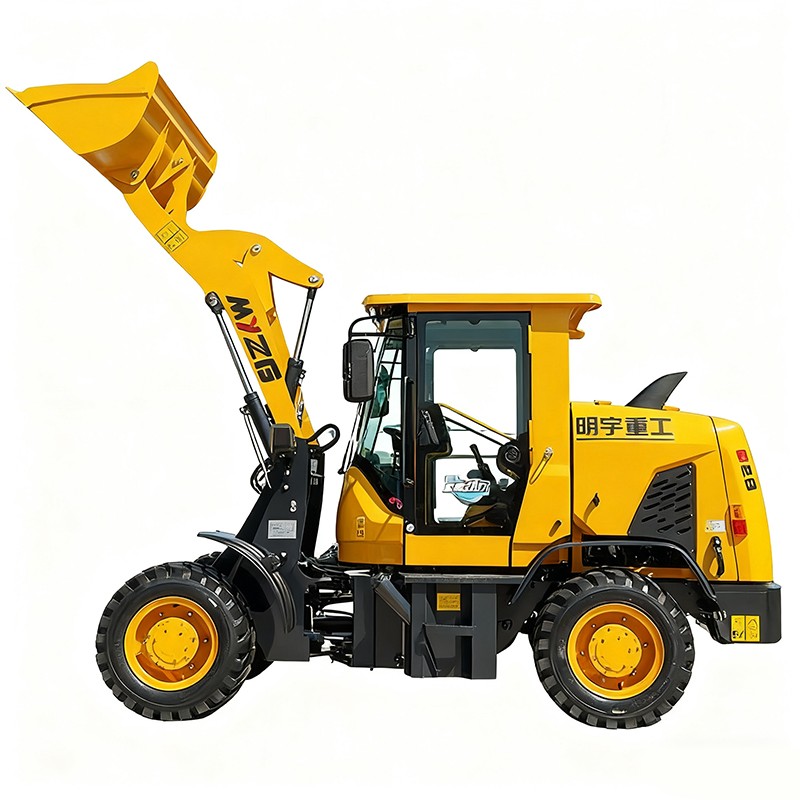

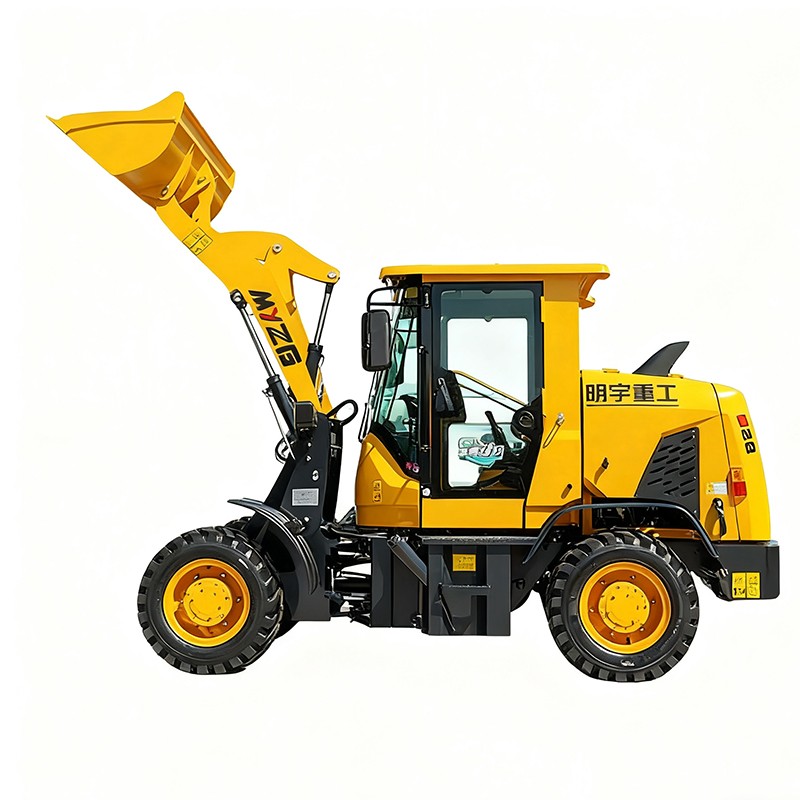

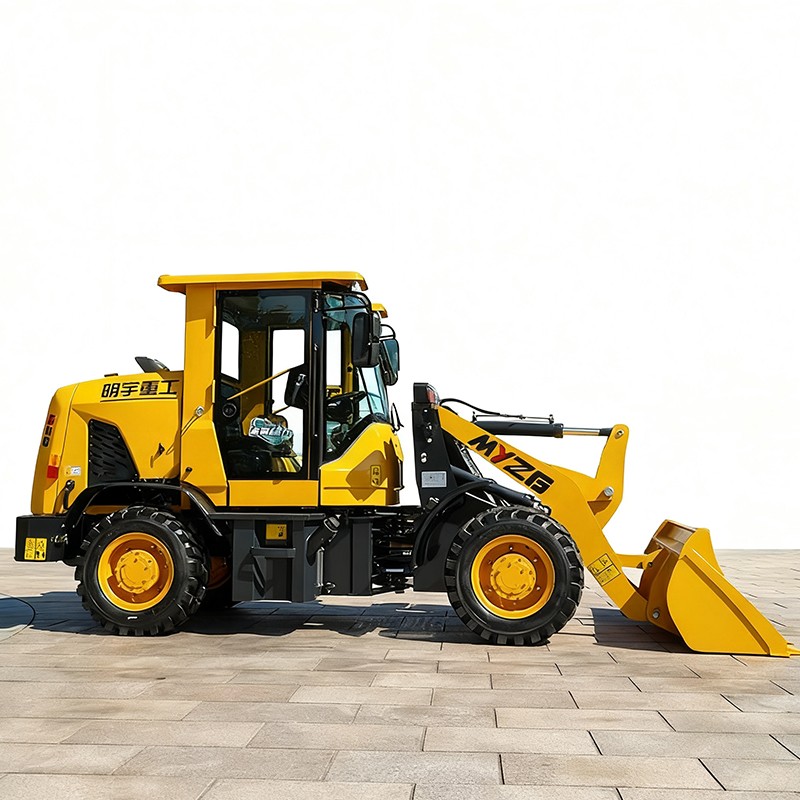

LTM-900 Compact Articulated Wheel Loader
The LTM-900 Compact Articulated Wheel Loader stands as a testament to modern engineering, meticulously designed to meet the rigorous demands of contemporary small to medium-scale operational environments. Its very essence is defined by a harmonious blend of robust construction and intelligent design principles, culminating in a machine that excels in versatility, reliability, and operational economy. With an operating weight of 2360 kg, the LTM-900 achieves an optimal equilibrium between substantial presence for stability and a lightweight enough frame for exceptional agility and minimal ground pressure. This strategic balance makes it an indispensable asset across a diverse spectrum of industries, including but not limited to, general construction, agricultural processing, landscaping and garden design, warehouse logistics, industrial compound management, and municipal maintenance tasks. The machine's compact physical footprint, measuring 4460mm in length, 1550mm in width, and 2100mm in height, is arguably one of its most significant advantages. This dimension set allows it to navigate and operate with unparalleled efficiency in confined spaces where larger, conventional loaders would be rendered ineffective—think narrow alleyways, crowded construction sites, inside storage facilities, greenhouses, and livestock sheds. The core of the LTM-900's prowess lies in its power plant: the renowned Quanchai 4B2-52M22 diesel engine. This four-cylinder, water-cooled engine is celebrated for its durability, fuel efficiency, and consistent power delivery. Generating a rated power of 38 kW (approximately 51 horsepower) at a rated speed of 2400 rpm, it provides ample torque and horsepower to tackle demanding tasks such as digging into heavy piles, lifting full loads, and traversing uneven terrain without hesitation. The engine is designed with advanced combustion technology that ensures complete fuel burn, leading to lower emissions, reduced fuel consumption, and decreased operational costs over the long term. Furthermore, the engine compartment is designed for excellent service accessibility, with easily removable panels and logically placed service points (oil filter, fuel filter, air filter) to simplify routine maintenance procedures, thereby minimizing downtime and ensuring maximum machine availability. This thoughtful integration of power and design establishes the LTM-900 as a benchmark for reliability in its class.
Delving into the performance metrics of the LTM-900 reveals a machine engineered for tangible productivity and operational excellence. Its rated load capacity of 900 kg is a carefully calculated figure that positions it perfectly for handling a vast array of common materials encountered in its target applications. This capacity ensures the loader can efficiently manage materials like sand, gravel, crushed stone, topsoil, compost, fertilizer, animal feed, palletized goods, and various industrial scraps. The companion to this load capacity is the generously proportioned 0.4 cubic meter bucket. This bucket volume is ideal for achieving high cycle times; it is large enough to move a significant quantity of material per pass, yet perfectly sized to prevent overloading the machine's capacity, thus maintaining stability and safety. The bucket itself is constructed from high-strength, abrasion-resistant steel (AR steel) at critical wear points, such as the cutting edge and side plates, significantly extending its service life when working with abrasive materials. A pivotal performance characteristic for any loader is its lifting and dumping capability. The LTM-900 boasts an impressive maximum dump height of 2400 mm. This height is sufficient to clear the sides of standard dump trucks, medium-sized hoppers, and most agricultural feeding bins, making loading operations swift and efficient. Complementing this is the dump reach of 450 mm at maximum height, which is crucial for ensuring clean discharge of materials into the target container, preventing spillage back onto the machine or the working platform. This combination of height and reach streamlines material handling processes, reducing cycle times and manual clean-up efforts. The power from the Quanchai engine is seamlessly transferred to the wheels via the robust Jinlite 265 transmission system. This transmission offers distinct high and low-speed ranges, giving the operator precise control over the machine's performance based on the task at hand. The low-speed range provides high torque for situations requiring immense pushing power, such as digging into a compacted pile, climbing gradients, or working in soft underfoot conditions. The high-speed range, conversely, allows for quick and efficient travel across the job site when moving between loading and dumping areas, thereby boosting overall site efficiency. This intelligent powertrain design ensures that the LTM-900 is not just powerful, but also adaptable and efficient across varied working conditions.
RATED LOAD CAPACITY
900kg
RATED BUCKET CAPACITY
0.4m3
OPERATING WEIGHT
2360KG
ENGINE MODEL
QUANCHAI 4B2-52M22
RATED POWER
38KW
RATED SPEED
2400 r/min
DIMENSIONS
4460*1550*2100MM
DUMP HEIGHT
2400MM
DUMP DISTANCE
450MM
MIN.TURNING RADIUS
2660MM
WHEEL BASE
2155MM
WHEELTRACK
1235MM
TYRE SIZE
10.5/46-16
TRANSMISSION
JINLITE 265 HIGH LOW SPEED
Beyond raw power and performance, the LTM-900's design philosophy places a paramount emphasis on superior maneuverability, operator safety, and ergonomic comfort, recognizing that the operator is the key to unlocking the machine's full potential. The most defining feature of its maneuverability is the articulated steering system. Unlike traditional rigid-frame vehicles, the LTM-900's chassis hinges in the middle, allowing the front and rear sections to turn independently. This engineering marvel results in an exceptionally tight minimum turning radius of just 2660 mm. This capability allows the loader to virtually turn within its own length, providing unparalleled agility in the most cramped and complex work environments, such as inside warehouses, maneuvering between storage racks, or navigating intricate landscape features. The chassis geometry, characterized by a wheelbase of 2155 mm and a wheel track of 1235 mm, is optimized for stability. This configuration ensures a low center of gravity, which, combined with the machine's weight distribution, provides exceptional stability during lifting operations and when traveling with a full load, even on slight inclines or uneven ground. The machine rides on large, heavy-duty 10.5/46-16 industrial tires. These tires offer a substantial contact patch with the ground, delivering excellent traction in both dry and loose conditions, while their robust construction resists punctures and wear. The operator's station on the LTM-900 is designed as a command center for productivity and comfort. It features a comfortable, adjustable suspension seat that reduces operator fatigue during long shifts. The controls are laid out intuitively; typically, a single joystick might control the lift and tilt functions for simplicity, while pedals and a steering wheel (or another joystick for steering) are positioned for natural, low-effort operation. The operator is protected by a certified Roll-Over Protective Structure (ROPS) and Falling Object Protective Structure (FOPS) canopy, which is integral to the machine's design, providing a safety cell in the unlikely event of a rollover or from impacts from above. Excellent all-around visibility from the operator's seat, with minimal blind spots, is ensured by the careful positioning of the mast and the design of the frame, allowing the operator to work confidently and safely in dynamic environments with other personnel and equipment present.
The design philosophy of the LTM-900 prioritizes not only power but also exceptional maneuverability and operator safety. Its compact frame is complemented by an incredibly tight minimum turning radius of just 2660 mm, granted by the articulated steering system. This allows the loader to turn within its own footprint, making it ideal for working in warehouses, greenhouses, and crowded construction areas. The well-balanced chassis, with a wheelbase of 2155 mm and a wheel track of 1235 mm, ensures superior stability during lifting and traveling, even on uneven terrain. The machine rides on large 10.5/46-16 tires that provide excellent traction and a smooth ride, reducing ground disturbance and operator vibration. Safety features are integrated into the design, including a robust Roll-Over Protective Structure (ROPS) as part of the canopy, ensuring a secure working environment.In summary, the LTM-900 Compact Wheel Loader is the ideal solution for businesses seeking a reliable, versatile, and cost-effective machine for their material handling needs. Its combination of a powerful Quanchai engine, high load capacity, excellent lift capabilities, and unmatched maneuverability makes it a valuable investment that will pay dividends in increased efficiency and versatility. Easy to maintain and built with durability in mind, the LTM-900 is designed to withstand the rigors of daily use, ensuring a long service life and a high return on investment. Choose the LTM-900 to enhance your operational capabilities and tackle a multitude of tasks with confidence and ease.
