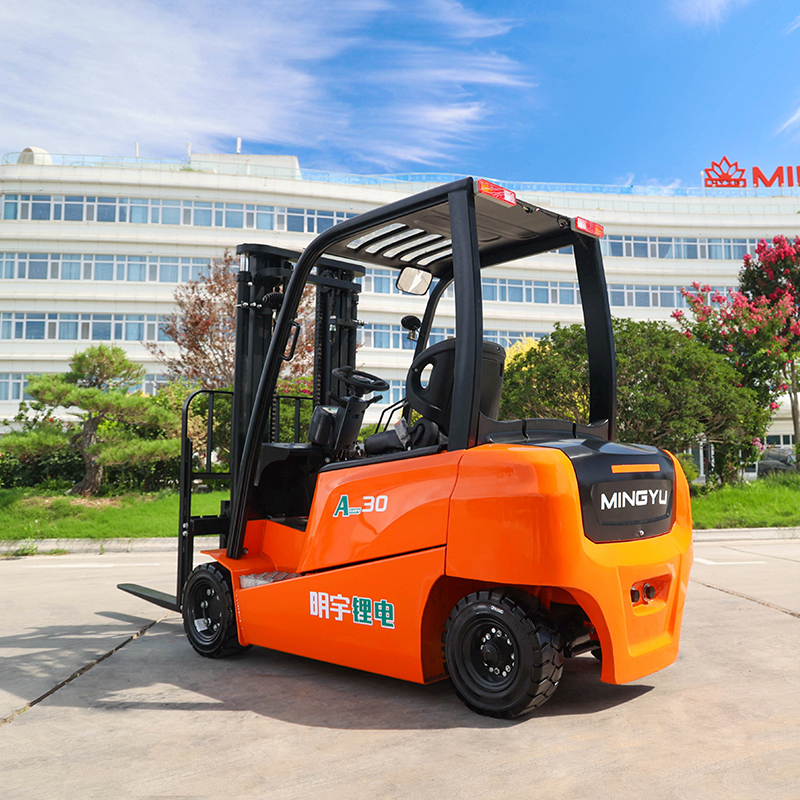

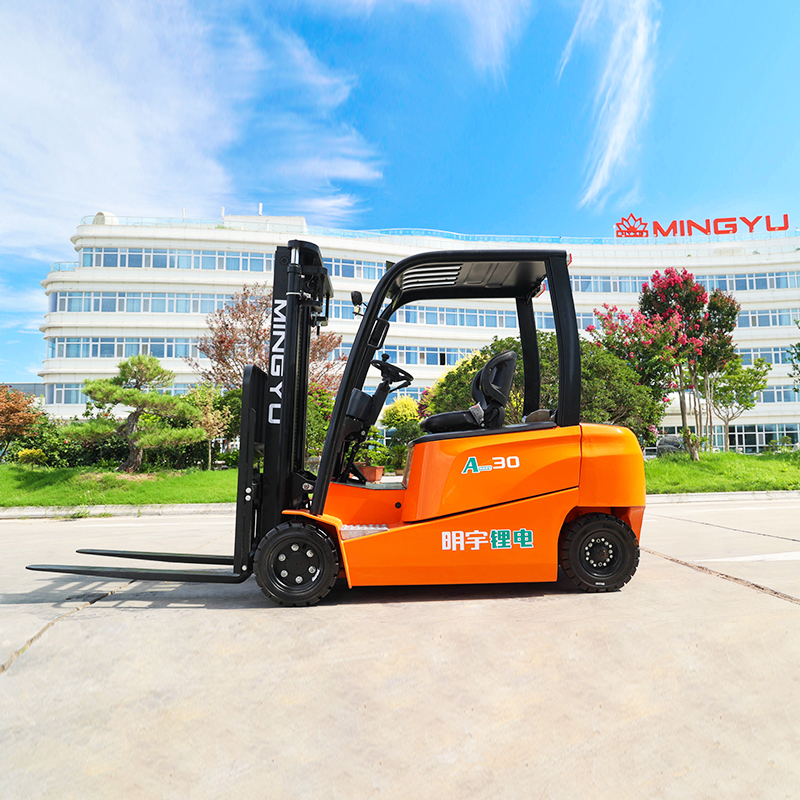

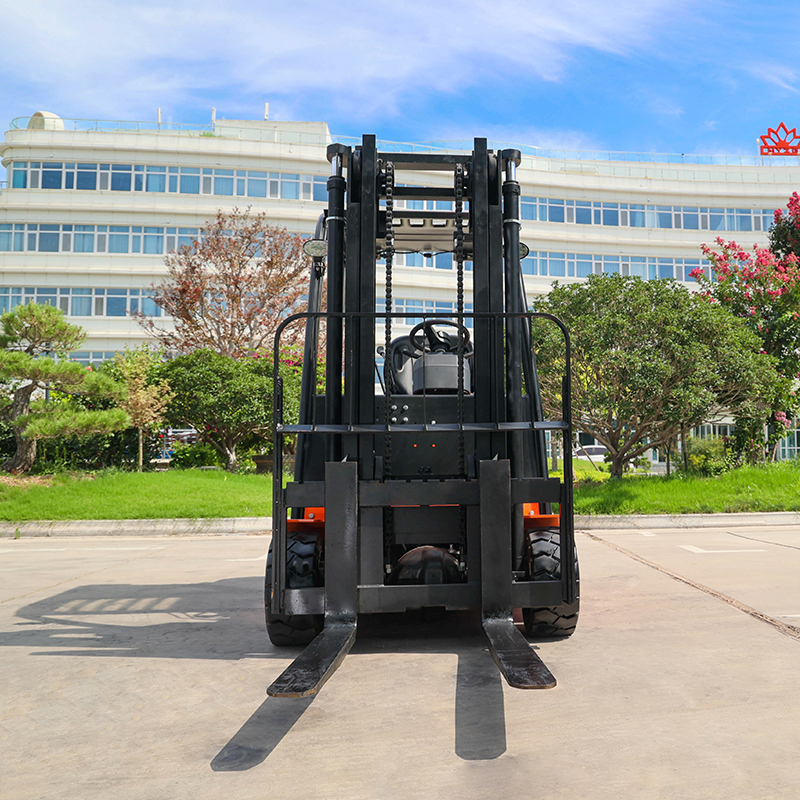

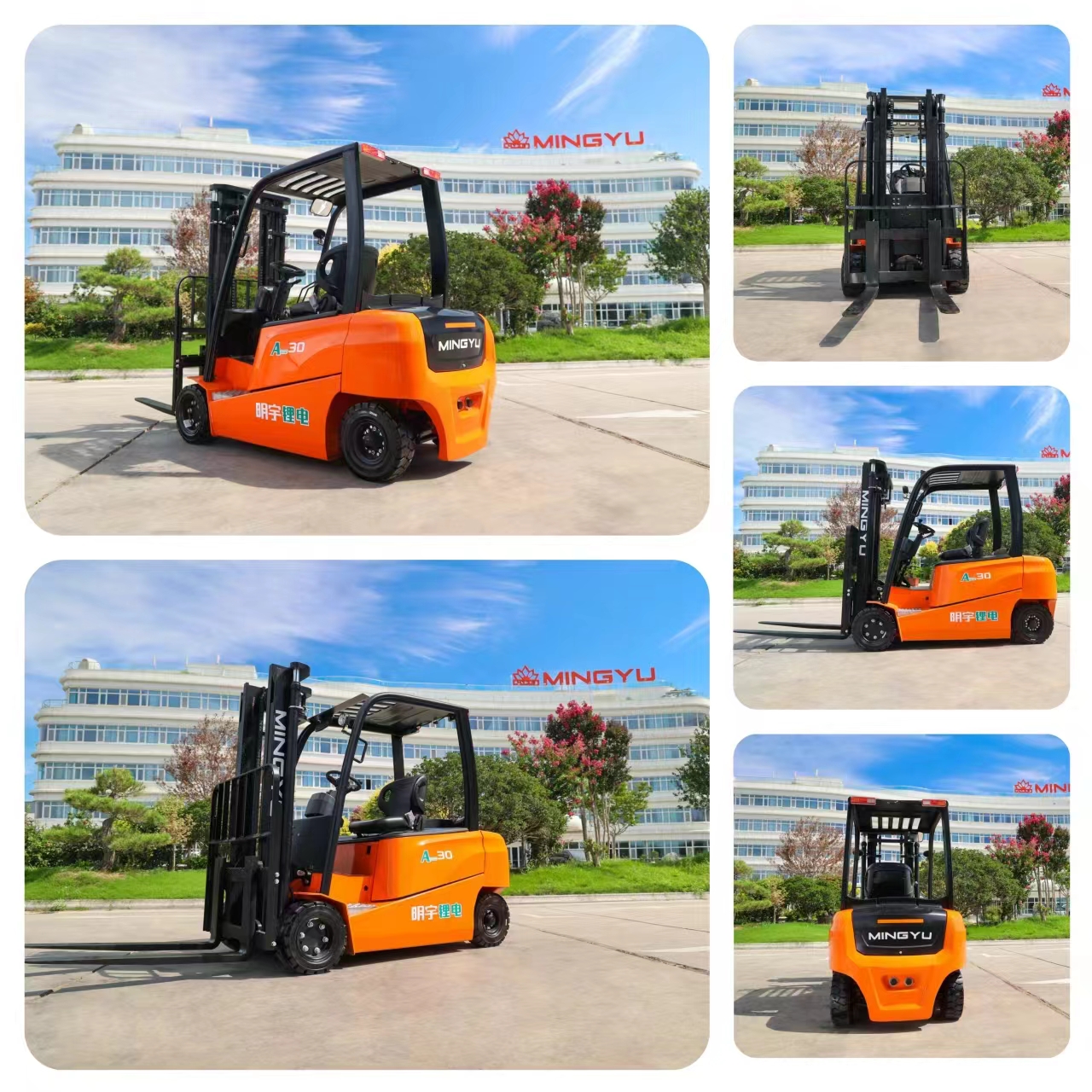

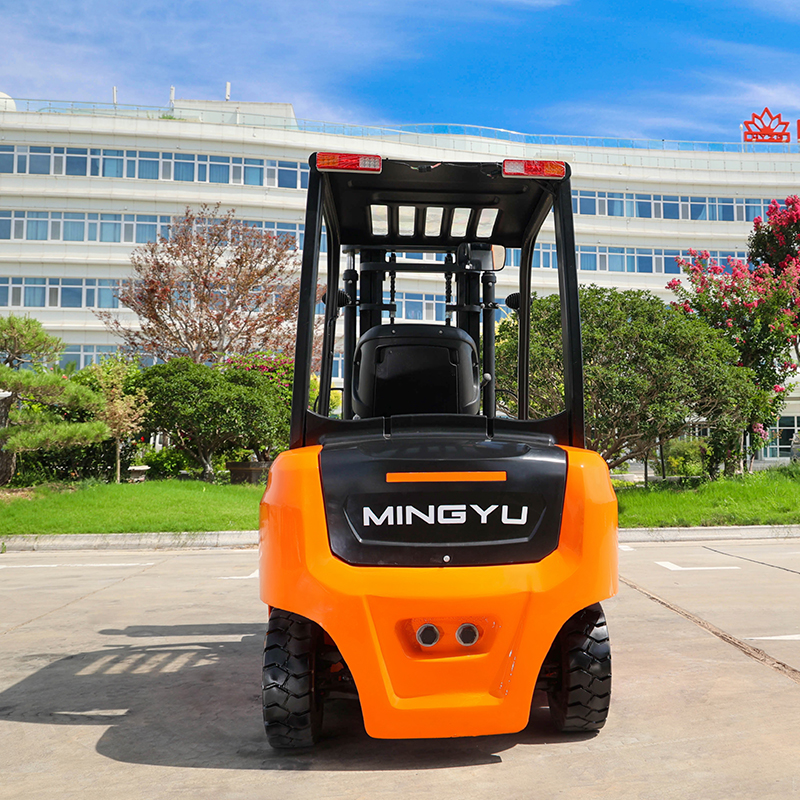

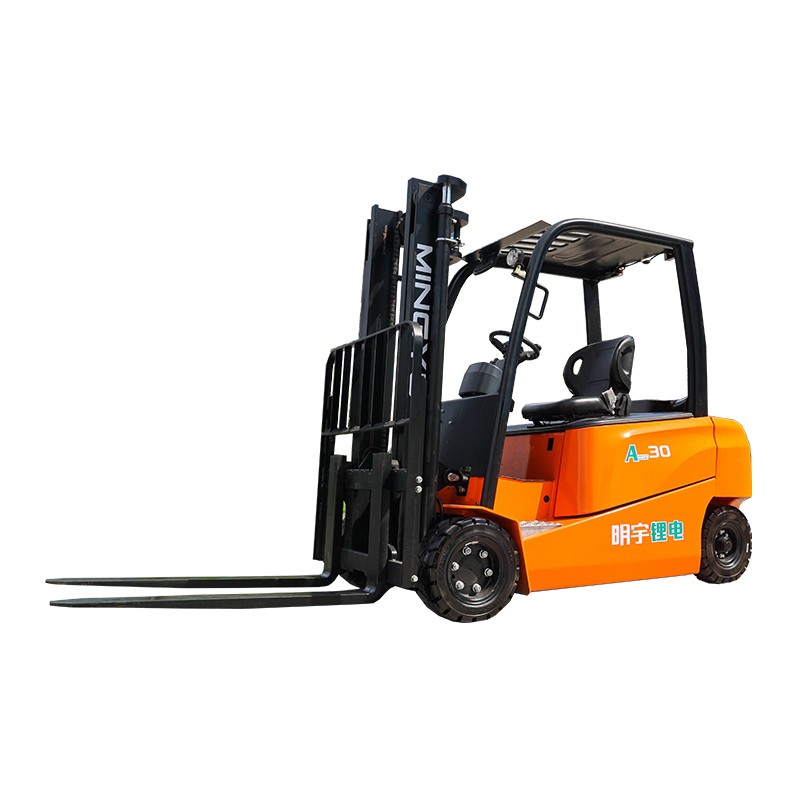

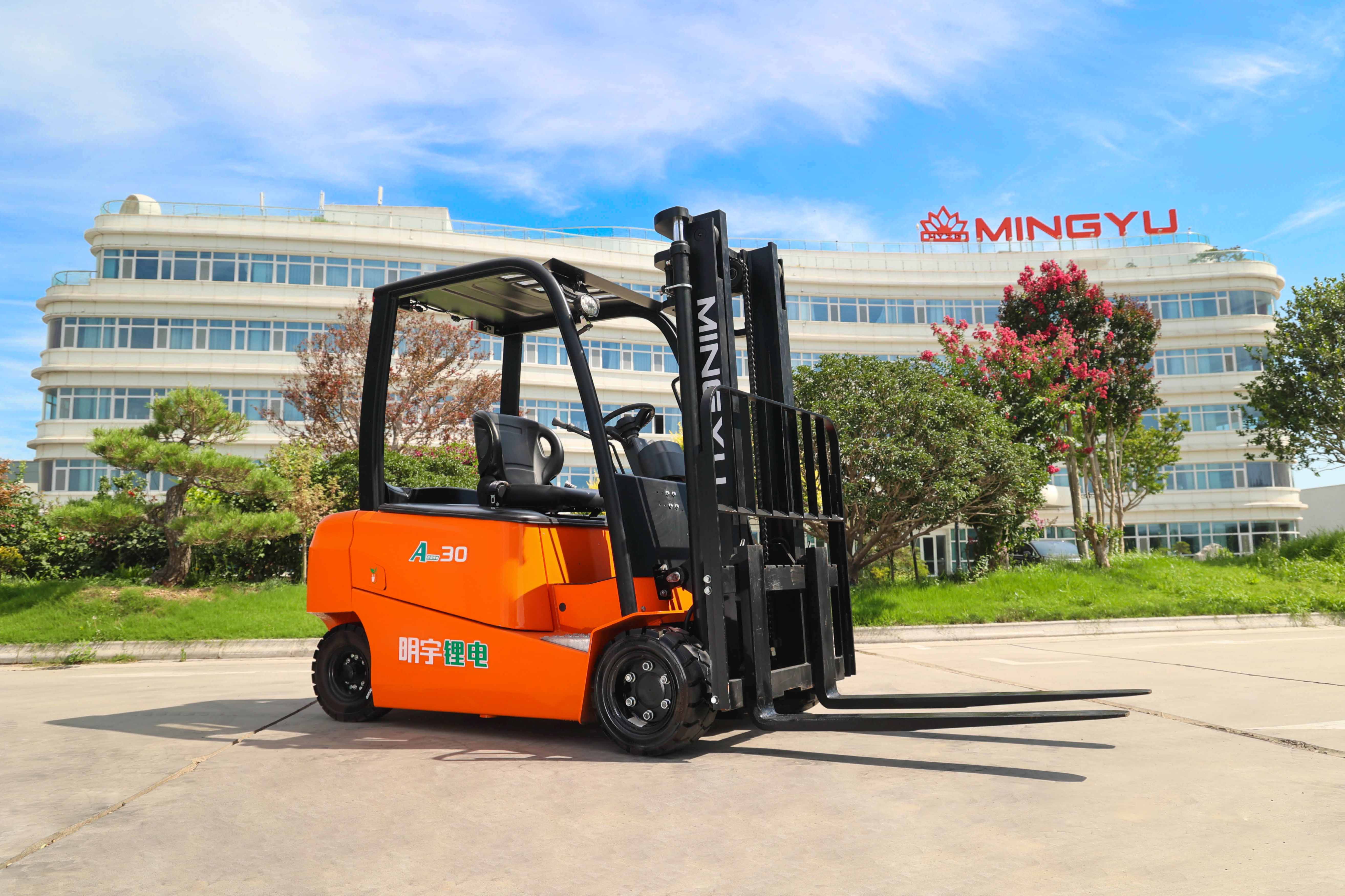

CPD30-A electric Forklift
3,000lbs lifting capacity
The newest generation CPD30 Electric Forklift is designed to move freely throughout its operational environment. The new designed steering wheel\ new brake system and the easy-tooperate levers provide total handling operation.The extra foot space is provided to reduce operator fatigue significantly. The new wide-open, non-slip step makes getting in and out easy and safe.
1. Strong performance, excellent and efficient
Three configurations of S/M/H can be selected at will. M/H configuration models have superior overall performance, comparable to fuel trucks, and significantly improved operating efficiency.
2. Intelligent safety, comprehensive protection
Curve deceleration function: automatic deceleration function in the curve, which can reduce the risk of overturning in the curve;
Steering wheel to start steering: the steering wheel can directly start the steering function, and provide the required amount of fuel according to the speed of the steering wheel;
Color screen instrument: Chinese and English switching, battery display, tire angle and other information at a glance, more functions, more convenient operation;
PES three-speed mode: a variety of speed modes can be freely selected according to the working conditions to ensure operating efficiency
The armrest with horn switch after reversing makes driving safer;
The lithium battery is automatically heated at low temperature and has excellent low temperature adaptability.
3. Human-machine optimization, comfortable driving
Brake fluid position is within easy reach, it is more convenient to check and replenish;
Mast optimization and stamping of the roof protection frame can enhance the field of vision and ensure safety;
The USB power supply design is more intimate.
4. Reliable quality, safe and worry-free
The integrated cast drive axle and reinforced cast steering axle have been proven in the market for a long time, mature and reliable, and the mast is optimized for force design, which improves overall performance and effectively guarantees operational safety.
5. Harsh environment, worry-free operation
IPX4 waterproof: the vehicle is powered on to simulate a short-term 5000L rainstorm test for 15 minutes, and the truck can run continuously without failure
The whole truck lasts 200mm for 10 minutes, and the whole truck has no trouble
The whole truck is operated alternately for 6 hours in the cold storage at -20℃, and parked in the cold storage for 12 hours, the truck is trouble-free and can run continuously
Simulate bumpy road
Tight turning radius suitable for narrow aisle applications.
Adjustable Levers for Easy Battery Access
Dual Front AC Driving Motors，Toyota seat
Panoramic Rearview Mirror
| Model | CPD30A | |
| Power Type | accumulator | |
| rated load lifting capacity | 3000kg | |
| Load centre distance | 500mm | |
| driving style | Sit down | |
| length | with fork | 3455mm |
| without fork | 2340mm | |
| wideth | 1225mm | |
| height | Do not raise the mast height | 2020mm |
| Overhead guard height | 1970mm | |
| Max height at working | 4132mm | |
| Distance from seat surface to top guard frame | 980mm | |
| wheel base | 1700mm | |
| front overhang | 330mm | |
| rear overhang | 375mm | |
| front wheel track | 1043mm | |
| rear wheel track | 975mm | |
| minimum ground clearance | 130mm | |
| Standard lifting height | 3000mm | |
| free lifting height | 45mm | |
| Fork adjustment range | 260-1100mm | |
| minimum turning radius | 2300mm | |
| Minimum right-angle channel width(1100*1100 pallets) | 4058mm | |
| Gantry angle (front/rear) | 6/12° | |
| Maximum lifting speed without load | 400mm/s | |
| Maximum lifting speed with full load | 260mm/s | |
| Maximum operating speed without load | 15Km/h | |
| Maximum operating speed with full load | 14Km/h | |
| Max gradeability with full loading | 15% | |
| Weight unladen | 3400Kg | |
| Number of wheels = driving wheels/steering wheels | 2/2 | |
| Tyre type (front/rear) | Solid tyre/pneumatic tyre | |
| tyre size(front) | 200/50-10 | |
| tyre size(rear) | 18X7-8 | |
| Brake/driving brake | EMBR | |
| parking brake | EMBR | |
| Battery voltage/capacity | 154V/105Ah | |
| drive motor power | 13Kw | |
| Oil pump motor power | 16Kw | |
STANDARD FEATURES
Stability
Advanced parallel layout of drive motor and lower located battery up to chassis bottom provide good stability to the truck.
Comfortable
New designed wide view mast provides better forward view ability.
Advanced
Multi functions big LED dashboard provides running hours, battery power, and self diagnosis functions, and with high accuracy even in bad environment.
Service Ability
CE certificate is available.
According to demands, can be matched with different accessories
Why Choose MINGYU Forklifts?
MINGYU Forklifts offer superior power, precision, and reliability. Built with robust materials and advanced technology, they ensure long-lasting performance and minimal downtime. Ergonomic design guarantees operator comfort, while fuel efficiency reduces operational costs. Choose MINGYU for unparalleled efficiency and safety in your material handling needs.
