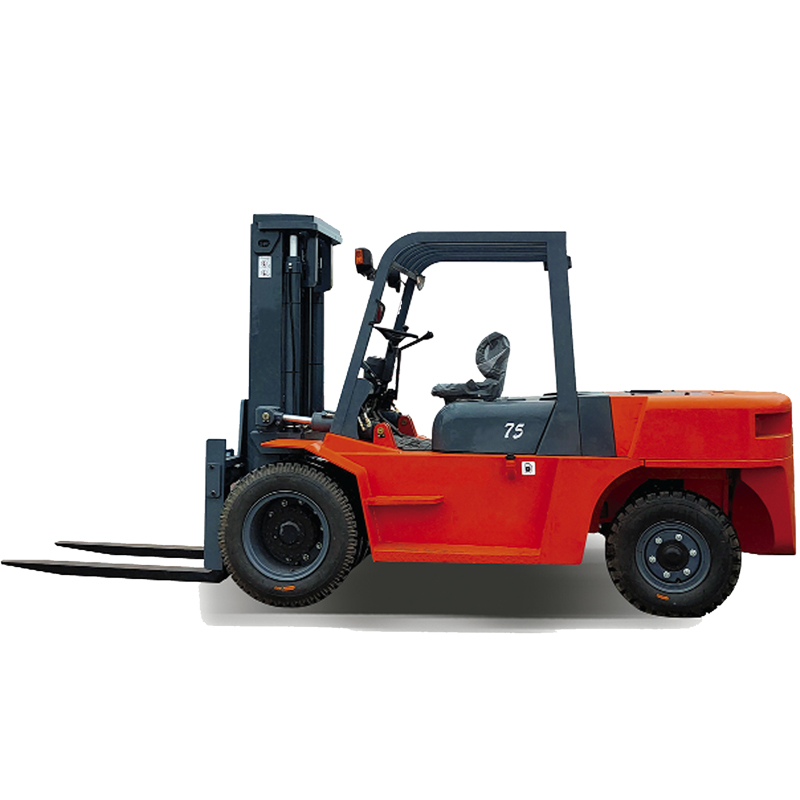

CPC75 diesel forklift

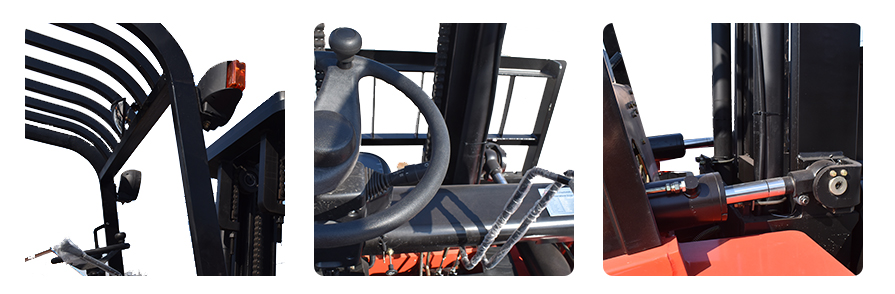

THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
The CPC75 is a novel series of internal combustion counterweight forklifts, which is independently developed by MYZG by learning Japanese Nissan’s technologies and on the basis of the prior products. Through comprehensive optimization of the exterior design, safety, comfort and reliability, the performance of the vehicle has been greatly improved in comparison with the prior products.Adopt technologys that superior to Toyota
●Appearance
With the latest exterior design method used, the vehicle has a smooth vivid profile following the latest exterior design trend.
● Comfortable
Advanced ergonomic technology, an integral engine hood, a steering wheel of a smaller size and an enlarged space for the pedaling foot are used to significantly improve the operation comfort and reduce the operator’s fatigue.
● Safety
The center of gravity of the vehicle moves backward to enable the higher longitudinal stability and high-position operation stability of the vehicle.
● Reliable
The large-capacity aluminum plate-fin heat dissipater has optimized heat dissipation channels. The integrated transmission oil and engine coolant heat dissipater and intercooler provide a good heat dissipation capacity.
THE MAIN PARAMETER
| Fuel type | diesel | overall leghth with fork | 5300mm |
| Rated load capacity | 7500kg | overall leghth without fork | 4080mm |
| Load Center | 600mm | overall width | 1995mm |
| Lifting height | 3000mm | Overall lifting height of mast | 4420mm |
| Free lifting height | 150mm | Mast Lowered Height | 2625mm |
| Fork size | 1220×150×70mm | tyre front | 8.25-20-14PR |
| Mast tilt Angle front and rear | 6/12Deg. | tyre rear | 8.25-15-14PR |
| min turning radius | 3650mm | wheel base | 2280mm |
| ground clearance | 200mm | wheel track | 1470/1500mm |
| Height of roof guard from ground | 2450mm | overall weight | 10200kg |
| front overhang | 590mm | battery | (12/80)×2 V/Ah |
| Max driving speed full load | 29km/h | engine type | Mitsbishi / Isuzu / xichai / quanchai/Mitsbishi / Isuzu / xichai / quanchai/Cummins |
| Max lifting speed full load | 500mm/s | Starting rated power | 85kw |
| Max traction full load | 53KN | transmission | hydraulic |
| Max climbing angle | 30/19(%) | working pressure | 20Mpa |
According to demands, can be matched with different accessories
