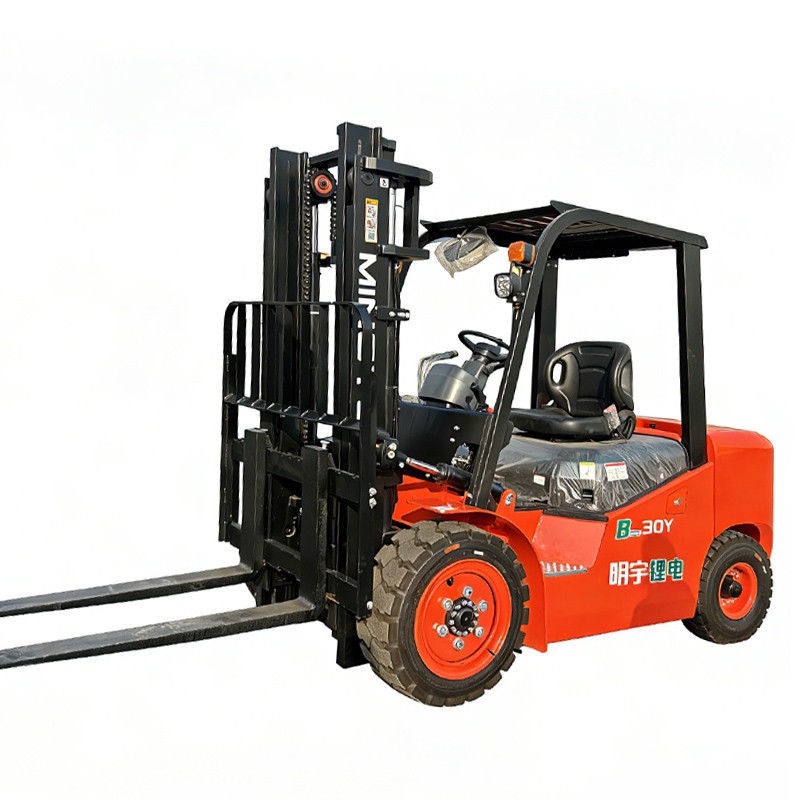

B30Y/B35Y Electric Forklift
MYZG 3-Ton & 3.5-Ton IC-Shaped Lithium Battery Electric Forklift (Model: B30Y / B35Y)
The Perfect Hybrid: Heavy-Duty Internal Combustion (IC) Truck Chassis Combined with Clean 80V/206Ah Lithium-Ion Battery Technology for Ultimate Indoor & Outdoor Performance.
Executive Overview: Best of Both Worlds – Diesel Toughness Meets Lithium Clean Energy
The MYZG B30Y / B35Y Series 3-Ton and 3.5-Ton IC-Shaped Lithium Electric Forklift is a revolutionary heavy-duty material handling solution manufactured by Shandong Mingyu Heavy Industry Co., Ltd. (MYZG). Designed to solve the traditional tradeoff between diesel power and electric eco-friendliness, this crossover forklift adopts a robust, heavy-duty internal combustion engine forklift chassis and refits it with an advanced high-voltage lithium battery powertrain.
Featuring a rated load capacity of 3000 kg (6,600 lbs) for B30Y and 3500 kg (7,700 lbs) for B35Y at a 500 mm load center, this model boasts a large 145 mm ground clearance, heavy pneumatic tires, and a powerful 80V / 206Ah lithium battery pack. Driven by a high-output 16kW traction motor and a massive 22.6kW hydraulic oil pump motor, the B30Y/B35Y delivers an impressive top travel speed of 15 km/h (both loaded and unladen) and a 15% gradeability—making it the ideal workhorse for gravel yards, construction sites, and large indoor warehouses alike.
MYZG B30Y / B35Y Factory Technical Specifications
Review the comprehensive mechanical, electrical, and performance parameter dataset for the MYZG 3T-3.5T IC-Shaped Lithium Electric Forklift:
| Technical Parameter | Factory Specification Detail |
|---|---|
| Model Identification | B30Y (3 Ton) / B35Y (3.5 Ton) |
| Power Type | Li-ion (Lithium-ion Battery Pack) |
| Rated Load Lifting Capacity | 3000 kg (B30Y) / 3500 kg (B35Y) |
| Load Centre Distance | 500 mm |
| Driving Style / Operator Position | Sit Down Style |
| Overall Length (With Fork / Without Fork) | 4040 mm / 2820 mm |
| Overall Chassis Width | 1225 mm |
| Mast Height (Lowered / Overhead Guard) | 2140 mm / 2110 mm |
| Max. Height at Working (Full Mast Extension) | 4262 mm |
| Standard Lifting Height / Free Lift Height | 3000 mm / 65 mm |
| Minimum Turning Radius | 2625 mm |
| Min. Right-Angle Channel Width (1100x1100 Pallets) | 4366 mm |
| Gantry Angle (Front / Rear Tilt) | 6° / 12° |
| Max. Lifting Speed (Without Load / Full Load) | 380 mm/s / 300 mm/s |
| Max. Operating Travel Speed (Unladen / Full Load) | 15 Km/h / 15 Km/h |
| Max. Gradeability (Full Loading) | 15% |
| Unladen Machine Net Weight | 4200 kg (B30Y) / 4400 kg (B35Y) |
| Wheel Layout (Driving Wheels / Steering Wheels) | 2 / 2 |
| Tyre Type (Front & Rear) | Heavy-Duty Pneumatic Tyres |
| Tyre Size (Front / Rear) | 28x9-15 / 6.50-10 |
| Braking Systems (Driving Brake / Parking Brake) | Foot Brake / Hand Brake |
| Battery Voltage & Capacity System | 80V / 206Ah Lithium Battery |
| Battery Charger Specification | 220V / 35A Fast Charger |
| Drive Traction Motor Power Output | 16 kW |
| Oil Pump Hydraulic Motor Power Output | 22.6 kW |
| Wheelbase / Minimum Ground Clearance | 1810 mm / 145 mm |
| Front Overhang / Rear Overhang | 441 mm / 650 mm |
| Front Wheel Track / Rear Wheel Track | 1000 mm / 980 mm |
Engineering Breakdown & Key Advantages
1. Heavy-Duty IC Forklift Chassis & 145mm Ground Clearance
Unlike standard electric forklifts built solely for flat indoor epoxy floors, the B30Y/B35Y uses a heavy structural steel frame borrowed from diesel forklift designs. Featuring a high 145 mm minimum ground clearance, an 1810 mm wheelbase, and large pneumatic tires (28x9-15 front, 6.50-10 rear), it effortlessly traverses unpaved gravel roads, rain-soaked outdoor yards, and uneven threshold ramps without bottoming out.
2. 80V/206Ah Lithium Power & Heavy 22.6kW Hydraulic Pump
Equipped with a high-capacity 80V / 206Ah lithium battery pack, a powerful 16kW drive motor, and an extraordinary 22.6kW hydraulic pump motor, the B30Y/B35Y matches diesel breakout forces. It achieves lifting speeds of 380 mm/s (unladen) and 300 mm/s (full load). The included 220V/35A charger enables fast opportunity charging during lunch breaks, keeping the truck active across multiple operational shifts.
3. High Travel Speed (15 km/h) & 15% Gradeability
Speed equals throughput. The B30Y/B35Y maintains a top speed of 15 km/h both unladen and under full load, outperforming traditional electric trucks across large factory logistics grounds. Coupled with a 15% max gradeability, this machine easily carries 3.5-ton loads up steep outdoor shipping docks and warehouse ramps.
4. Spacious Ergonomic Cabin & Wide Mast Tilt (6°/12°)
The sit-down operator cabin retains the roomy layout of IC trucks, featuring intuitive foot pedal layouts, heavy-duty hand lever controls, and a protective overhead guard (2110 mm high). The high-strength mast tilts 6° forward and 12° backward, providing maximum angle flexibility to stabilize heavy timber, steel plates, or stacked pallets during transit.
Ideal Work Scenarios & Industry Applications
The rugged IC body combined with zero-emission lithium electric drive allows the B30Y/B35Y to transition seamlessly between outdoor yards and indoor facilities:
Building Materials & Lumber Yards
Moving heavy timber packs, stone slabs, bricks, and concrete pipes across unpaved outdoor storage lots.
Manufacturing & Steel Plants
Handling heavy steel coils, castings, and machinery parts both inside production workshops and in outside yards.
Logistics & Port Cross-Docking
Unloading shipping containers, loading flatbed trailers, and moving heavy palleted cargo continuously across multi-shift operations.
Frequently Asked Questions (FAQ)
Q: What is the primary advantage of an "IC-Shaped" Lithium Forklift?
A: It combines the high ground clearance (145mm), rugged pneumatic tires, and heavy structural durability of diesel forklifts with the zero emissions, low noise, and zero battery maintenance of lithium electric technology.
Q: What are the charger and battery specifications for the B30Y / B35Y?
A: The forklift is equipped with an 80V / 206Ah lithium battery pack and includes a matching 220V / 35A fast charger designed for rapid opportunity charging.
Q: Can this forklift operate outdoors during rainy or muddy conditions?
A: Yes, thanks to its high ground clearance, heavy-duty pneumatic tires, and sealed lithium electronic controller enclosures, it is designed to handle outdoor mud, rain, and uneven gravel surfaces smoothly.
Ready to Upgrade Your Fleet to Rugged IC-Style Lithium Electric Power?

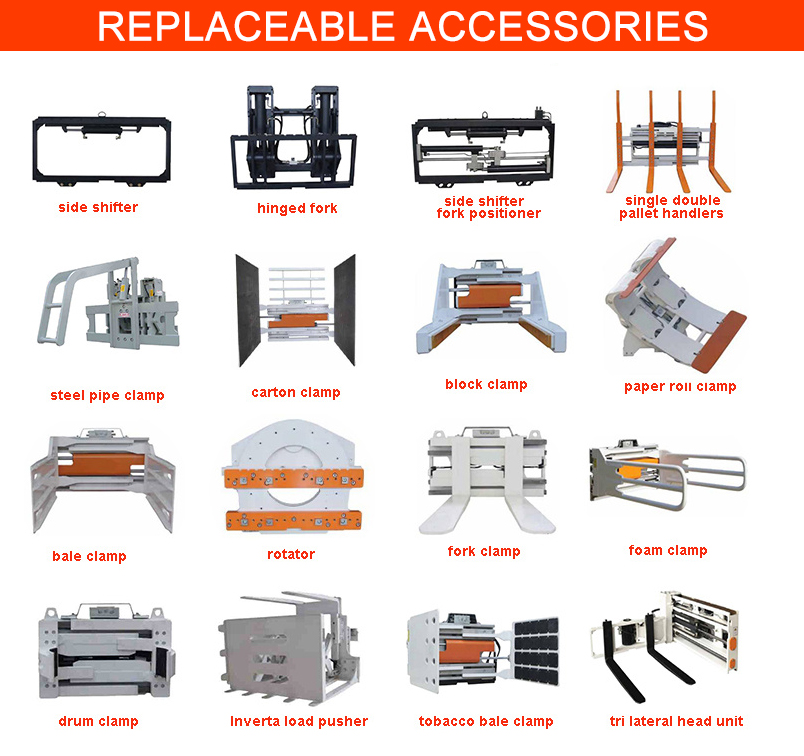

Contact MYZG sales engineers today for factory-direct wholesale pricing, custom attachment options (side shifters, rotators, paper clamps), and international container shipping quotes.
