1500 1m³ Concrete Mixer

1500 1m³ Concrete Mixer
  • 1500 1m³ Concrete Mixer

Short Description:

Automatic feeding self-feeding concrete mixer truck China concrete mixer ...


  • Operating Weight: 4500kg:
  • Bucket Capacity: 0.35m³:
  • Mixing Capacity:≥ 0.9m³:
  • Dimensions: 4750*2200*2850mm:

Product Details

Product Tags

Product Feature

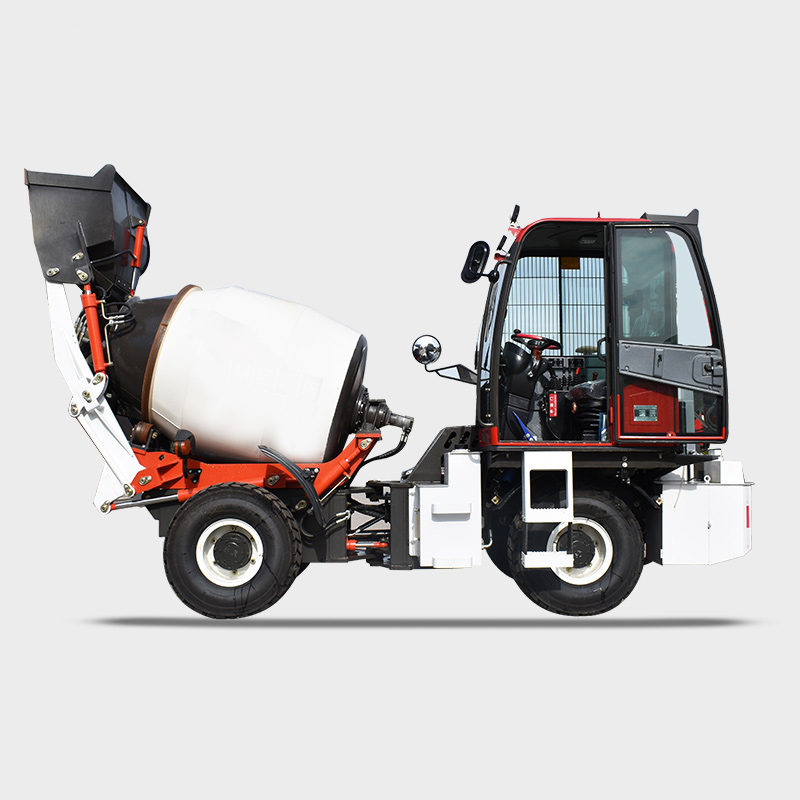

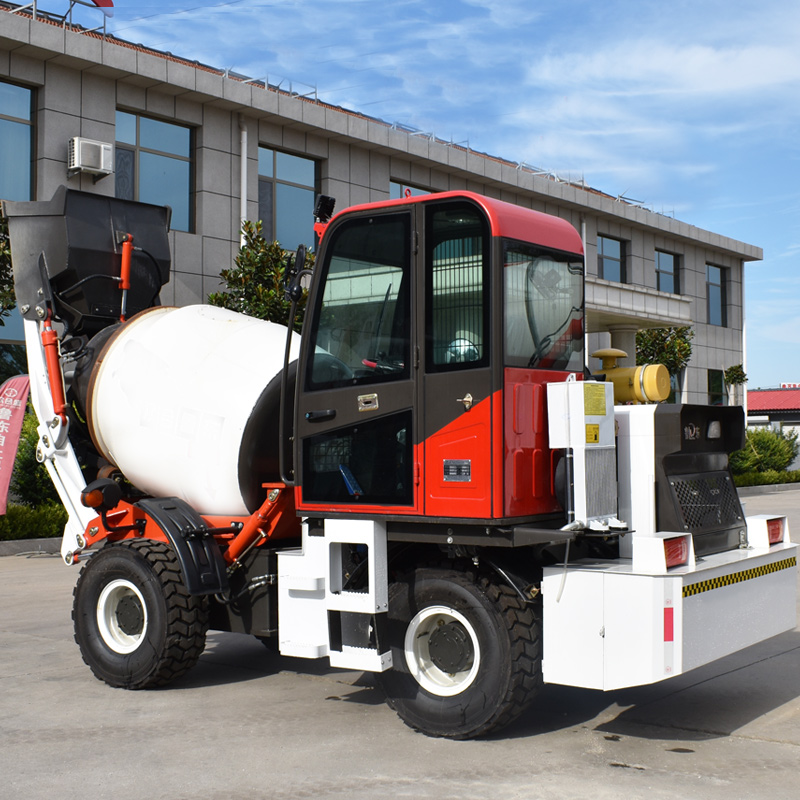

1500 self-feeding mixer truck

The hydraulic system adopts double oil tank and double radiator, and the 4-way oil pressure system independently radiates heat to ensure that the oil temperature will not be too high, and can work continuously for 24 hours without high temperature to ensure the output. The big cube adopts variable pump, and the tank stirring controllable speed to provide guarantee for long-distance transportation.





Parameter


Machine size 4750*2200*2850 mm
Wheelbase 2180mm
Total weight 4500kg
Engine YUCHAI 490 supercharged
Power 55kw
Gearbox 265 INTEGRAL
Drive axle 1.8T wheel side reduction axle
Tires 20.5-16
Bucket capacity 0. 35 m³
Mixing capacity ≥ 0.9 m³
Rotating speed ≥15laps/minute
Reducer Made in china
