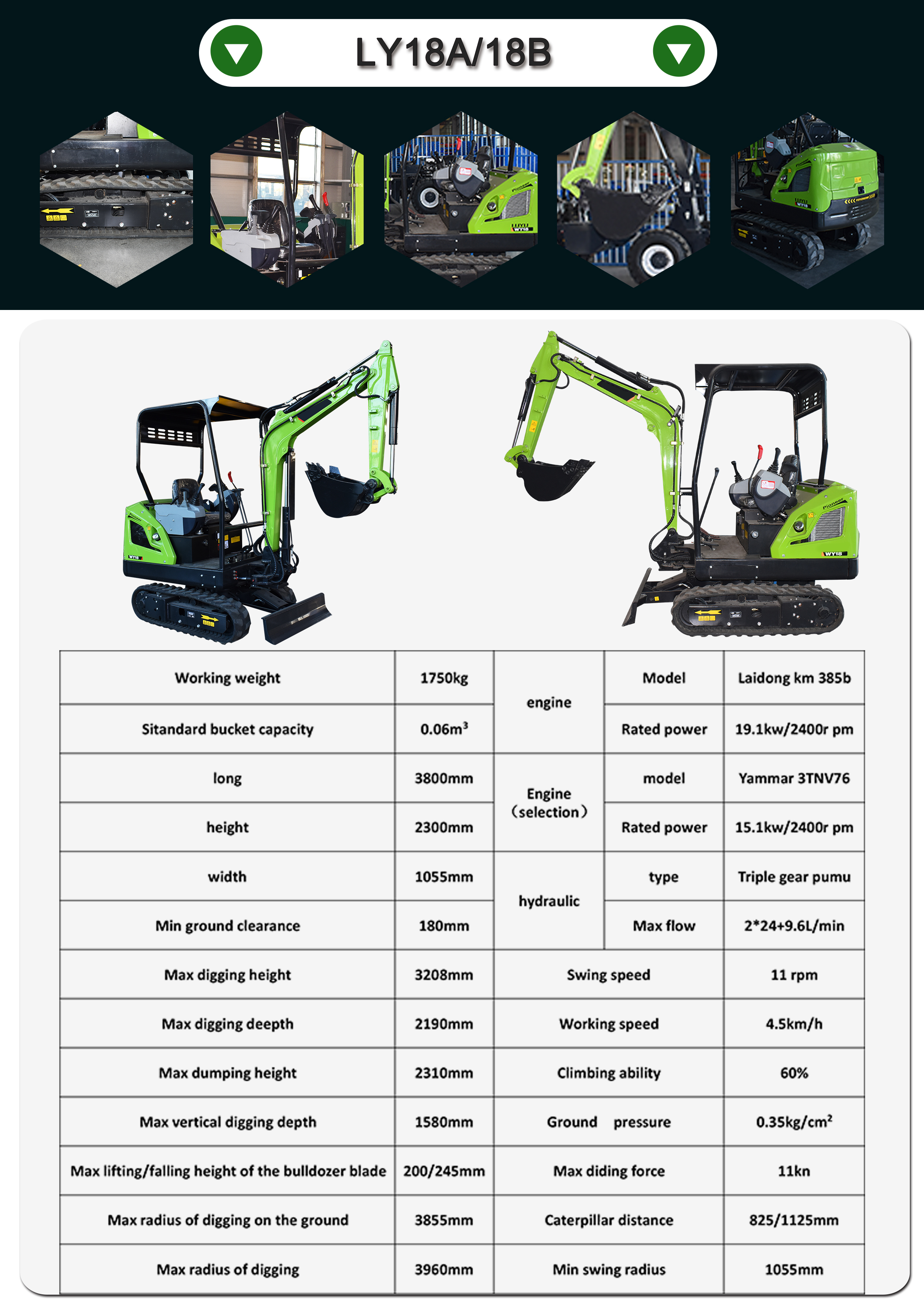

18A/18B экскаватор
|
Working weight |
1750kg |
|
Sitandard bucket capacity |
0.06m3 |
|
long |
3800mm |
|
height |
2300mm |
|
width |
1055mm |
|
Min ground clearance |
180mm |
|
Max digging height |
3208mm |
|
Max digging deepth |
2190mm |
|
Max dumping height |
2310mm |
|
Max vertical digging depth |
1580mm |
|
Max lifting/falling height of the bulldozer blade |
200/245mm |
|
Max radius of digging on the ground |
3855mm |
|
Max radius of digging |
3960mm |
|
engine |
Model |
Laidong km 385b |
|
|
Rated power |
19.1kw/2400r pm |
|
Engine （selection） |
model |
Yammar 3TNV76 |
|
|
Rated power |
15.1kw/2400r pm |
|
hydraulic |
type |
Triple gear pumu |
|
|
Max flow |
2*24+9.6L/min |
|
Swing speed |
11 rpm |
|
|
Working speed |
4.5km/h |
|
|
Climbing ability |
60% |
|
|
Ground pressure |
0.35kg/cm2 |
|
|
Max diding force |
11kn |
|
|
Caterpillar distance |
825/1125mm |
|
|
Min swing radius |
1055mm |
|
