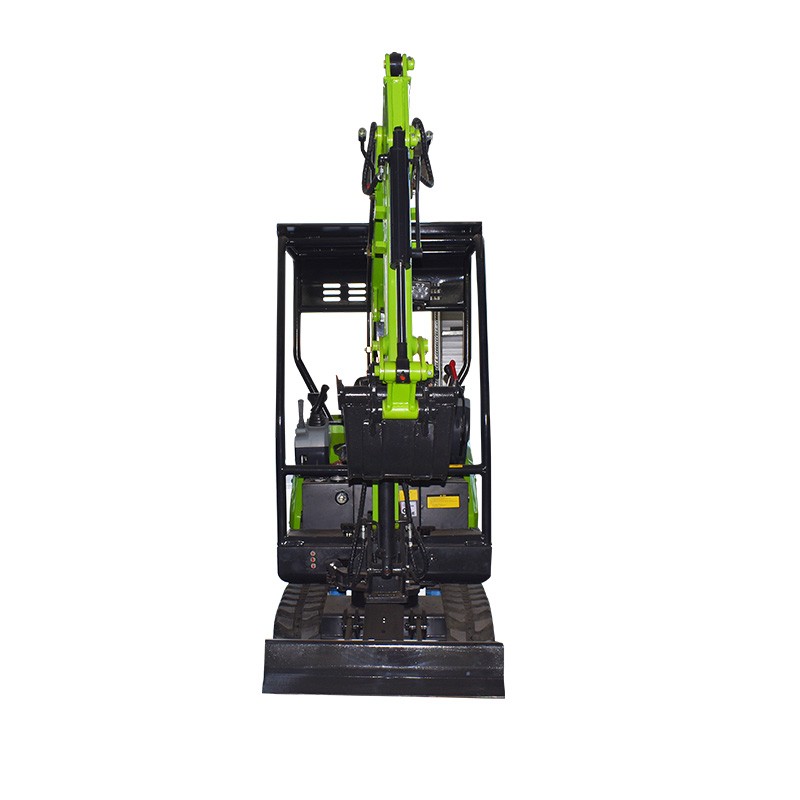

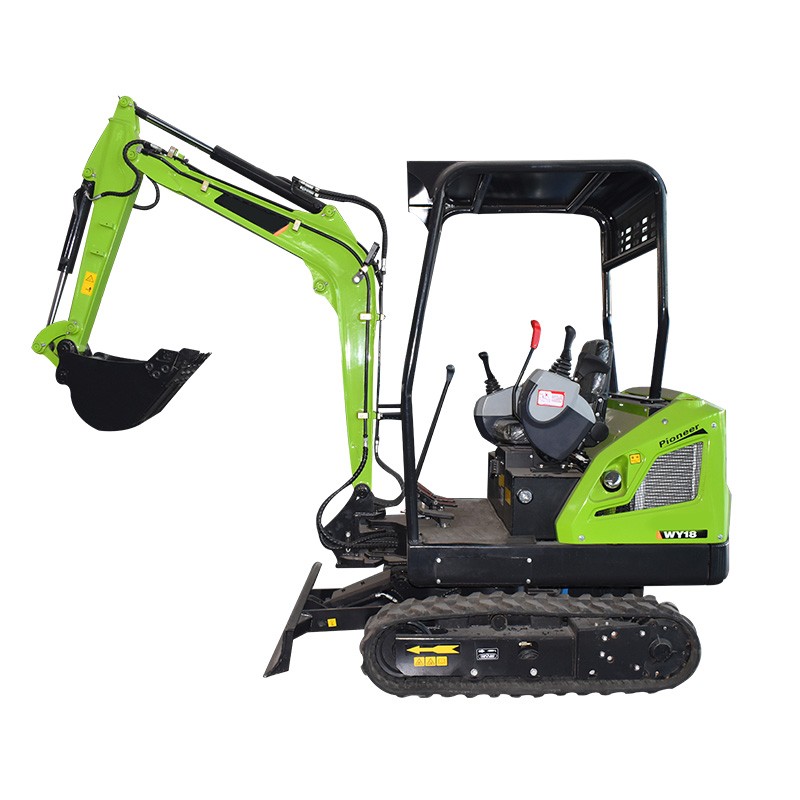

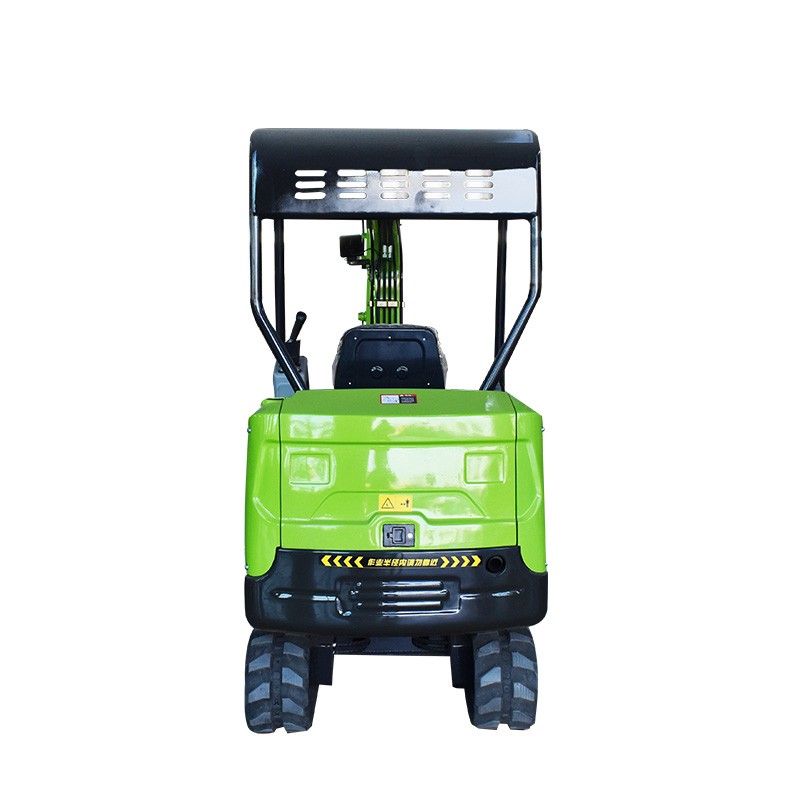

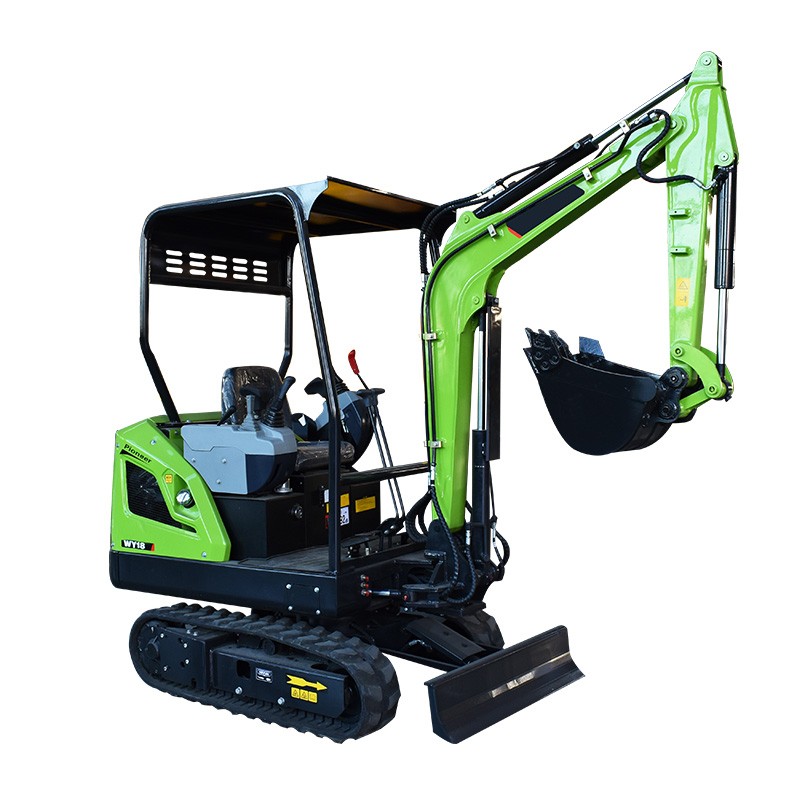

LY18A/18B Mini Excavator
Product Feature
The 18A/18B’s compact stature, combined with a retractable undercarriage, allows operators to easily pass through narrow entryways. 51-inch outside-tread-to-outside tread measurement retracts to just 39 inches when needed and then expands back out for balance and stabilization during operation.
1. With 120° deflection boom, 30° left and 90° right.
2. The competitive price that makes you scream!
3. The appearance is designed by the Italian designer.
4. Increase air outlet, improve the heat dissipation capacity.
5. Optional extension track.
6. The actual weight can be 1.75 Ton.
7. Using S355 steel material which is good steel plate strength.
Parameter
|
Working weight |
1750kg |
|
Sitandard bucket capacity |
0.06m3 |
|
long |
3800mm |
|
height |
2300mm |
|
width |
1055mm |
|
Min ground clearance |
180mm |
|
Max digging height |
3208mm |
|
Max digging deepth |
2190mm |
|
Max dumping height |
2310mm |
|
Max vertical digging depth |
1580mm |
|
Max lifting/falling height of the bulldozer blade |
200/245mm |
|
Max radius of digging on the ground |
3855mm |
|
Max radius of digging |
3960mm |
|
engine |
Model |
Laidong km 385b |
|
|
Rated power |
19.1kw/2400r pm |
|
Engine （selection） |
model |
Yammar 3TNV76 |
|
|
Rated power |
15.1kw/2400r pm |
|
hydraulic |
type |
Triple gear pumu |
|
|
Max flow |
2*24+9.6L/min |
|
Swing speed |
11 rpm |
|
|
Working speed |
4.5km/h |
|
|
Climbing ability |
60% |
|
|
Ground pressure |
0.35kg/cm2 |
|
|
Max diding force |
11kn |
|
|
Caterpillar distance |
825/1125mm |
|
|
Min swing radius |
1055mm |
|
Detail
Ultimate Comfort
The new 18A/18B Excavator provides an operator platform geared to get more work done with creature comforts that make those 12 hour days a breeze. Ergonomic controls and excellent all-around visibility, the platform enables full control of the operator station.
Ease Of Use
When it’s time to perform the standard daily maintenance checks, the new 18A/18B Excavator makes access to critical areas easy on the operator.
Short Tailswing
The MYZG’s design is built for operating in those hard to maneuver locales like congested roadways, near commercial buildings and residences and anywhere obstacles can impede work.
