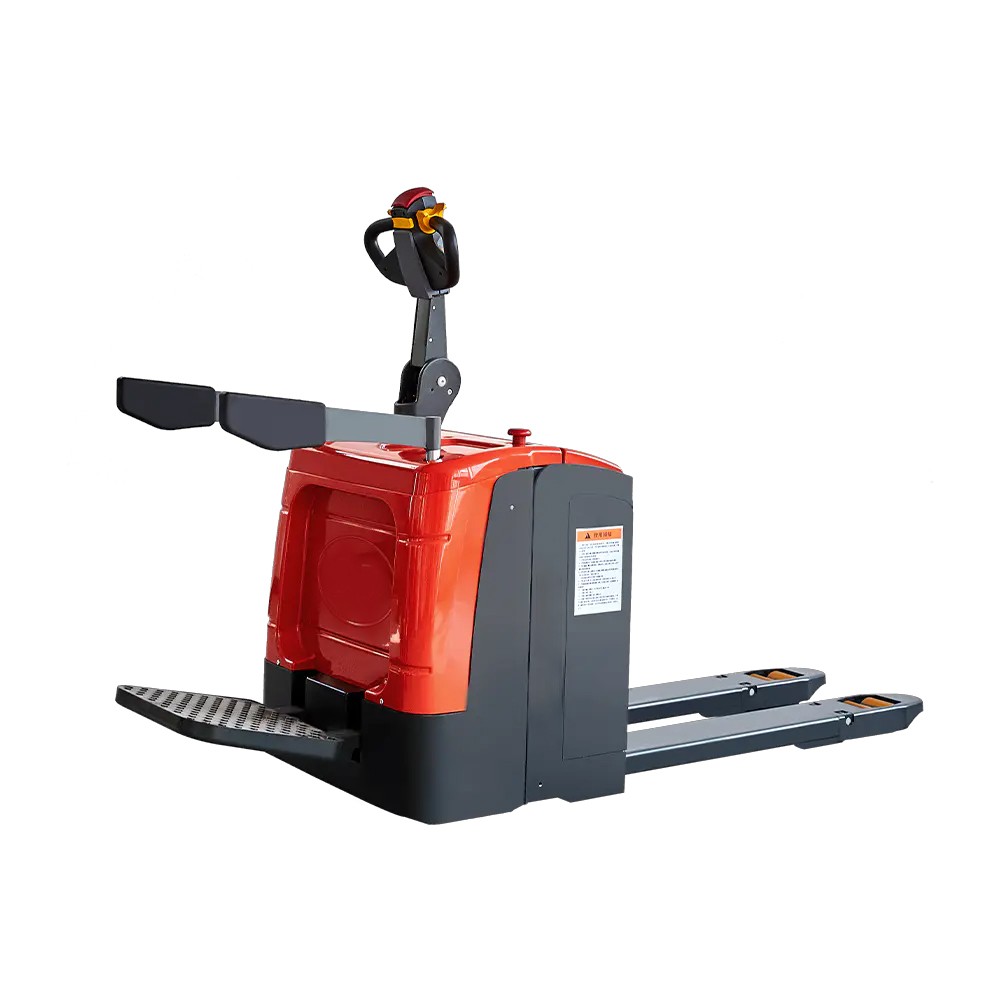

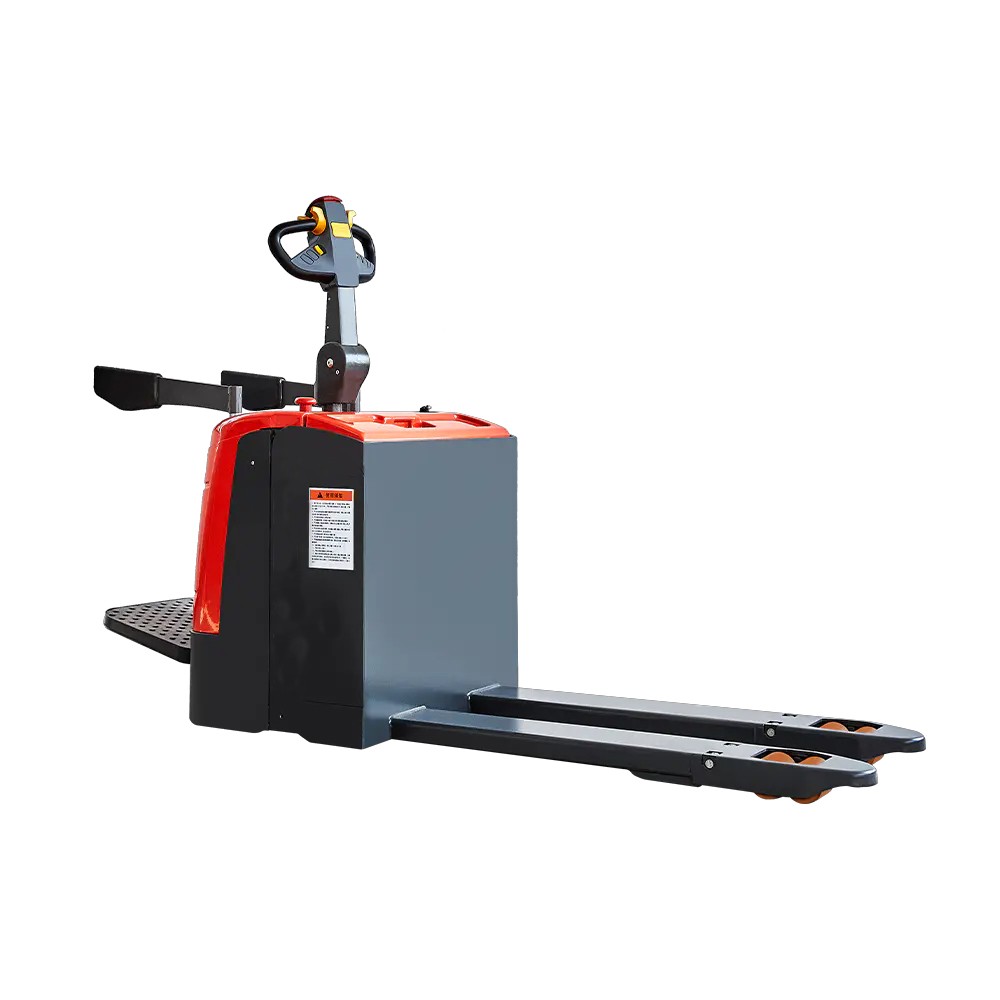

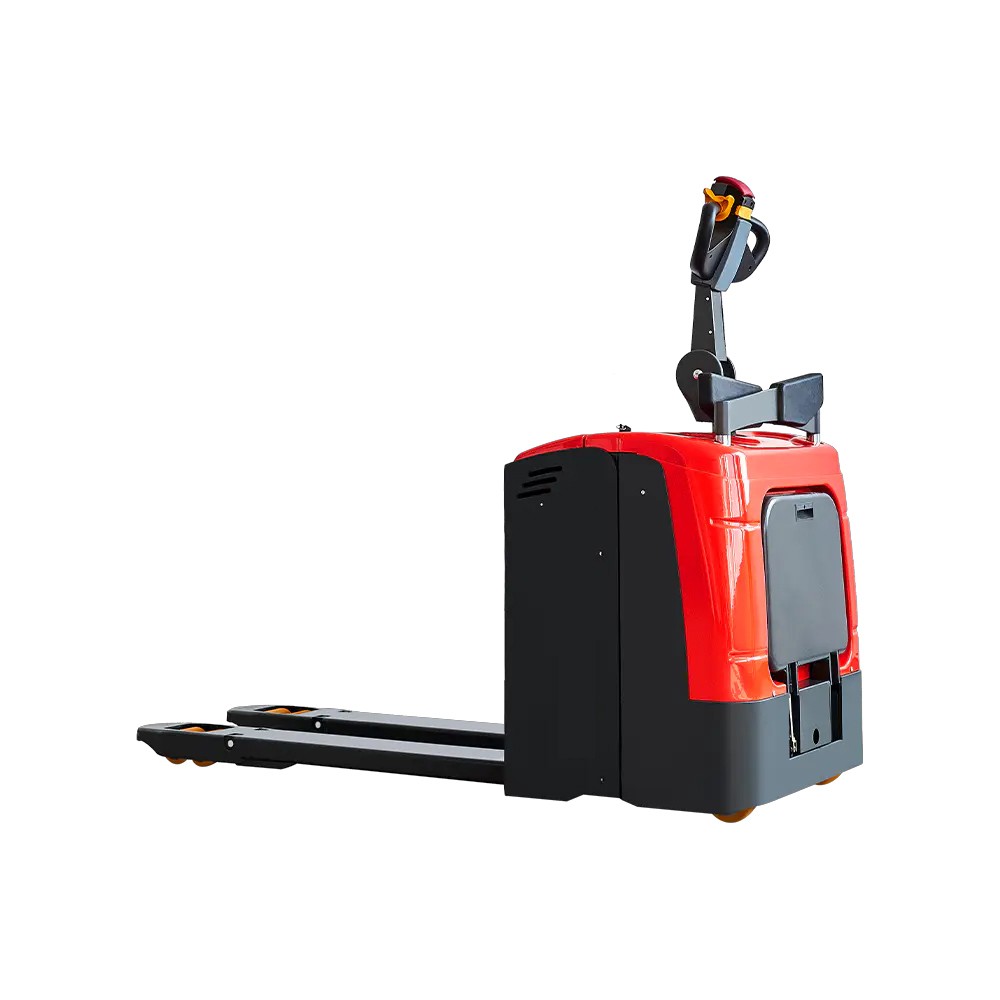

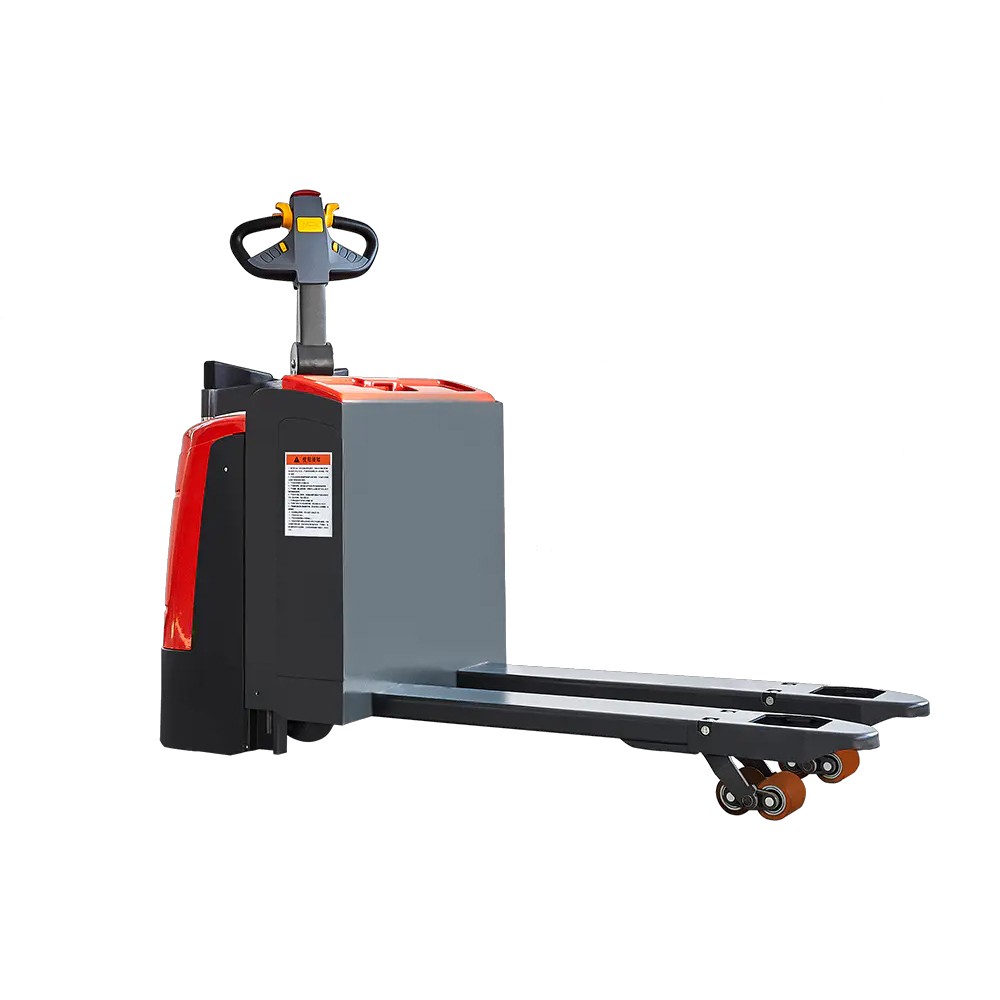

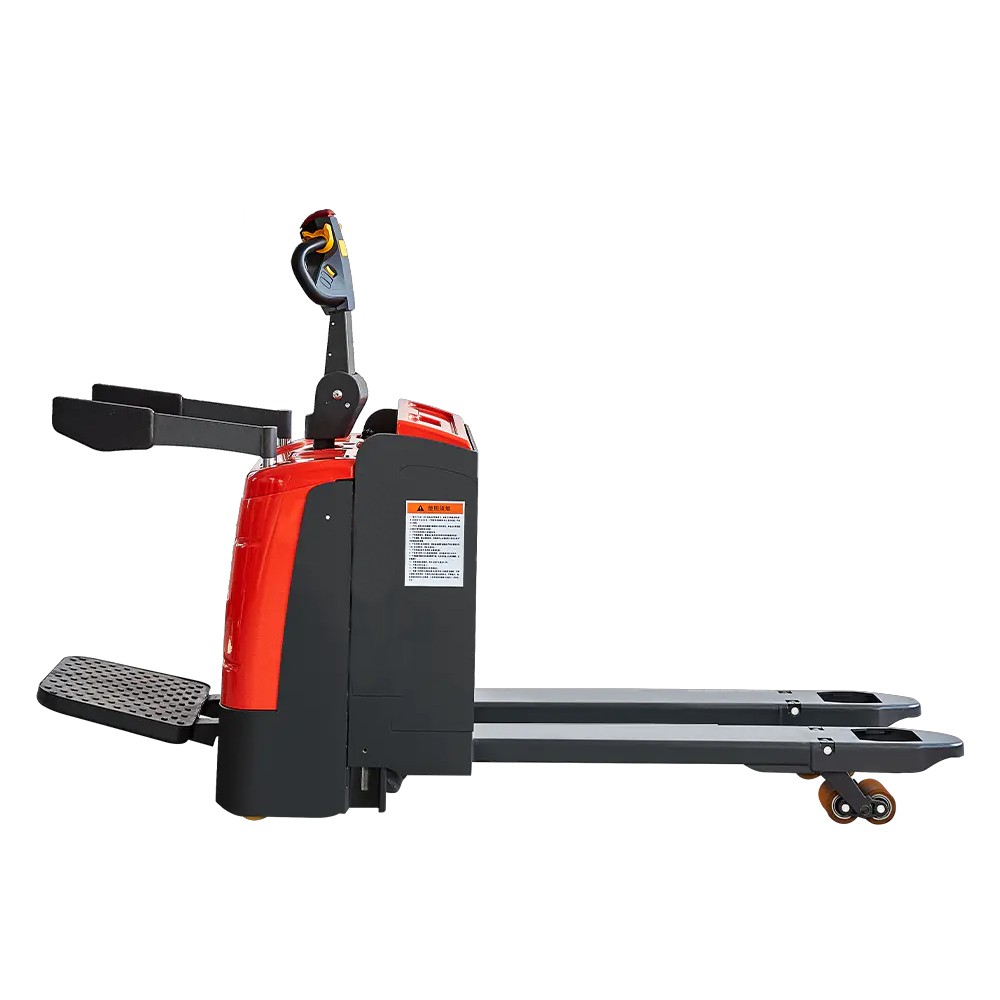

Mingyu CBD--Stand-on electric pallet truck
MYCBD--STAND-ON ELECTRIC PALLET TRUCK
This stand-on electric pallet truck has a super large tonnage load capacity and is equipped with a foldable stand-on pedal and an electric power steering system. It provides smooth operation and an excellent driving experience, and is highly efficient.
THE MAIN PARAMETER
Product features :
Company Introduction
| Model | CBD20/25/30 |
| Maximum load capacity | 2000/2500/3000kg |
| load center | 600mm |
| Maximum lifting height | 205mm |
| Travel speed without load/with load | 5/4.5km/h |
| Lifting speed without load /with load | 24mm/s |
| Lowered speed without load /with load | 30mm/s |
| Ascend slope ability without load /with load | 5/16% |
| Weight (without battery) | 720kg |
| Overall length/width of frame(without platform) | 1820*775/1942*850mm |
| Wheelbase | 1350/1472mm |
| Fork size(length *widthw thiclness) | 1220*170*55mm |
| Fcrk outside width | 550/685mm |
| Min franf height | 30mm |
| Fork lowered height | 85mm |
| Minimum turning radius | 2070/2164mm |
| Minimum intersecting aisie | 2815/2708mm |
| Front wheel | 80*98mm |
| Drive wheel | 230*75mm |
| Caster wheel | 115*55mm |
| Drive motor Rated output/AC motor | 1.5 |
| Hoist motor Rated output/DC motor | 1.5kw |
| Volt ag/Capacity | 24/210V/Ah |
| Weight | 195kg |
About us
MYZG has 12 modern production workshops, with an annual production capacity of 80,000 units per workshop,more than 200 large and medium-sized advanced level equipment.We have advanced scientific research test facilities, intelligent inspection system.Automated and intelligent production, in order to build an industry digital factory.The whole production process is controlled by ERP system,MYZG machines are of excellent quality because we have very strict quality supervision and control.
MYZG machines are exported all over the world，about more than 130 countries.We use brand engine, the matching parts of the machine are easy to get
MYZG have perfect after-sales service，and provide one year warranty .Our price is more competitive and the good service well received by customers.
Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
