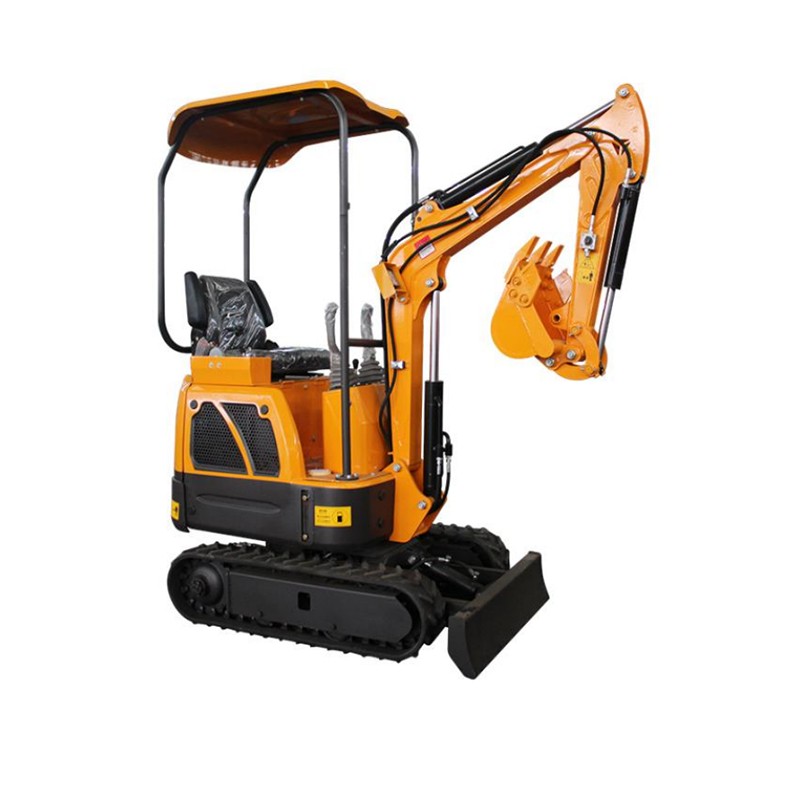

MY-12 mini excavator
Product Feature
MYZG Compact excavators are engineered to bring your performance andproductivity up to the next level.They have the most advanced features. Theefficient working capabilities make challenging work easier.MY-12 elevates yourability to achieve optimal productivity even under restrictive working conditionsMoreover, everyi ton excavator we produce is matched with professionalaccessories for enhanced performance.
MYZG 1 ton mini excavator is the perfect solution for home use. Combininglightweight and compact size to navigate delicate ground without causingdamage. MY-10 is equipped with a Koop engine and Kubota/Yanmar as your alternativeoption. internationally branded engine ensures long-lasting power and service life.
I ton excavator is easy to transport on a trailer. Make it your must-have equipmentfor smaller-sized construction and demolition work!
*MY-10 meets the EPA and Euro Vemission standards
Parameter
SPECIFICATION
Unit
Operating Weight
1080 kg
bucket capacity
0.02m³
Working device form
backhoe
engine
Model
Yanmar 3TNV70 / 3TNV74F
Rated power
10.3kw /11.2 kw
Model
Kubota D722-EF11
Rated power
10.2kw/2500rpm
Displacement
0.854L
Maximum torque
51.9N.m/1600 r/min
speed
Max.travel speed
1.5km/h
swing speed
11rpm
Max. Gradeability
30°
Ground specific pressure
32.8kgf/cm2
Track material
Rubber
Type of track tension device
screw adjustment
Hydraulic and liquid capacity
Pump type
Gear pump
Working pressure
16Mpa
Flow rate
18L/min
Hydraulic oil tank capacity
15L
Engine fuel tank
1.8L
capacity
Fuel tank capacity
11L
A
Max. Digging radius on ground
2500 mm
B
Max. Digging radius
2900mm
C
Max. Digging depth
1700 mm
D
Max. Digging height
2600 mm
E
Max. Dumping height
1800 mm
F
Max. Vertical digging depth
1600 mm
G
Min. Rotation radius
1250 mm
H
Max. Upgrade height of bulldozer blade
325 mm
I
Max. Digging depth of bulldozer blade
175 mm
Detail
Engine
·Durable engine for reliableoperation in harsh conditions.
.Flexible coupling absorbs shocks.
Oil supply
.Low oil levels trigger alarm system.
.Hydraulic tank breathing valvewith pressure compensation.
Running System
·Travel motor with 3 hoses
·Pressure relief valve to ensureoptimal performance andlongevity.
Direction Control Valve
.Directing flow between system parts.
.Correct installation is essential.
Excavator Boom
.Crucial for moving and diggingmaterials
.Dramatically boosted efficiency
Bucket cylinder
·Help move and adjust positionwhile digging.
·Flexible manipulation.
