Description

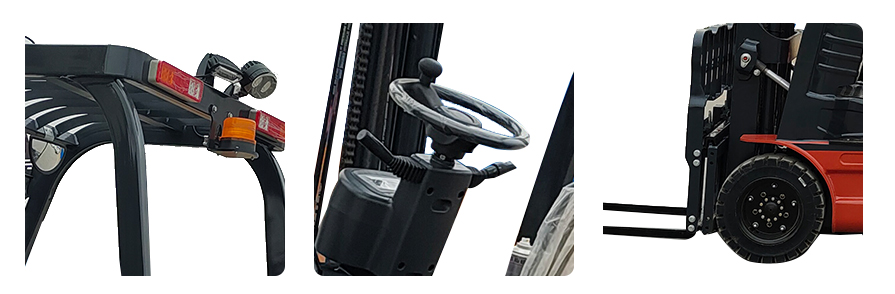

THE STEERING OIL TUBE AND WIRE HARNESS ARE ARRANGED INDEPENDENTLY
PRODUCT FEATURE
(1)Environment Friendliness
Zero emission ;Low noise;Free of heavy metals;No corrosion ;No acid mist volatilization .
(2)Maintenance Free
Unnecessary of fluid adding and dust proofing;Daily maintenance free ;Manual maintenance free .
(3)Long Service Life
Over 75% capacity reserved after 4000 shifts operation ;Longer service life than lean-acid battery in equal working condition ;5 years or ten thousand hours quality guarantee for high performance.
(4)High Efficiency and Energy Saving
2 hours charging meet 6-8 hours working demand ;High-energy density, self discharging rate lower than 1% per month, ;95% energy conversion rate,superior charging and discharging performance ;Flexible to charge，easy to operate，no impact on battery life;Unnecessary to change battery，cost saving.
(5)Suitable for working in both high and low environment
Lithium battery is better than lead-acid battery when working between -25℃and 55℃.
(6)High safety
According to the characteristics of industrial vehicles,it achieces safety protection design which includes lithium battery materials,battery core type,pack technique and system power management;“Multiple node safety closed circuit protection” realizing truck real time closed circuit protection in variable conditions ;“ lock affirming” function during charging avoiding “hot connecting and disconnecting” operation effectively ;“whole system emergency button” to disconnect the truck control system and BMS power quickly ensuring truck safety
THE MAIN PARAMETER

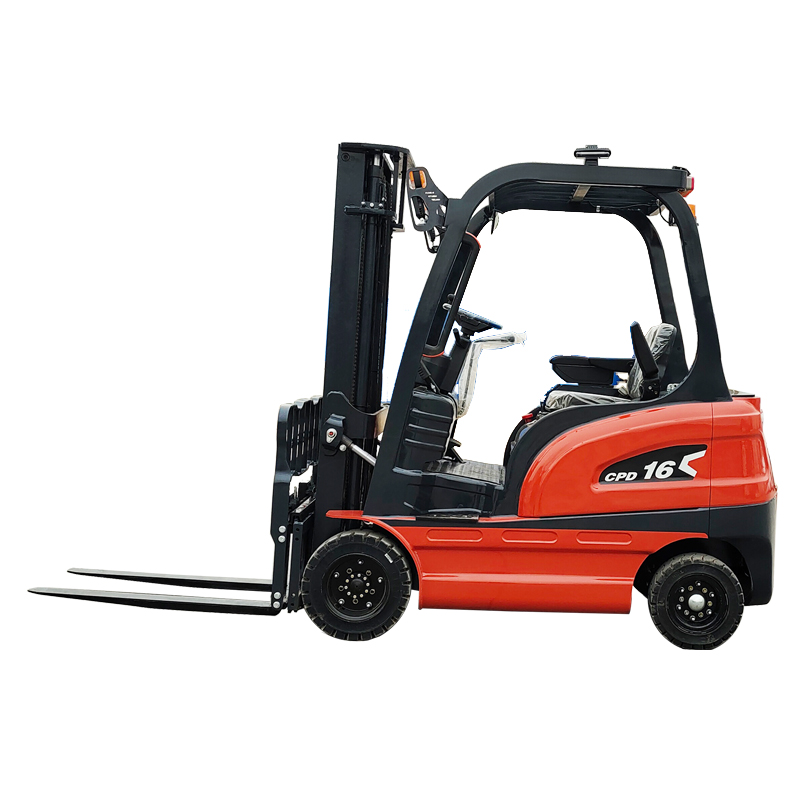

| Model | CPD16 | Fork size | 40X100X1070mm |
| load capacity | 1600kg | Min ground clearance | 110mm |
| wheel base | 1500mm | turning radius | 1860mm |
| Weight unladen (including battery) | 2200kg | Walking speed, full load/without load | 10/12km/h |
| Driving wheel size (diameter x width) | 18x7-10mm | Lifting speed, full load/without load | 0.24/0.3m/s |
| Steering wheel size (diameter x width) | 500-8mm | Declining speed, full load/without load | 0.4/ 0.36m/s |
| The height of the mast after lowering | 2130mm | Max degree of climbing，full load/without load | 14/15% |
| Height of the top guard (carbin) | 2050mm | Rated power of drive motor S2 60minute | 5kW |
| Overall length | 2150mm | Rated power of lifting motor S3 15% | 5kW |
| Overall width | 1100mm | Battery voltage | 48V260Ah |
